Connector Assignment (ABS 5.7)
Connector Assignment (ABS 5.7)

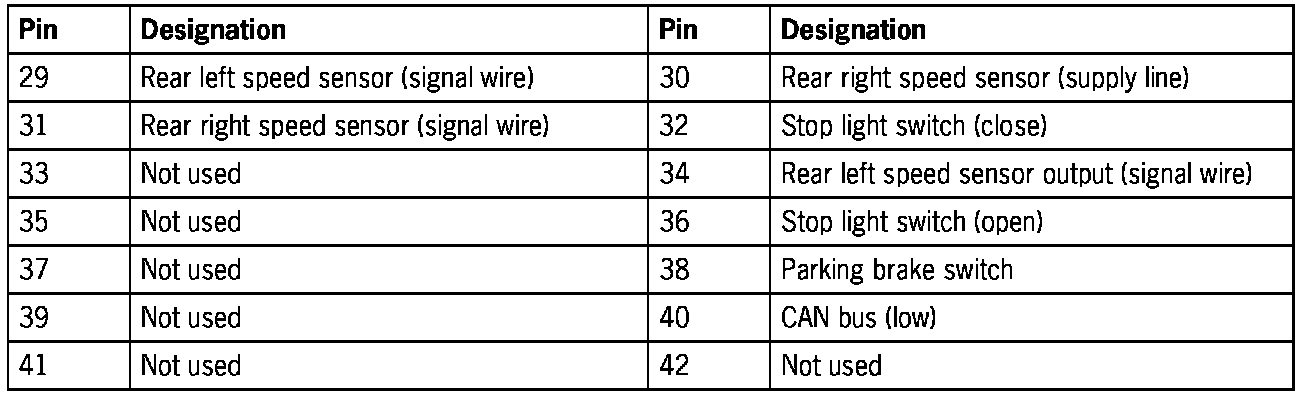

Connector assignment
ABS control unit wiring harness plug
Part 1:
Part 2:
