Removal and Replacement

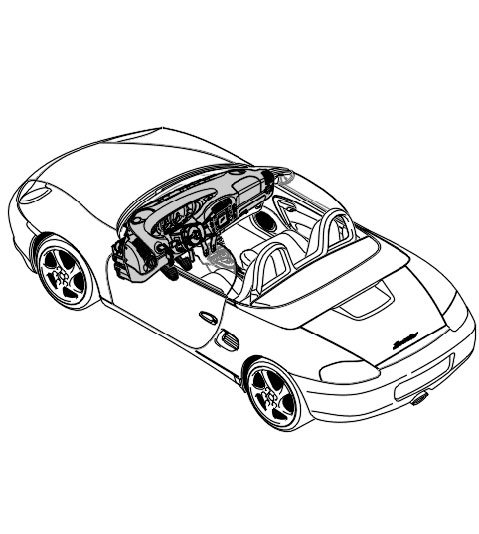

Removing And Installing The Instrument Panel And Instrument Panel Bracket - As Of Model Year 2003

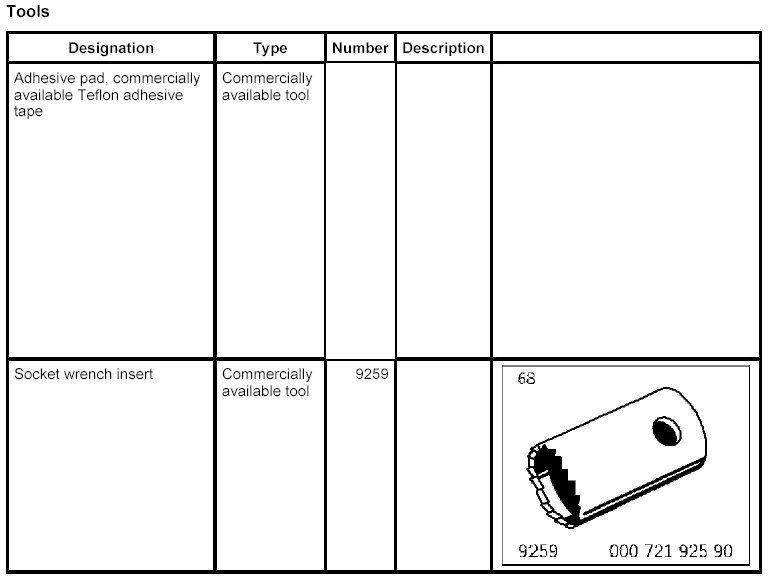

Tools

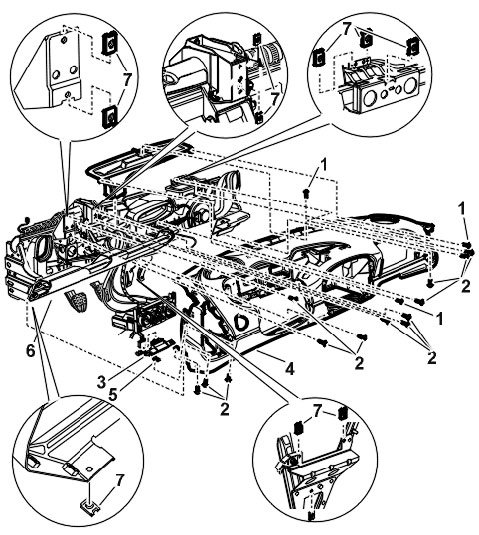

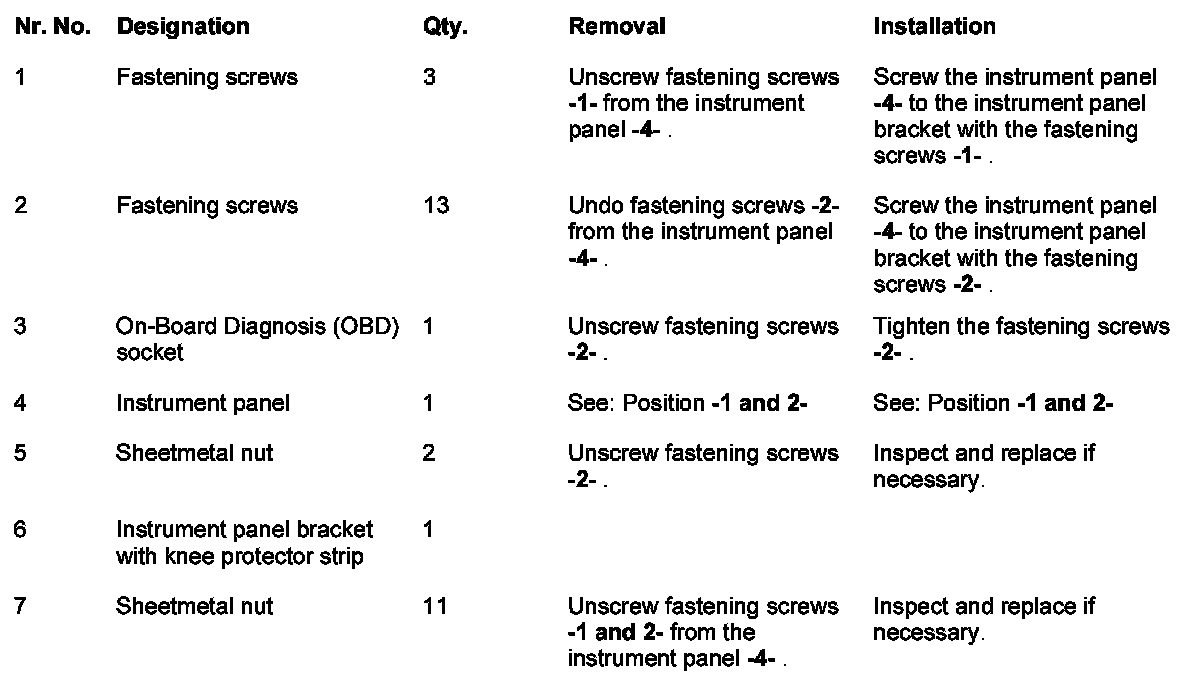

Removing and installing the instrument panel







INFORMATION: Before removing the instrument panel, the instrument panel must be disassembled. Refer to Disassembling and assembling the instrument panel.

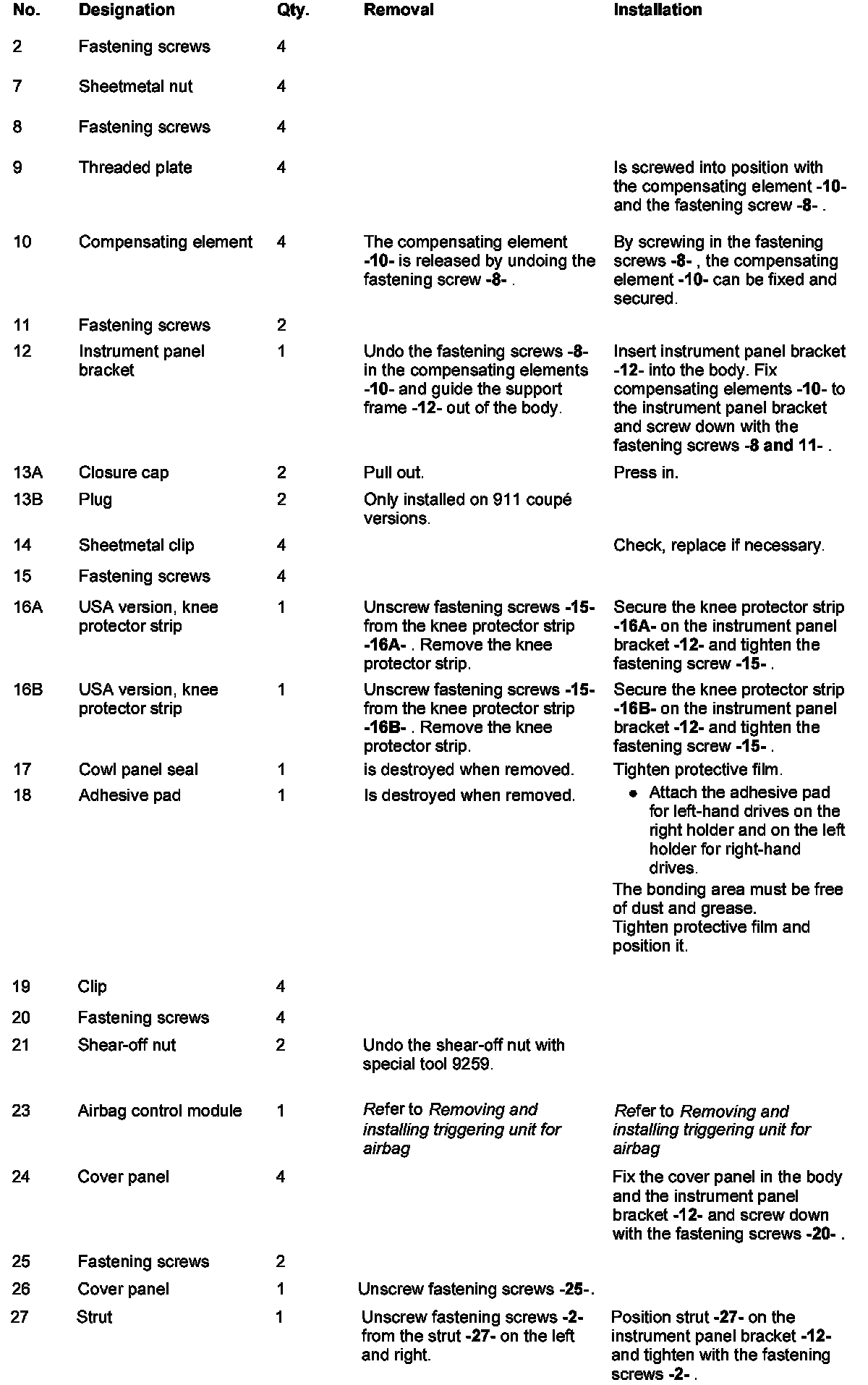

Removing and installing the instrument panel bracket







INFORMATION: Before removing the instrument panel bracket, the instrument panel must be disassembled. Removing and installing the instrument panel bracket







Tightening torque

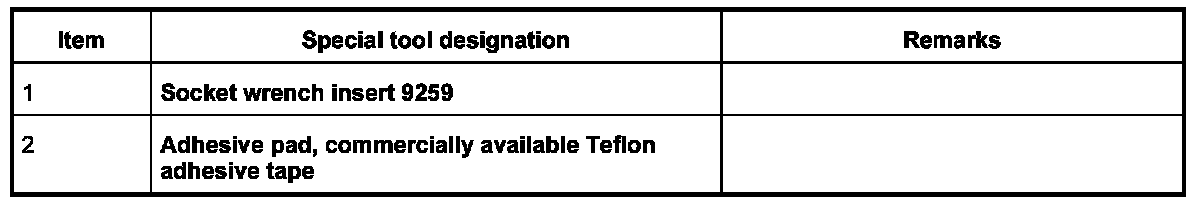

Tools and materials

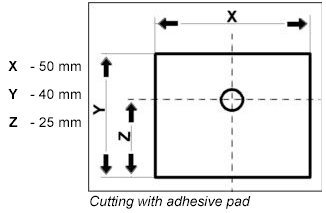

- Punch out the crack -Z- at a diameter of 7 mm
