Reversing Camera - Sheet 20A

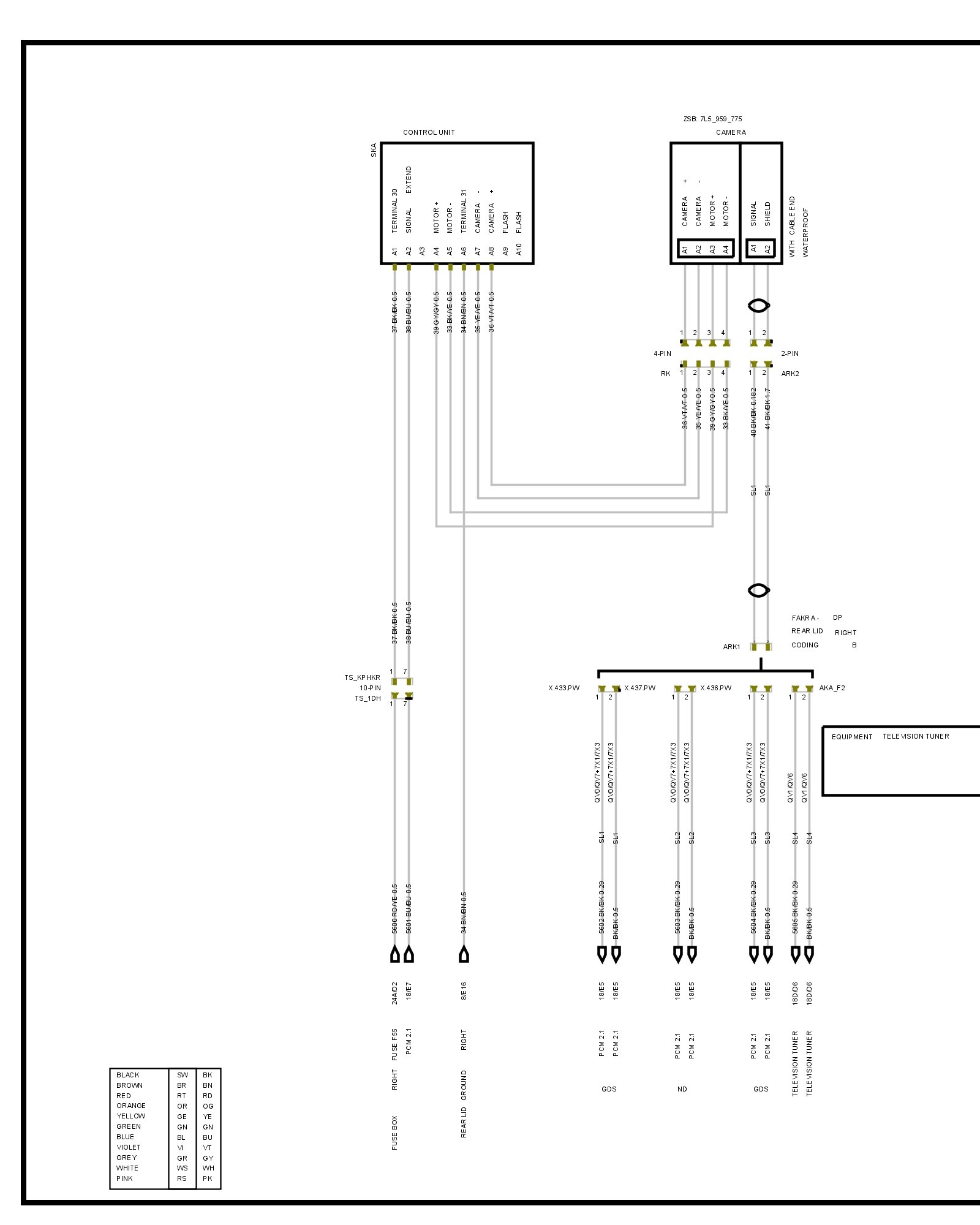

Reversing Camera - Sheet 20A (Part 1):

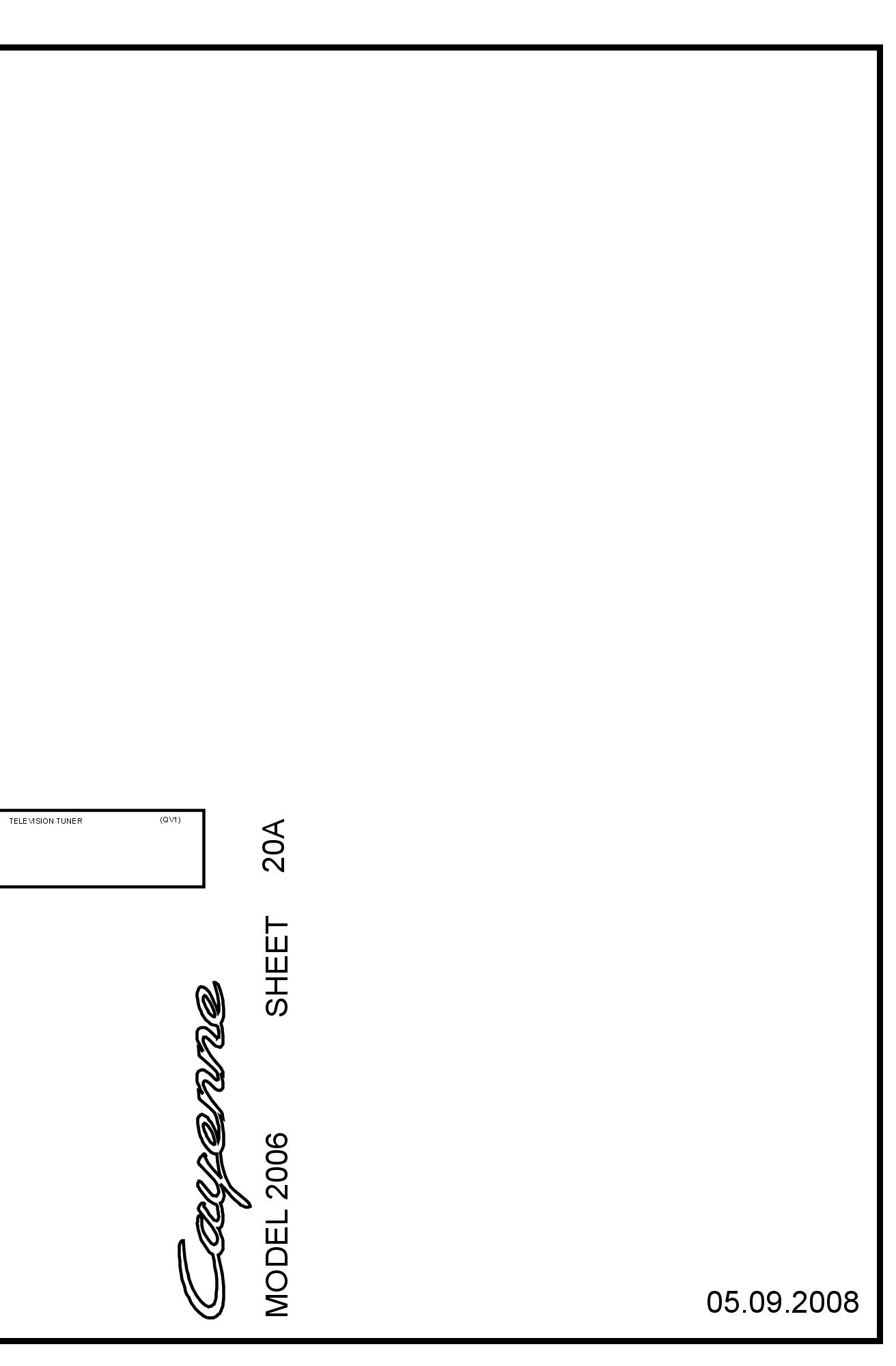

Reversing Camera - Sheet 20A (Part 2):
