A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Manufacturer Codes
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster
Instrument Cluster
Fault overview
Instrument cluster

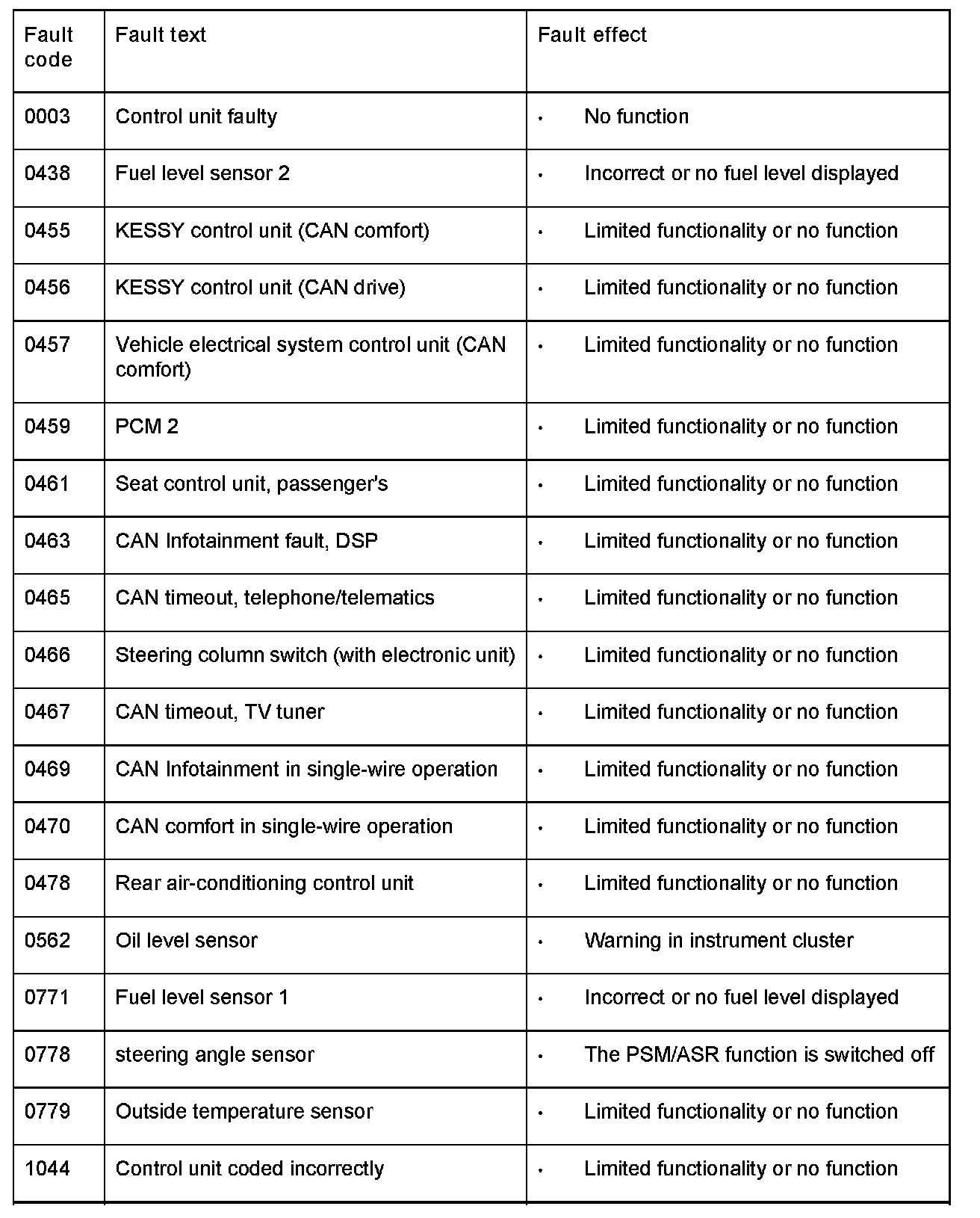

Fault Code 0003 - 1044:

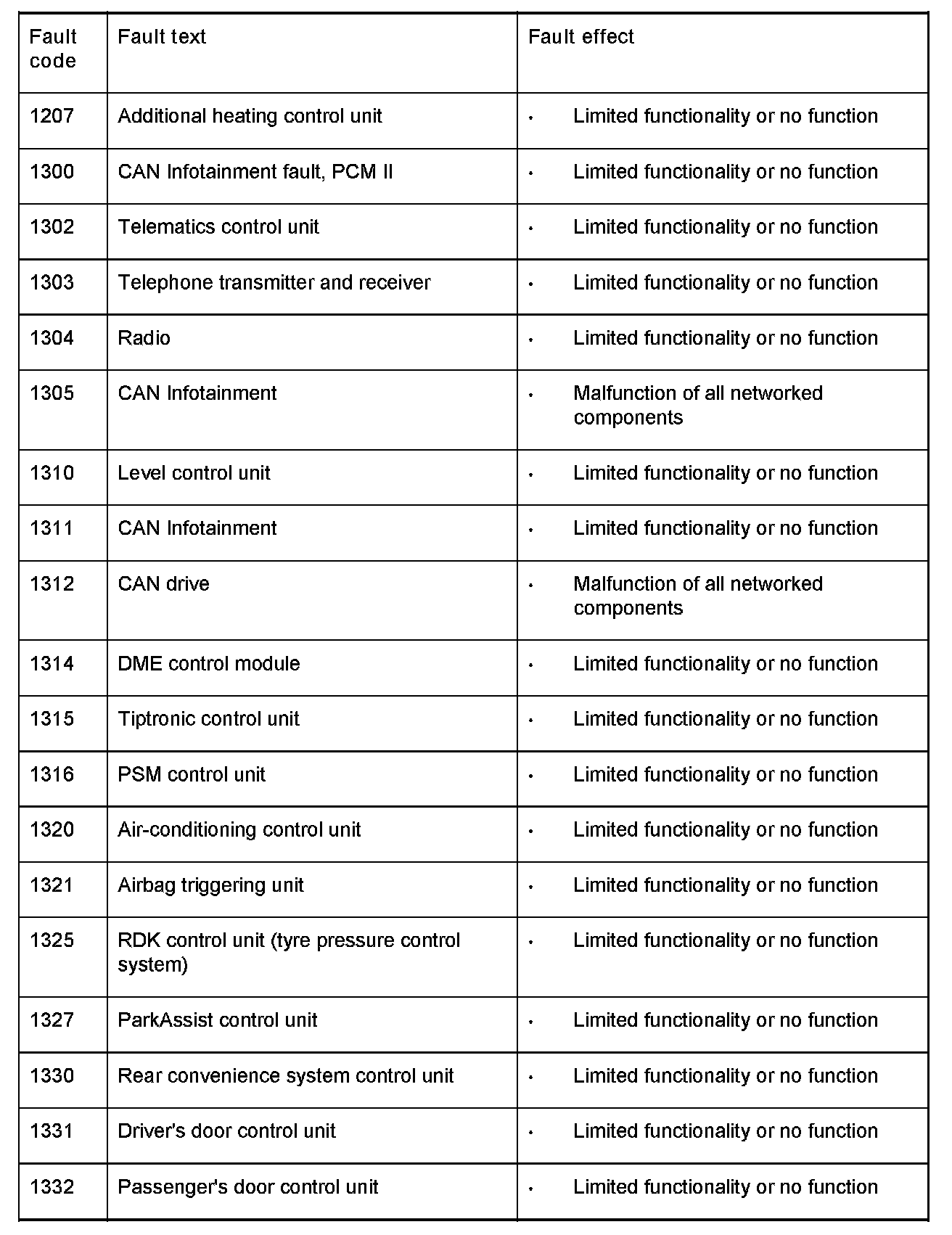

Fault Code 1207 - 1332:

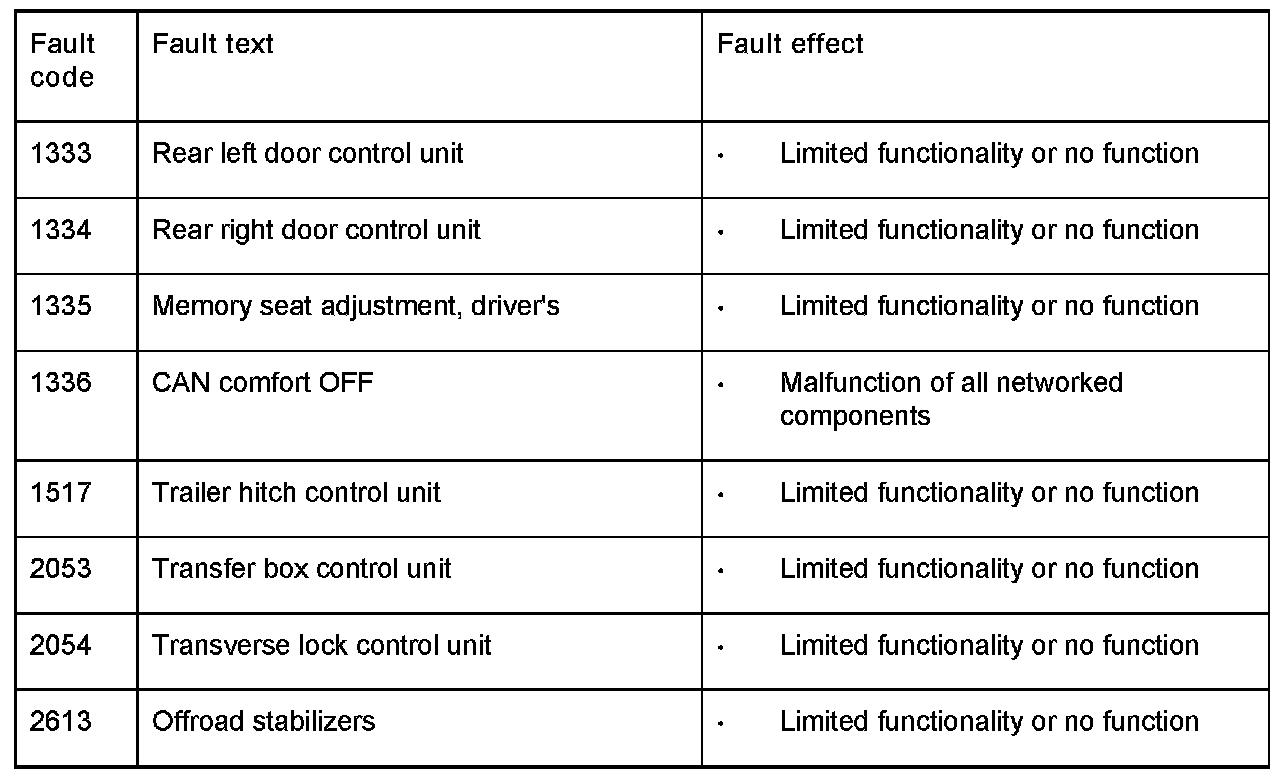

Fault Code 1333 - 2613:
