Differential Assembly

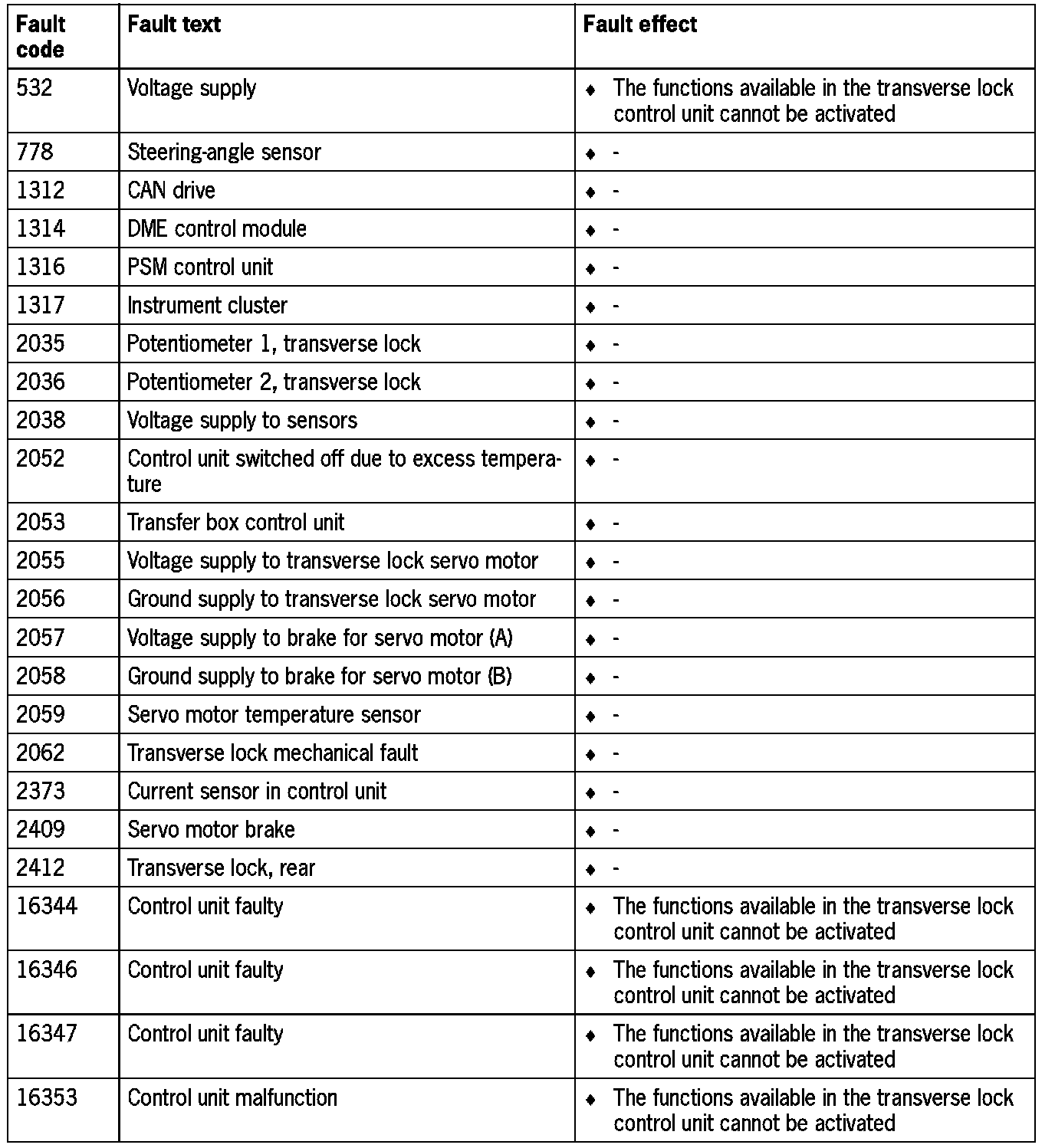

Fault Overview - Transverse Lock Control Unit

Fault Overview - Transverse Lock Control Unit:

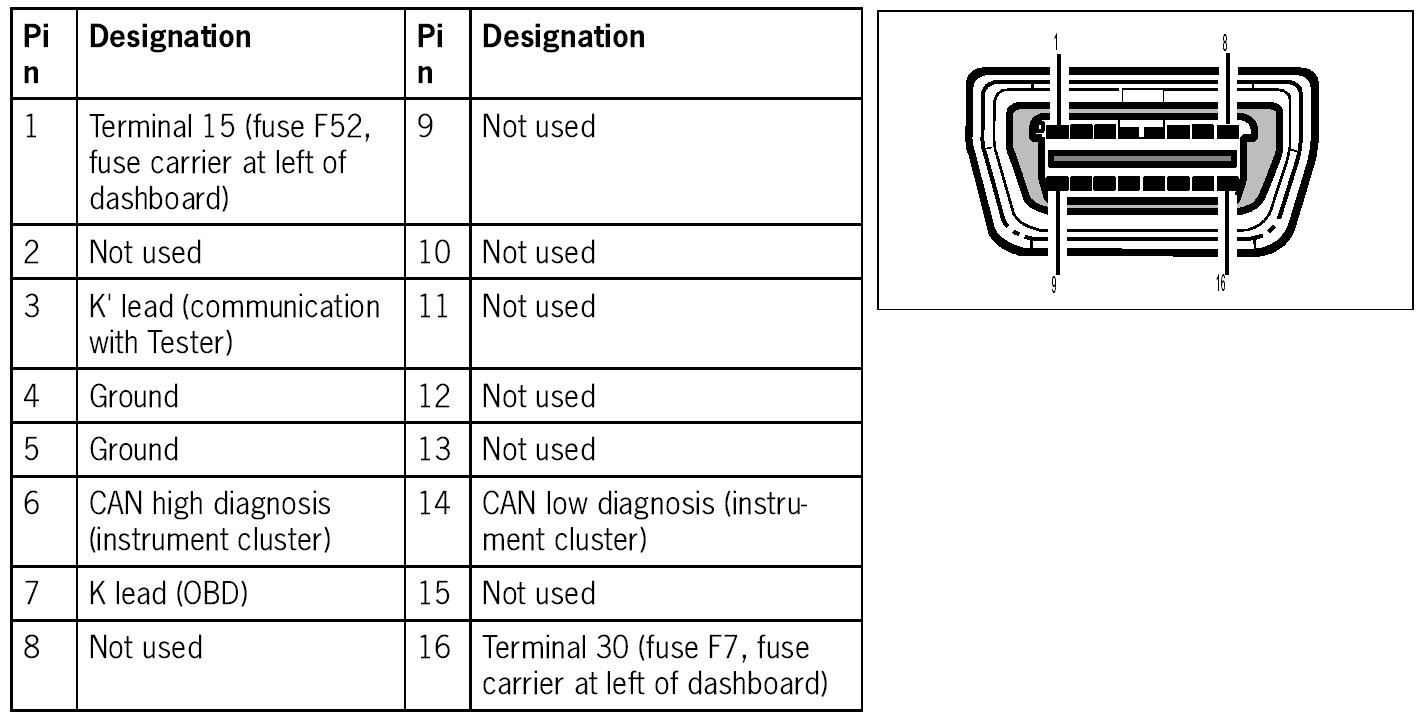

Diagnostic Box In Driver's Footwell

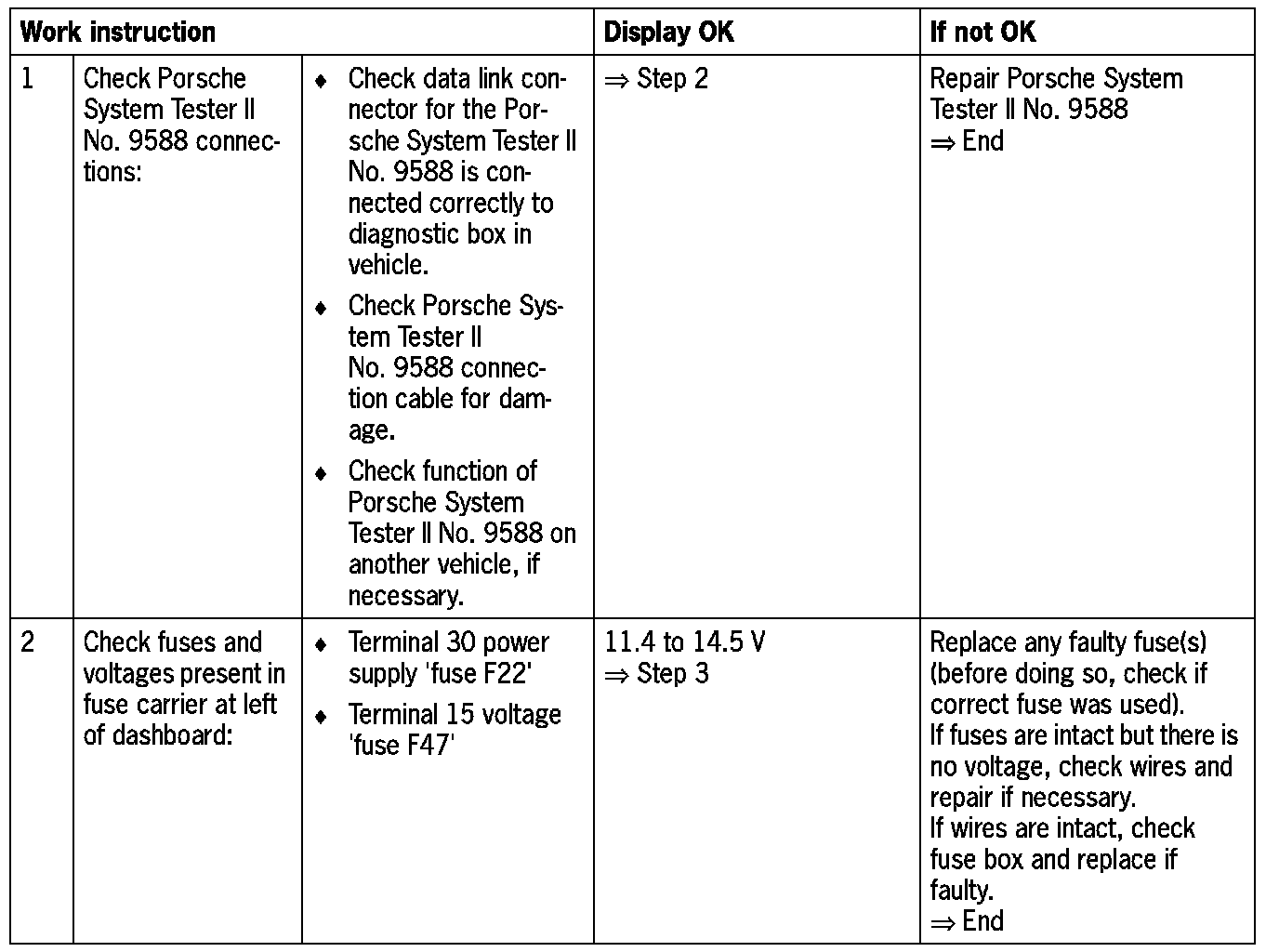

Diagnosis/Troubleshooting


Part 1:

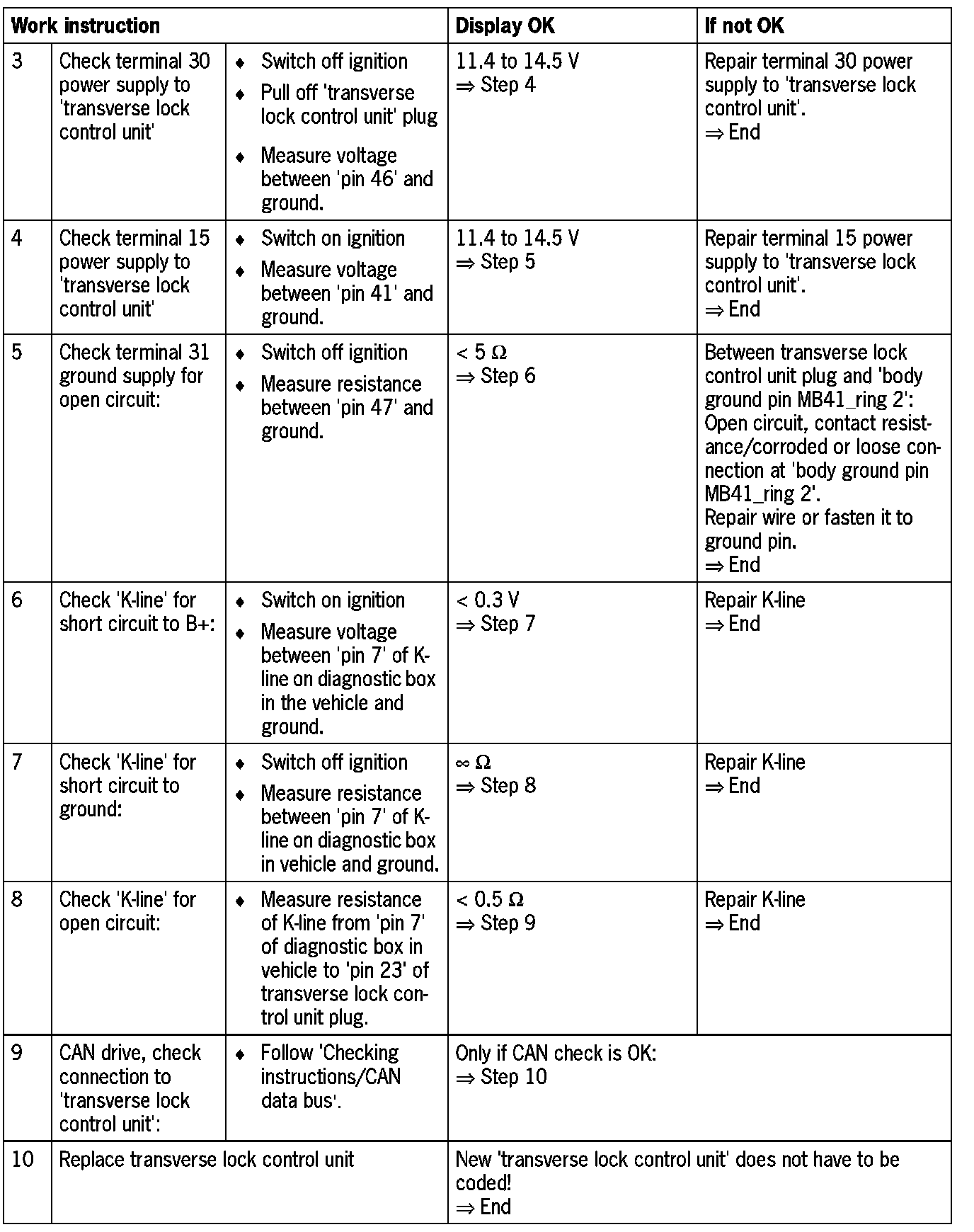

Part 2:
