Transmission Control Systems

Fault Overview Of Porsche Fault Codes
The text shown in brackets is not displayed when reading out faults using the Porsche System Tester II 9588. These fault codes are standardised worldwide in the OBD II/EOBD and are read out using Scan Tool (the standard read-out tester throughout the world). In the Porsche System Tester II 9588, this function is supported under Special functions, menu item CARB (ISO).

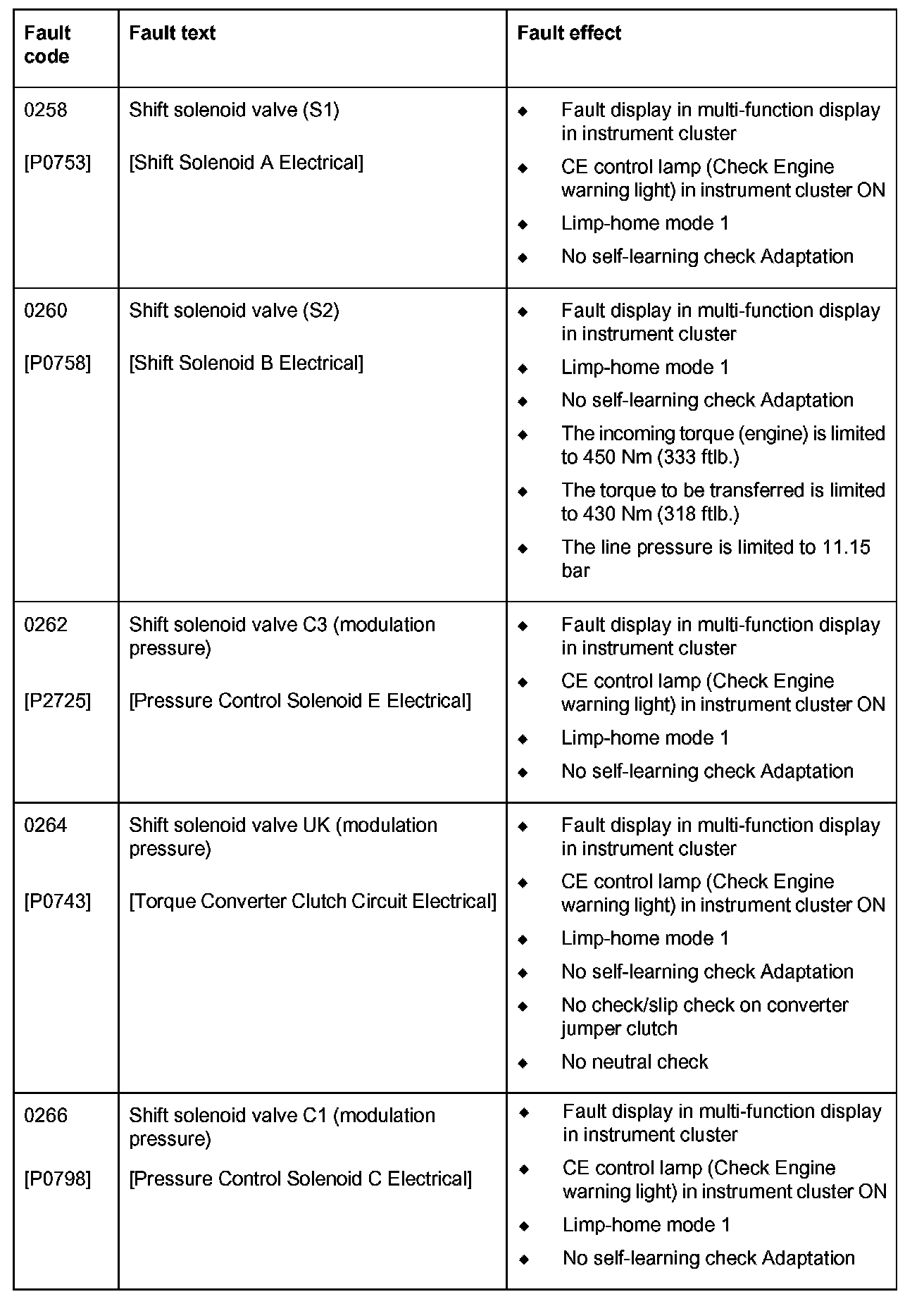

Fault Code 0258 - 0266:

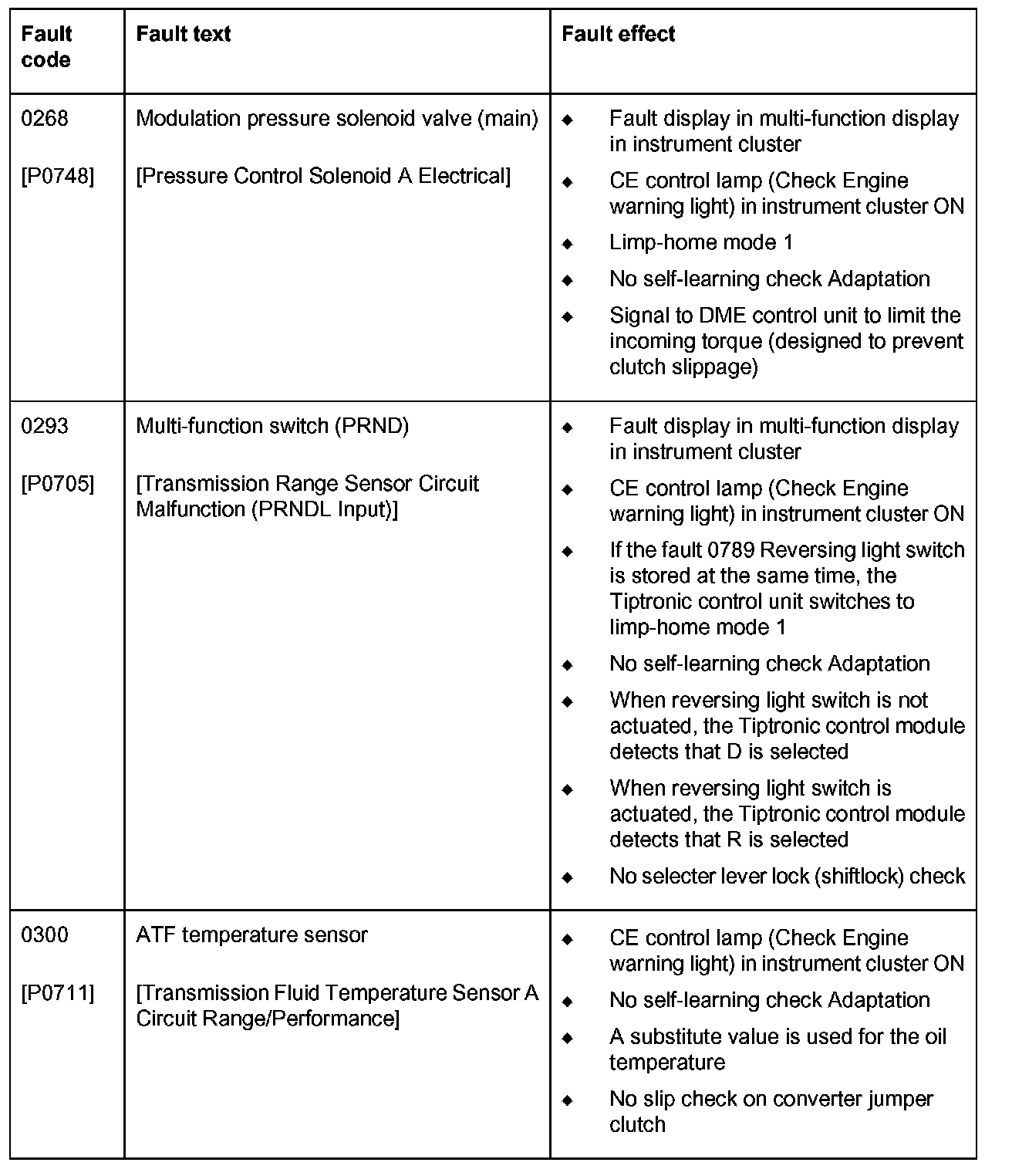

Fault Code 0268 - 0300:

Fault Code 0300 - 0349:

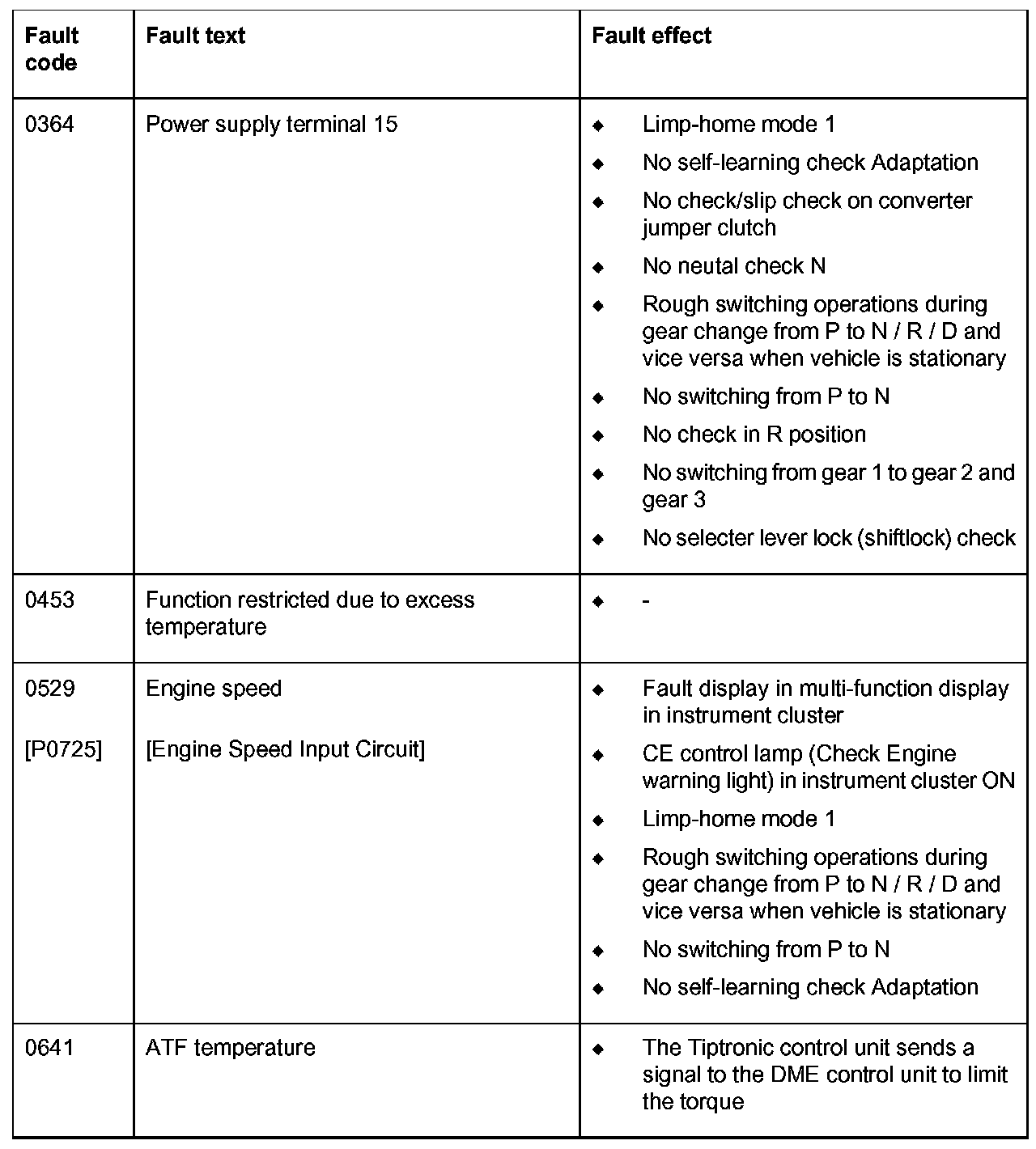

Fault Code 0364 - 0641:

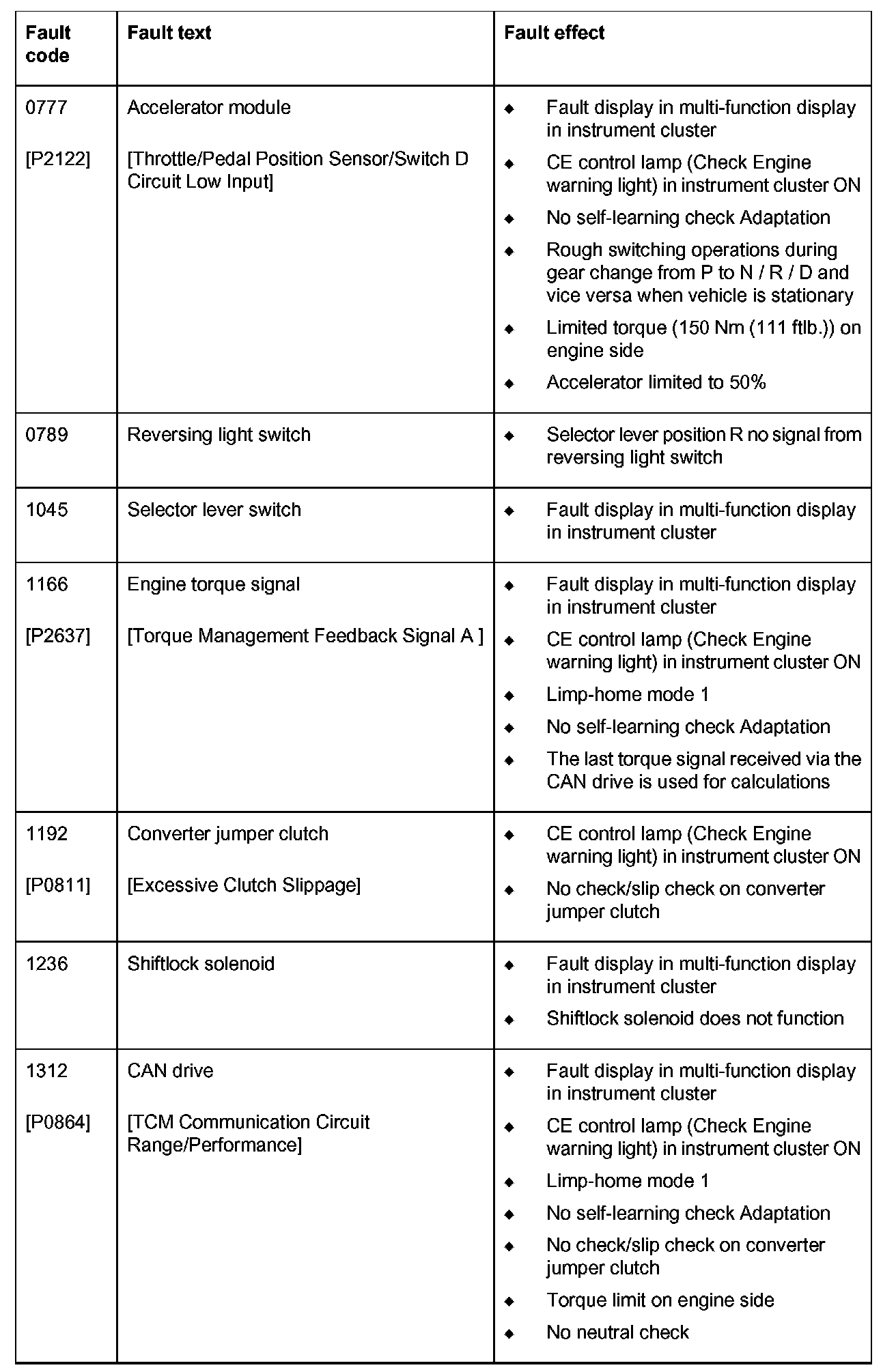

Fault Code 0777 - 1312:

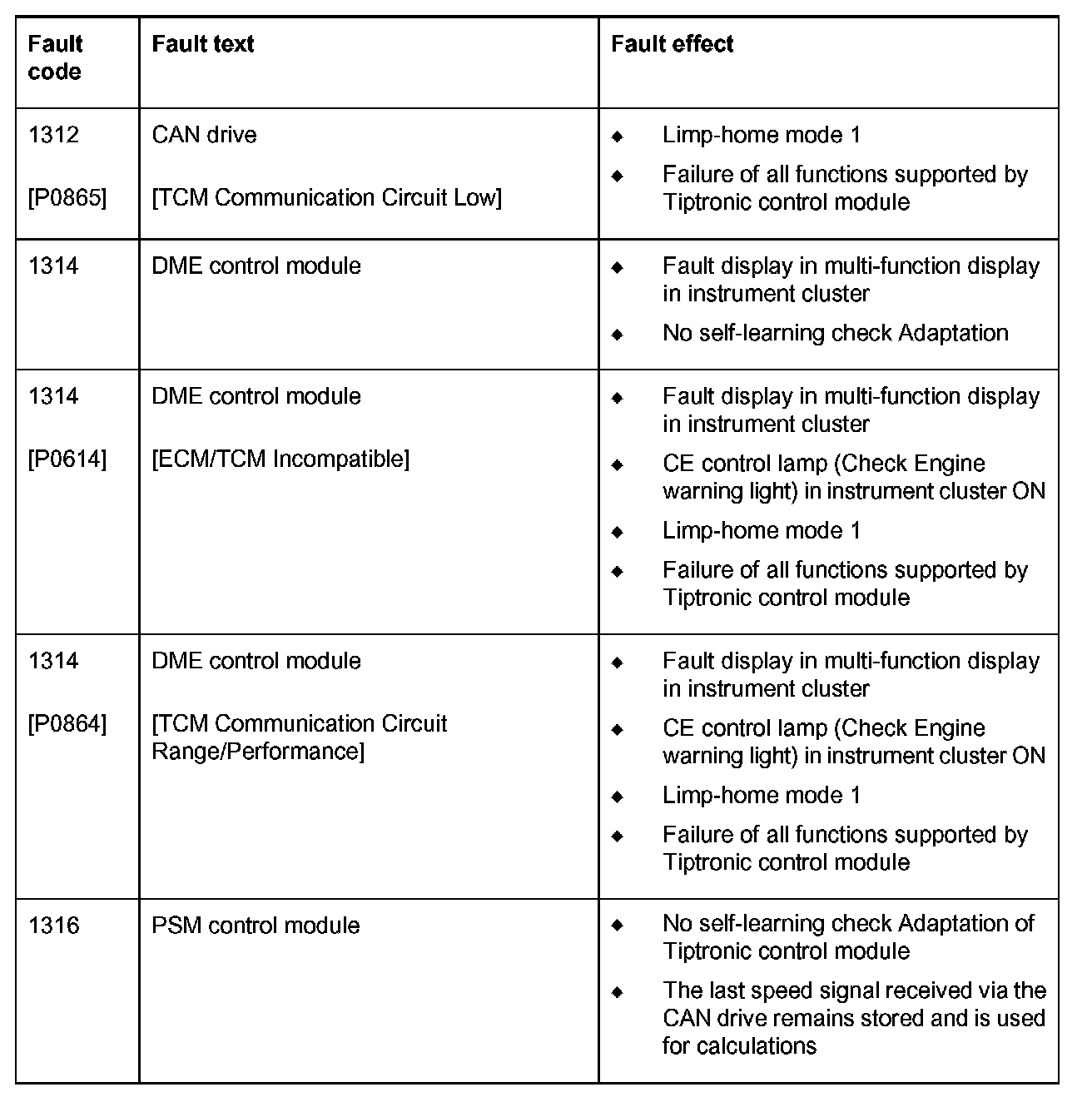

Fault Code 1312 - 1316:

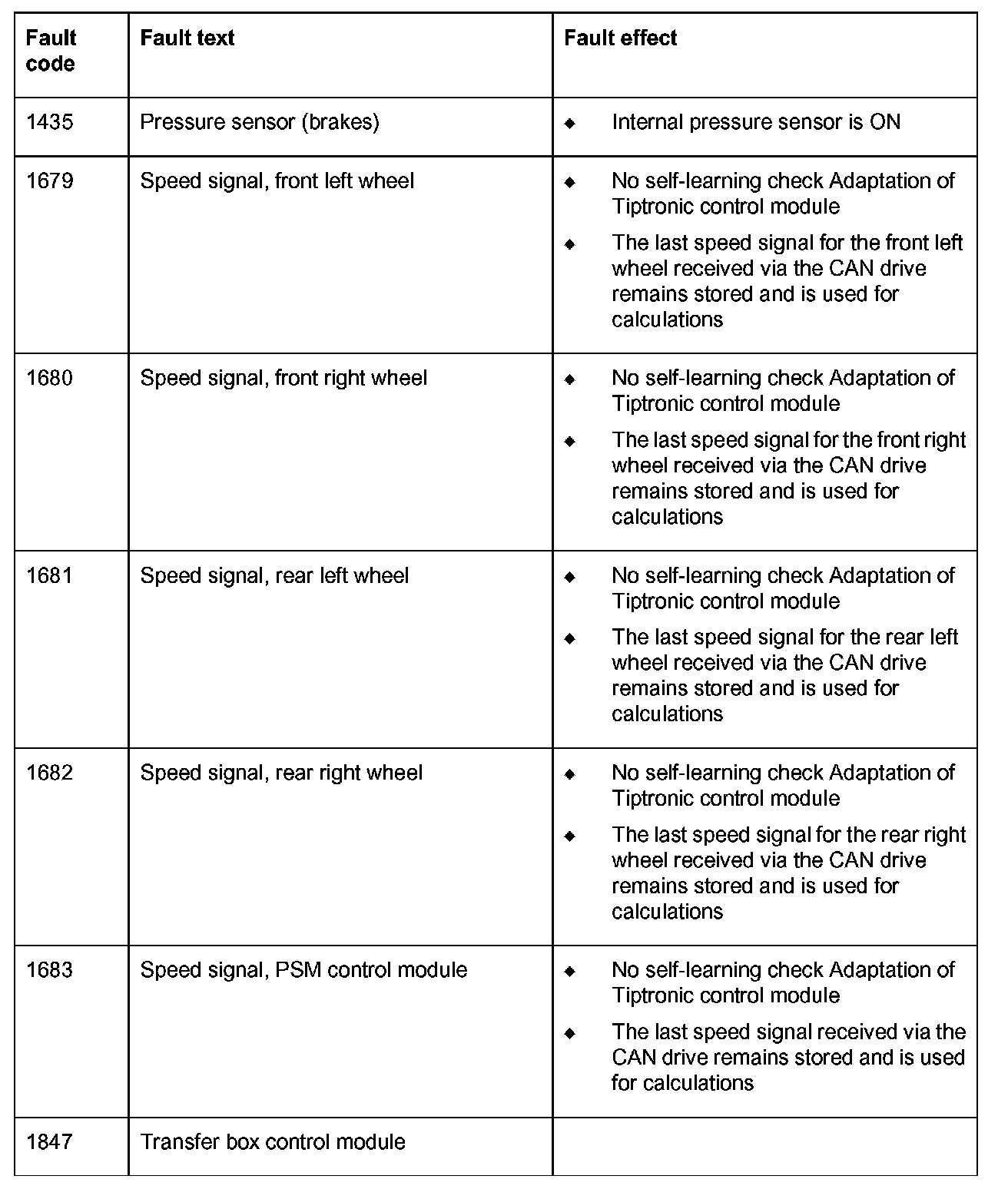

Fault Code 1435 - 1847:

Fault Code 1871 - 2053:
