CDR23: 8001
8001 CDR23Voltage supply
Diagnostic conditions
- Ignition on
- Engine running
- CDR23 ON
NOTE: The fault memory status (present / not present) is always updated when the motor is running.
Possible cause of fault
- Battery voltage too low 'less than 9 V for greater than 30 sec'
- Battery voltage too high '> 16 V for > 30 sec'
- Check fuses
- Check battery
- Check regulator of generator
- Check the generator
Affected pins

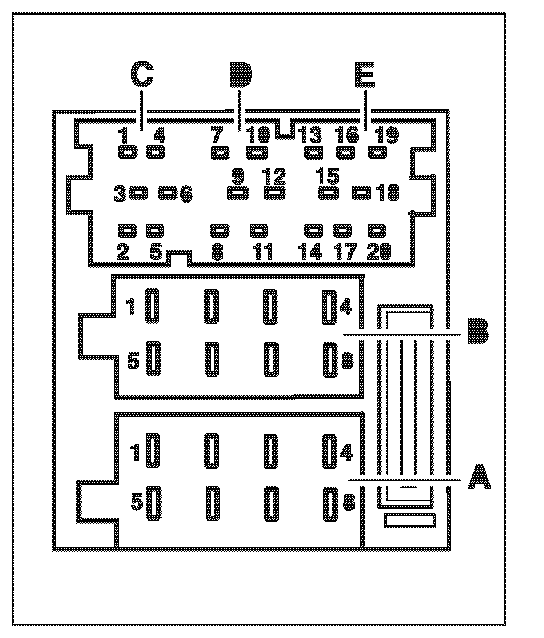

Radio plug A, pin 4, pin 8

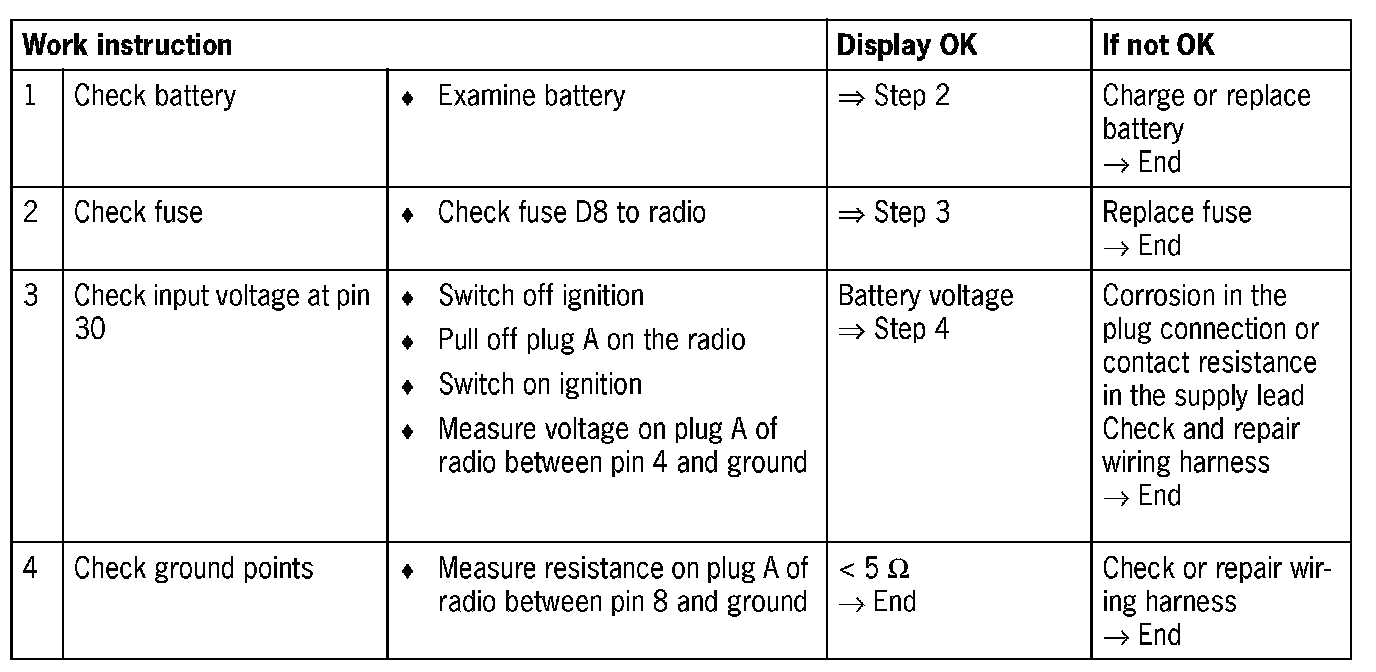

Diagnosis/troubleshooting
