CDR23: 8005
8005 - CDR23Instrument cluster - no communication
Diagnostic conditions
- Ignition on
- CDR23 on
Possible cause of fault
- Open circuit in CAN Infotainment (high)
- Open circuit in CAN Infotainment (low)
NOTE:
- CAN Infotainment is connected to the following control modules:
- CDR23
- Instrument cluster
- Wiper control module
- Magnetic field sensor control module
Affected pins

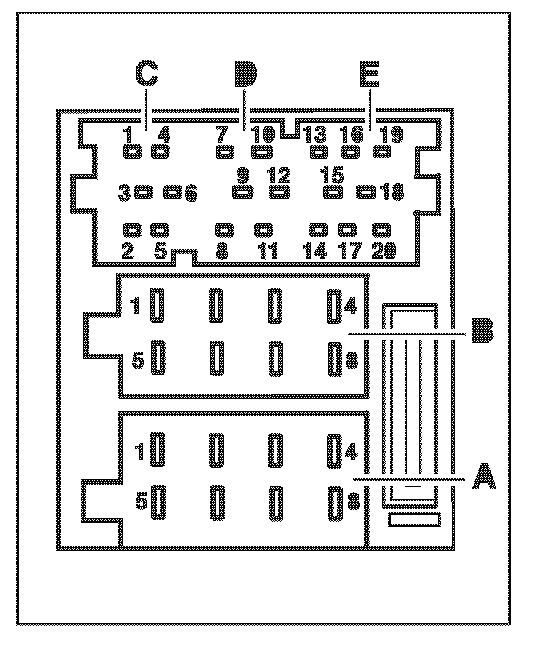

CDR23 control module, plug C, pins 1 and 2

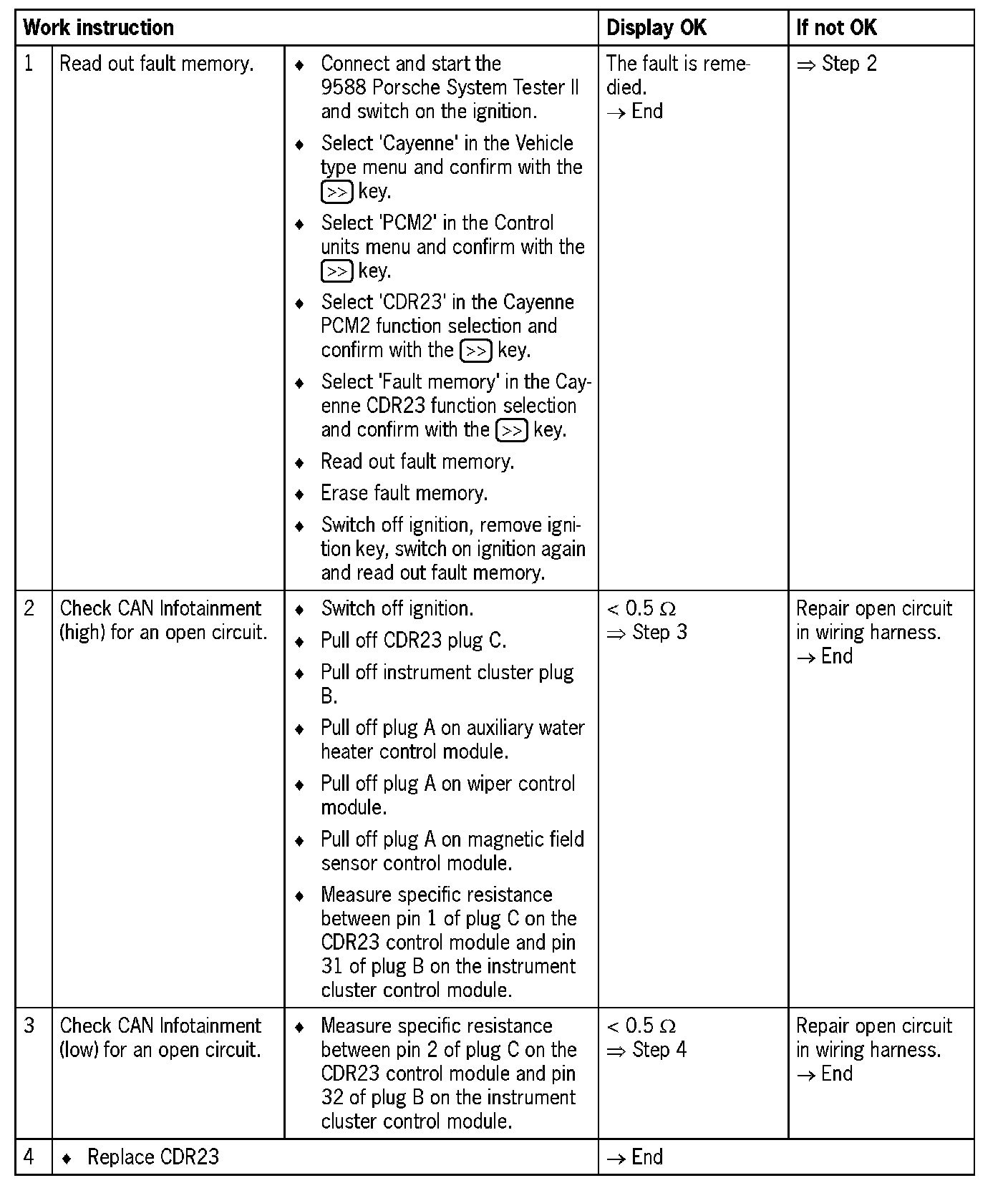

Diagnosis/troubleshooting
