CDR23: 8013
8013 CDR23Operating buttons are jammed
Diagnostic conditions
- Ignition on
- CDR23 ON
- Manual actuation
NOTE: Fault code 8013 is recorded if the operating buttons are actuated for longer than '≥ 1 minute'.
Possible cause of fault
- Holding down the operating buttons for too long
- Buttons are soiled
- Internal short circuit
Affected pins
-

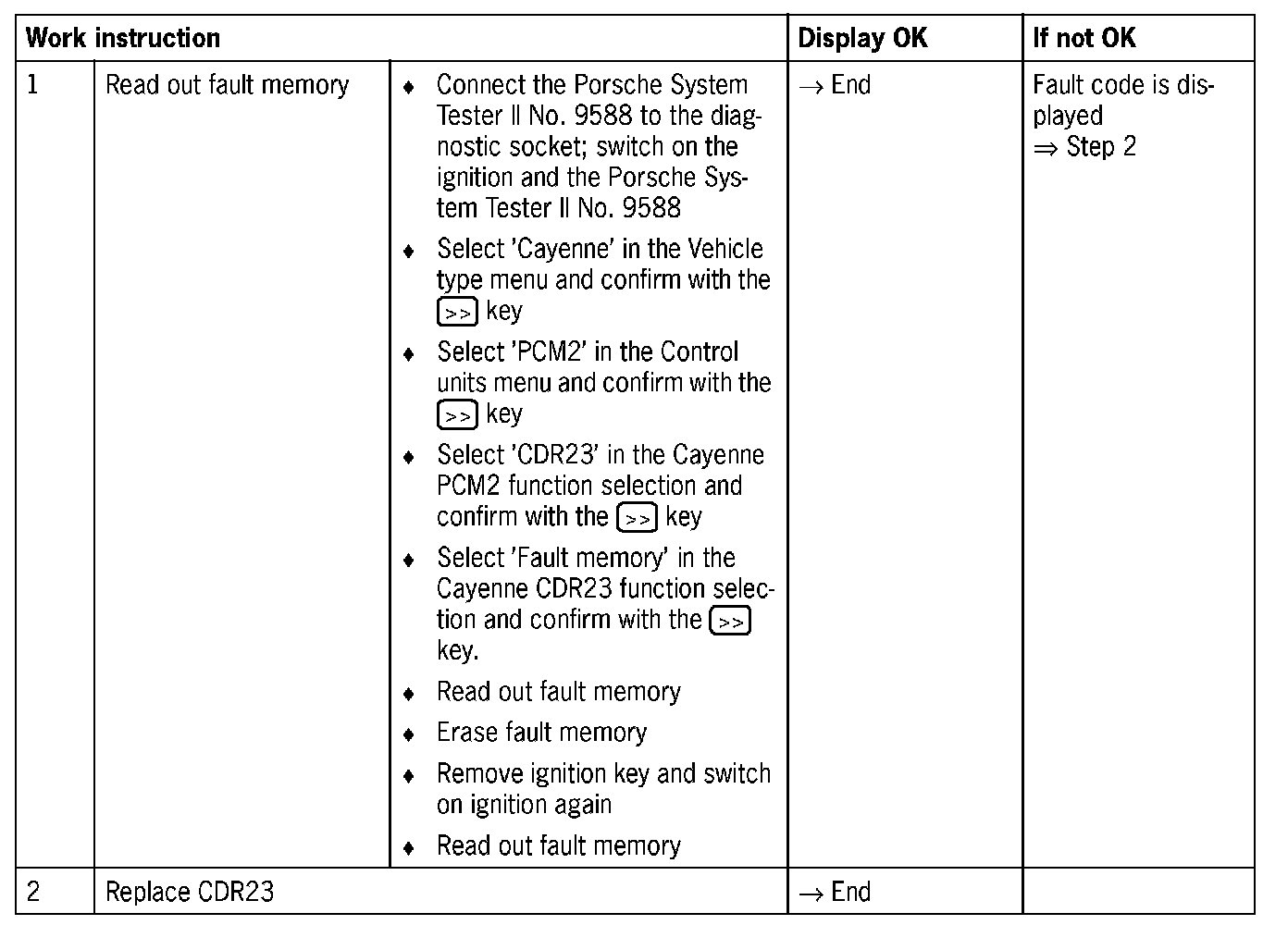

Diagnosis/troubleshooting
