CDR23: 8014

8014 CDR23

Single CD drive overheating

Diagnostic conditions
- Ignition on
- CDR23 ON

NOTE: Fault code 8013 is recorded if the operating buttons are actuated for longer than '≥ 1 minute'.

Possible cause of fault
- Temperature sensor in CDR23 (FOT) faulty
- CDR23 faulty

Affected pins
-

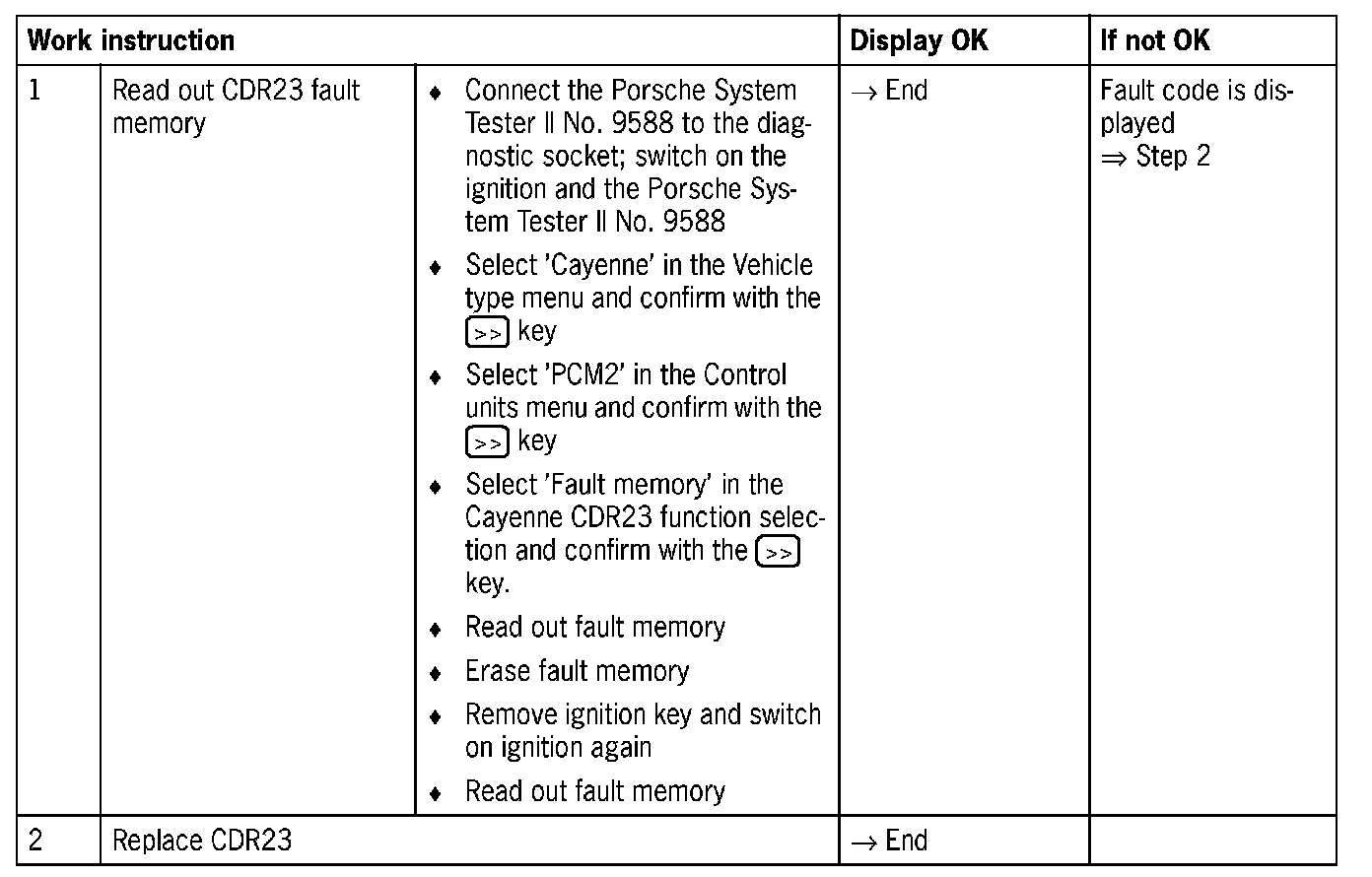

Diagnosis/troubleshooting
