CDR23: 8015
8015 CDR23Audio CD cannot be read
Diagnostic conditions
- Ignition on
- CDR23 ON
- CD inserted
NOTE: Fault code 8013 is recorded if the operating buttons are actuated for longer than '≥ 1 minute'.
Possible cause of fault
- Audio CD missing or damaged
- Audio CD inserted the wrong way round
Affected pins
-

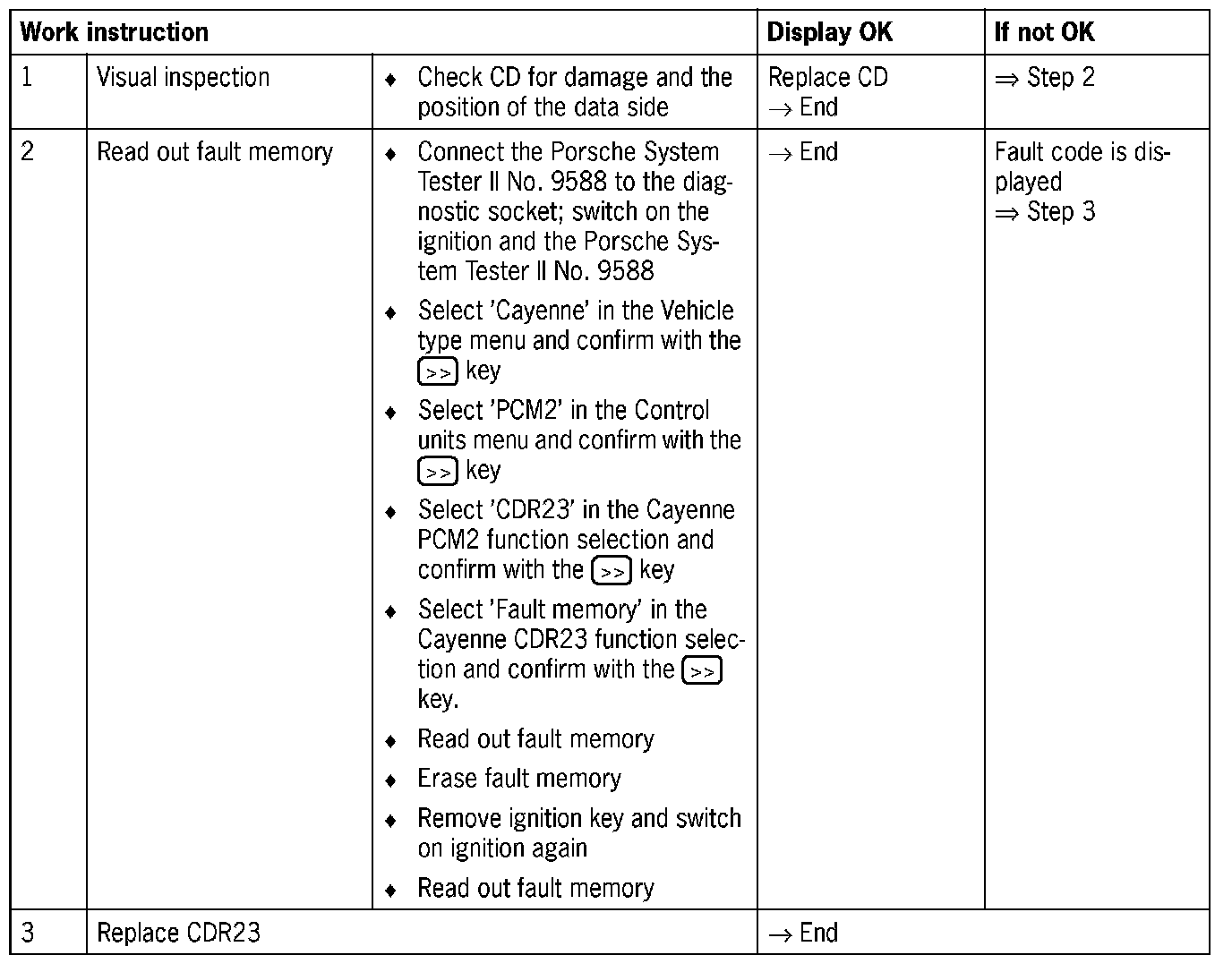

Diagnosis/troubleshooting
