CDR23: 8016

8016 CDR23

Control unit faulty

Diagnostic conditions
- Ignition on
- CDR23 ON

NOTE: Fault code 8013 is recorded if the operating buttons are actuated for longer than '≥ 1 minute'.

Possible cause of fault
- CDR23 faulty

Affected pins
-

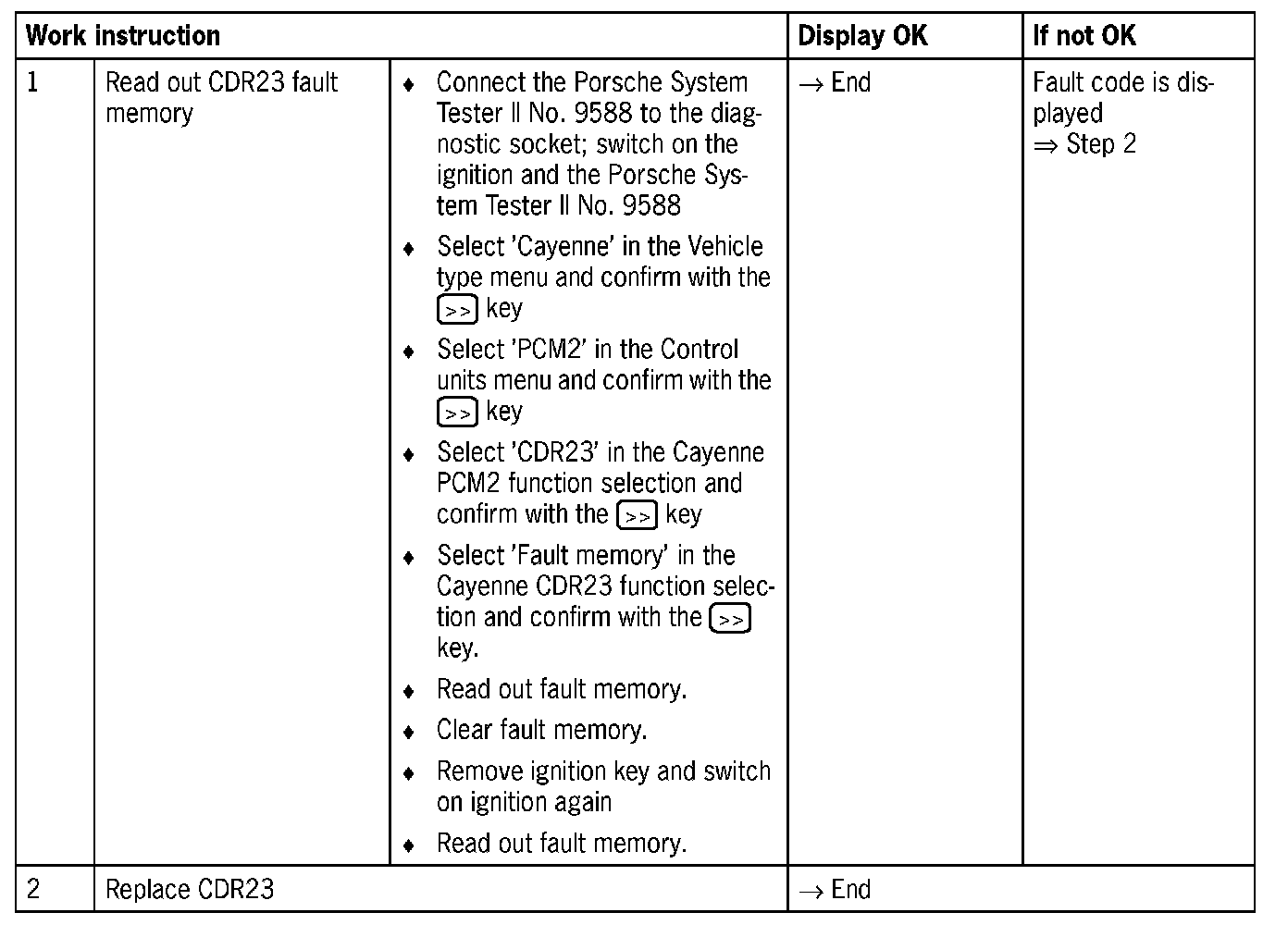

Diagnosis/troubleshooting
