External Harman Amplifier: 8001

8001 External Harman amplifier

Supply voltage

Diagnostic conditions
- Ignition on
- PCM2/CDR23 on

NOTE:
- The fault memory status (present/not present) is always updated when the engine is running.
- Fault code 8003 is recorded in the PCM2 MMI if the operating buttons are actuated for one or more minutes.

Possible cause of fault
- Battery positive voltage too low 'less than 9 V for greater than 30 sec'
- Battery positive voltage too high ' > 16 V for > 30 sec'
- Check battery
- Check fuses

Affected pins
Amplifier control module, plug A, pins 9 and 10

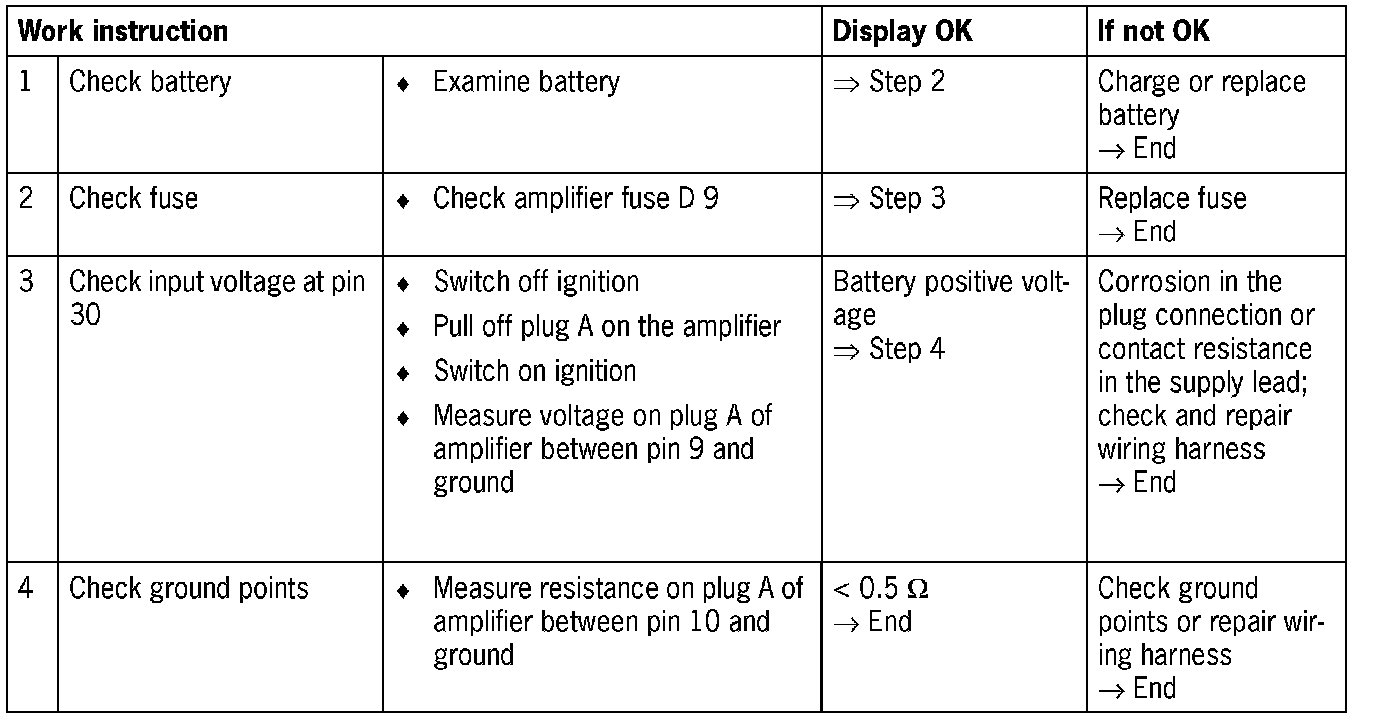

Diagnosis/troubleshooting
