External Harman Amplifier: 8003

8003 External Harman amplifier

Front loudspeaker channel faulty

Diagnostic conditions
- Ignition on
- PCM2/CDR23 on

NOTE: Fault code 8003 is recorded in the PCM2 MMI it the operating buttons are actuated for one or more minutes

Possible cause of fault
- Short circuit to B+/ground in the wiring harness
- Short circuit - loudspeaker faulty
- Short circuit - amplifier faulty


Affected pin
External Harman amplifier, plug A, pins 14 and 15

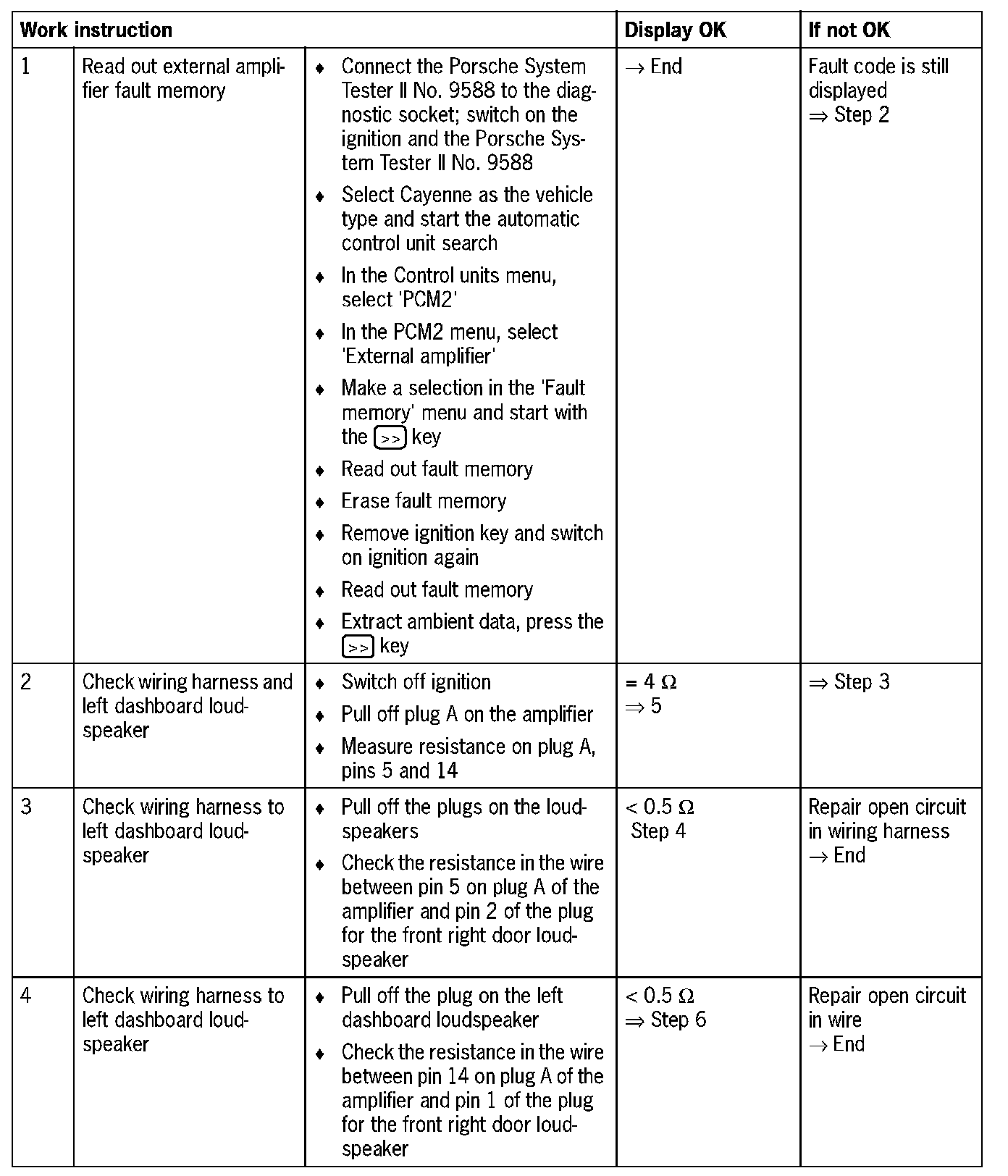

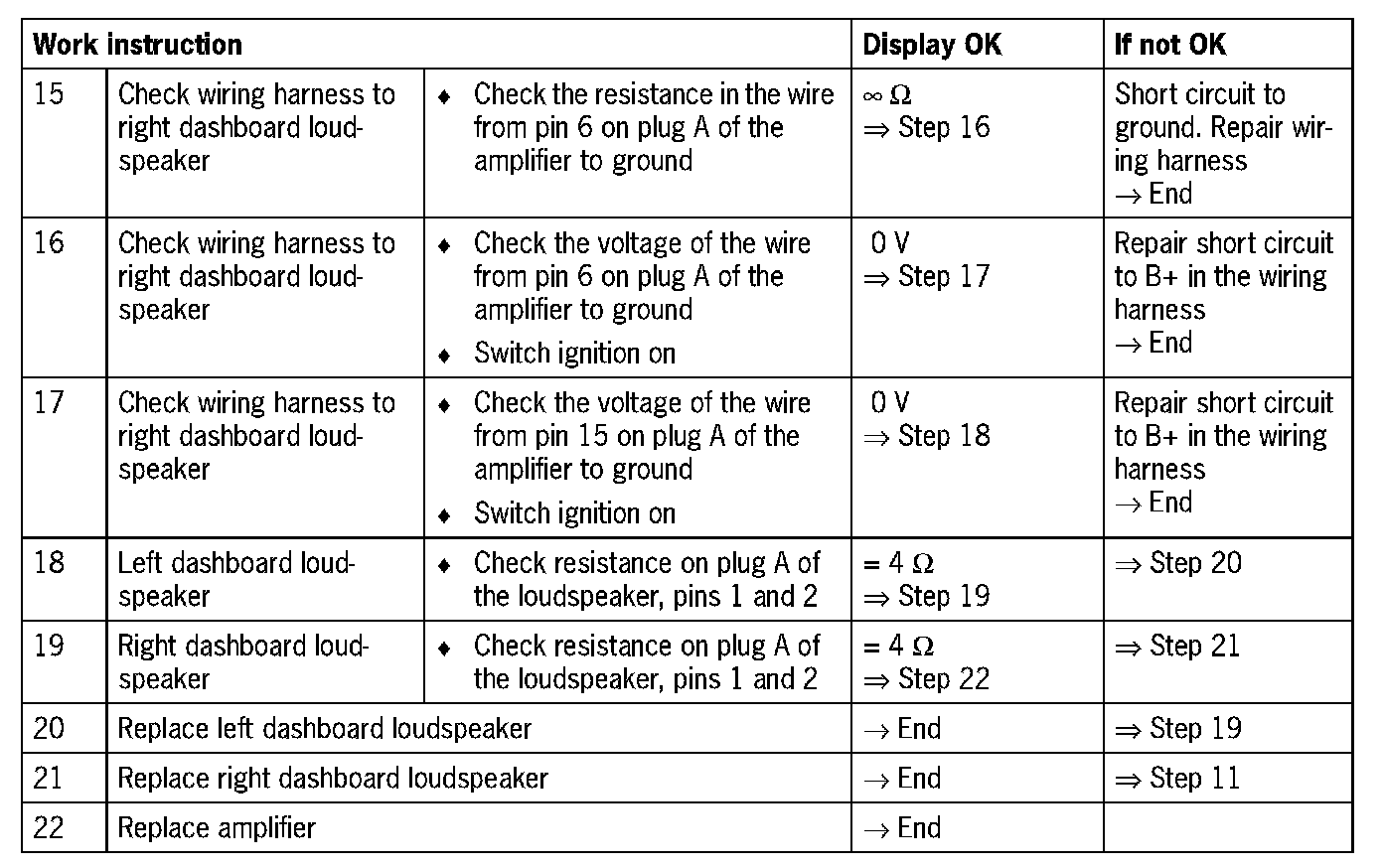

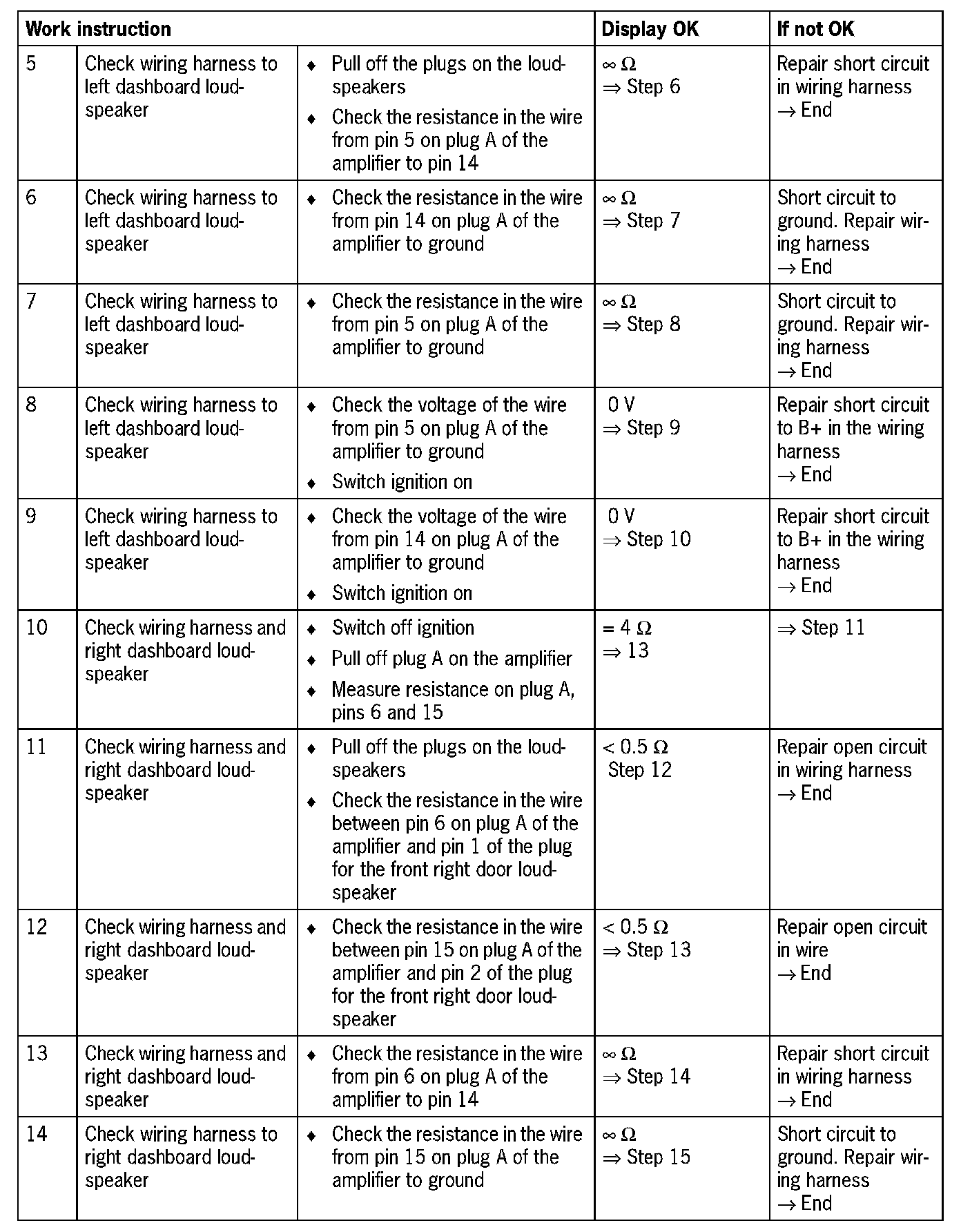

Diagnosis/troubleshooting for Harman
