External Harman Amplifier: 8006
8006 External Harman amplifierRight subwoofer channel faulty (right door speaker)
Diagnostic conditions
- Ignition on
- PCM2/CDR23 on
NOTE: Fault code 8003 is recorded in the PCM2 MMI it the operating buttons are actuated for one or more minutes
Possible cause of fault
- Short circuit to B+/ground in the wiring harness
- Short circuit - loudspeaker faulty
- Short circuit - amplifier faulty
Affected pin
External Harman amplifier, plug A, pins 8 and 17

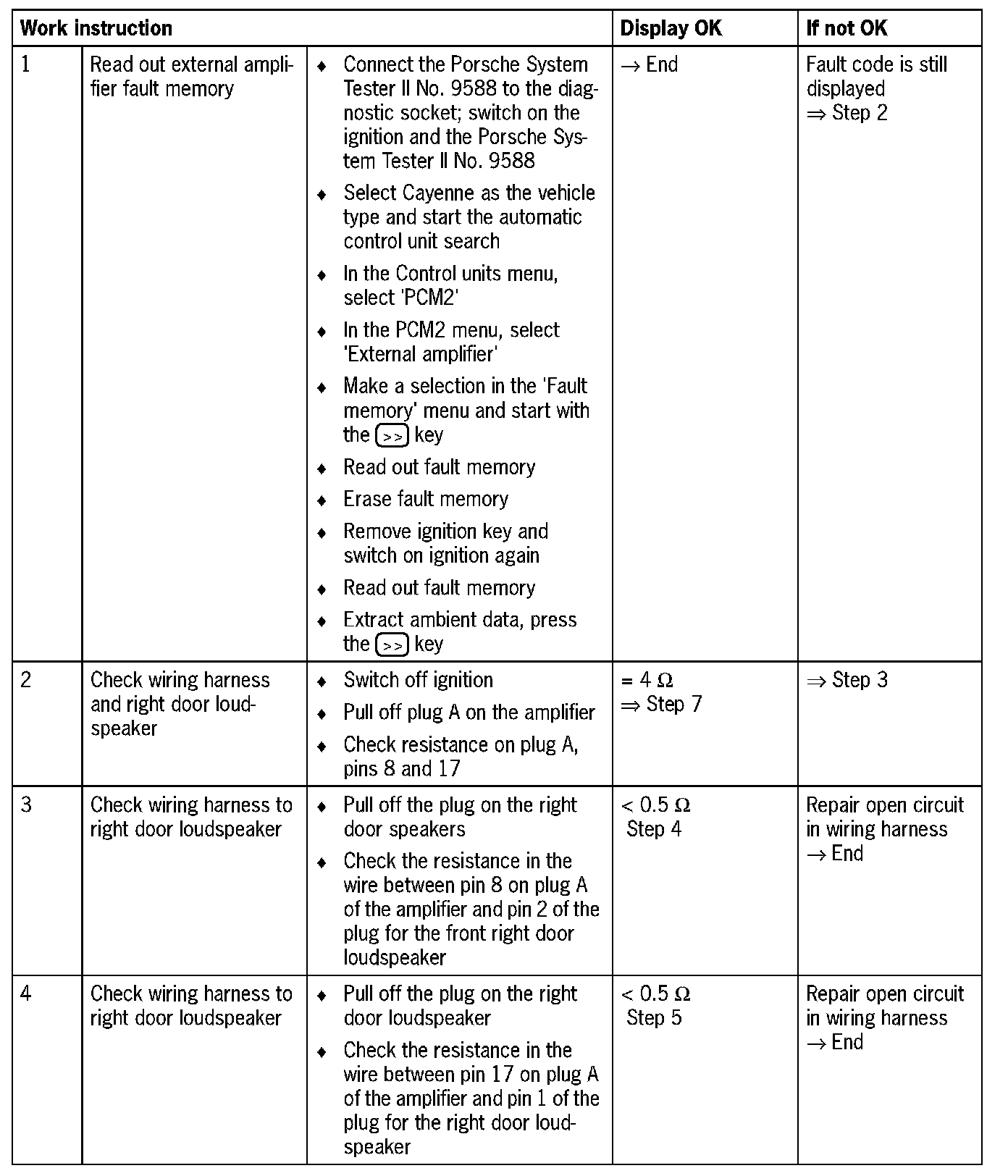

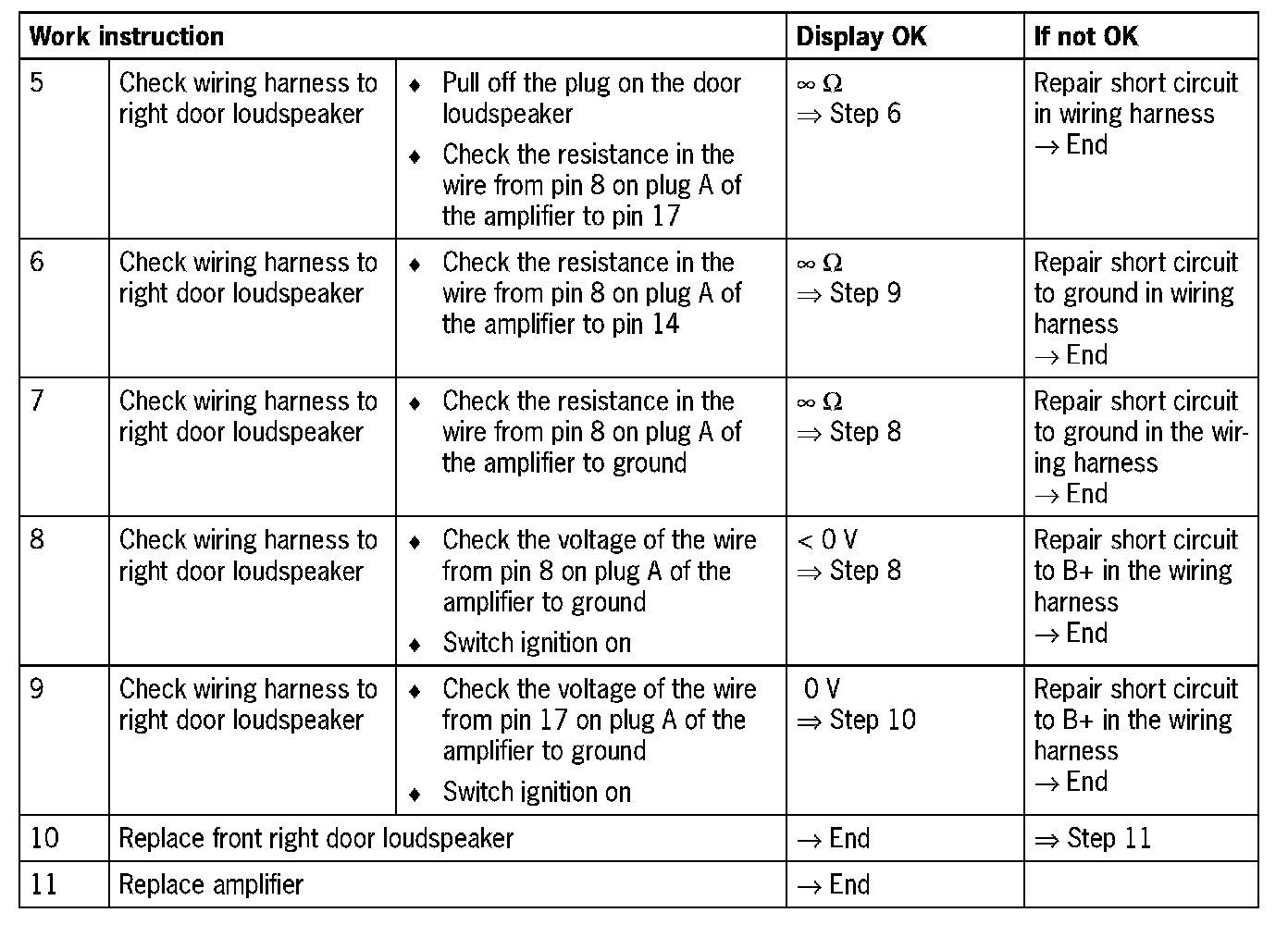

Diagnosis/troubleshooting
