Panorama Roof System

Fault code 0003

Control module faulty

Diagnostic conditions
- Ignition on
- Panorama roof system (PDS) control unit, internal function test

Possible cause of fault
- Panorama roof system (PDS) control unit faulty

Affected pins
-

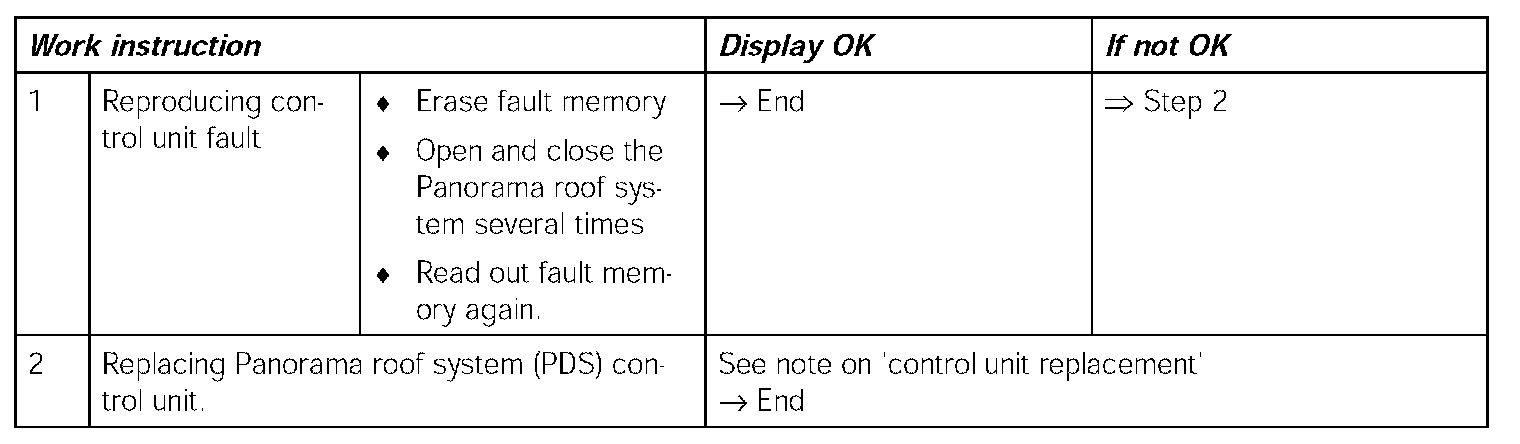

Diagnosis/troubleshooting

NOTE: After the battery voltage has been interrupted, or repair or replacement of components of the Panorama roof system, the limit positions must be relearned for the Panorama roof system control unit.

NOTE:
Control unit replacement: before replacing the 'Panorama roof system control unit', the ground connections, power supply and plug connections on the control unit must be checked as OK. After the test drive, read out the fault memory with the 9588 Porsche System Tester II again. Additional causes of faults that could damage the 'Panorama roof system control unit' should be detected and remedied.
