Steering Column Switch

Fault code 0003

Control module faulty

Diagnostic conditions
- Ignition on
- Internal function test of steering column switch (with electronic unit)

Possible cause of fault
- Steering column switch (with electronic unit) faulty

Affected pins
-

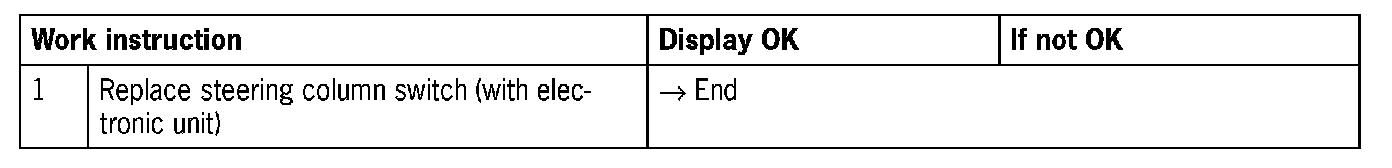

Diagnosis/troubleshooting

NOTE:
- Before replacing the control module, the ground connections, power supply and plug connections on the steering column switch must be checked and found to be OK.
- When replacing the steering column switch (with electronic unit), observe the coding of the control module.
- After the test drive, read out the fault memory with the Porsche System Tester II No. 9588 again. Additional causes of faults that could damage the steering column switch (with electronic unit) should be detected and remedied.
