Tire Pressure Monitoring System



Fault Code 0003

Control module faulty

Diagnostic conditions
- Ignition on
- Internal function test
- Approx. 15 minutes of driving

Possible cause of fault
- Control module for tire pressure monitoring system is faulty

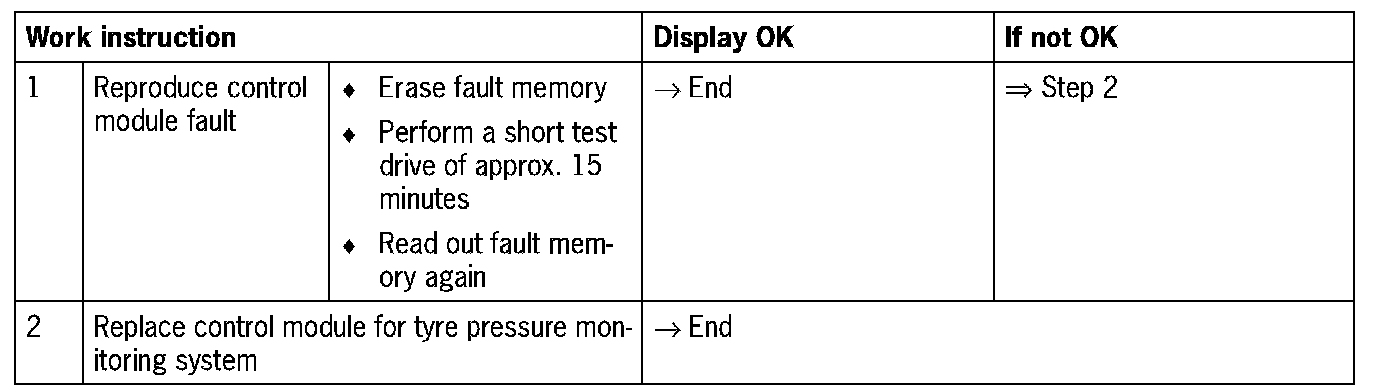

Diagnosis/troubleshooting
