Windscreen Wiper

Fault code 0003

Control module (wiper motor) faulty

Diagnostic conditions
- Ignition on
- Internal function test

Possible cause of fault
- Wiper motor/control module faulty
- Windscreen wiper on

Affected pins
-

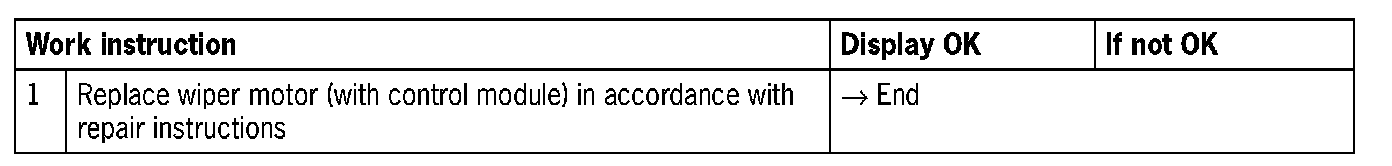

Diagnosis/troubleshooting

NOTE: The control module and the wiper motor form one unit. The entire unit must be replaced in the event of a fault.
