Level Adjustment

Fault code 0135

Wheel acceleration sensor, front left

Diagnostic conditions
- Ignition on
- Internal level control module function test

Possible cause of fault
- Open circuit in the wiring of pin 86 of the level control module
- Short circuit to ground in the wiring in pin 86 of the level control module
- Level control module receives implausible signal from wheel acceleration sensor
- Wheel acceleration sensor faulty
- Level control module faulty

Affected pins
Level control module, plug B:
- Pin 86

Wheel acceleration sensor, front left, plug B:
- Pin 2

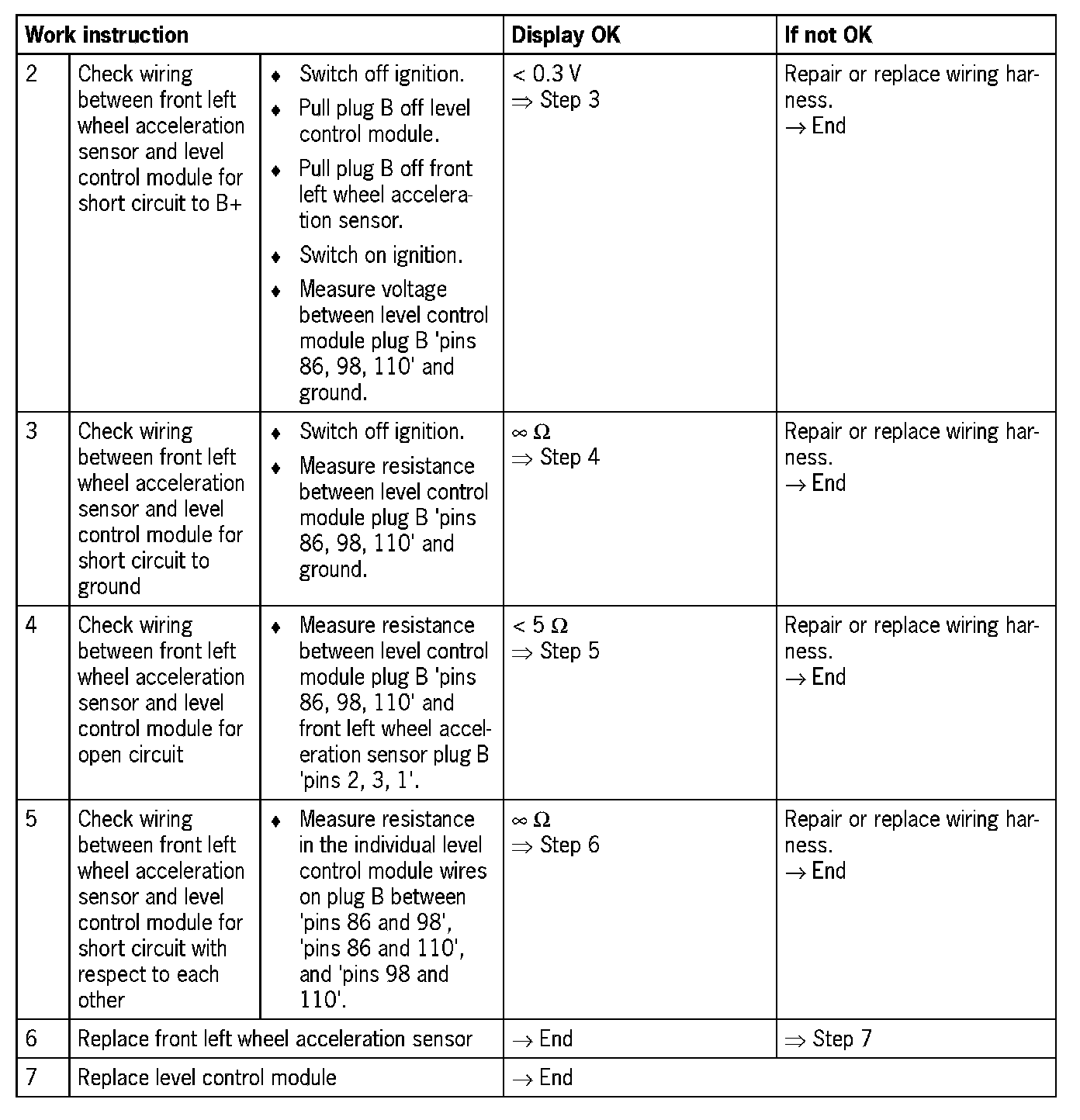

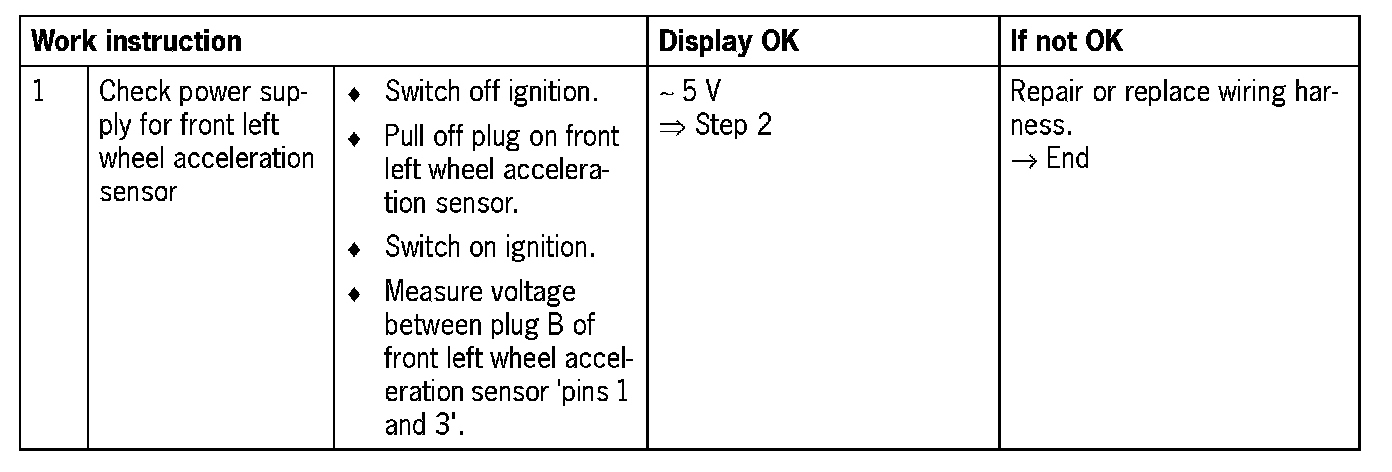

Diagnosis/troubleshooting
