Level Adjustment

Fault code 0136

Wheel acceleration sensor, front right

Diagnostic conditions
- Ignition on
- Internal level control module function test

Possible cause of fault
- Open circuit in wire from control unit (level control) pin 87
- Short circuit to ground in wire from control unit (level control) pin 87
- Level control module receives implausible signal from wheel acceleration sensor
- Wheel acceleration sensor faulty
- Level control module faulty

Affected pins
Level control module, plug B:
- Pin 87

Wheel acceleration sensor, front right, plug B:
- Pin 2

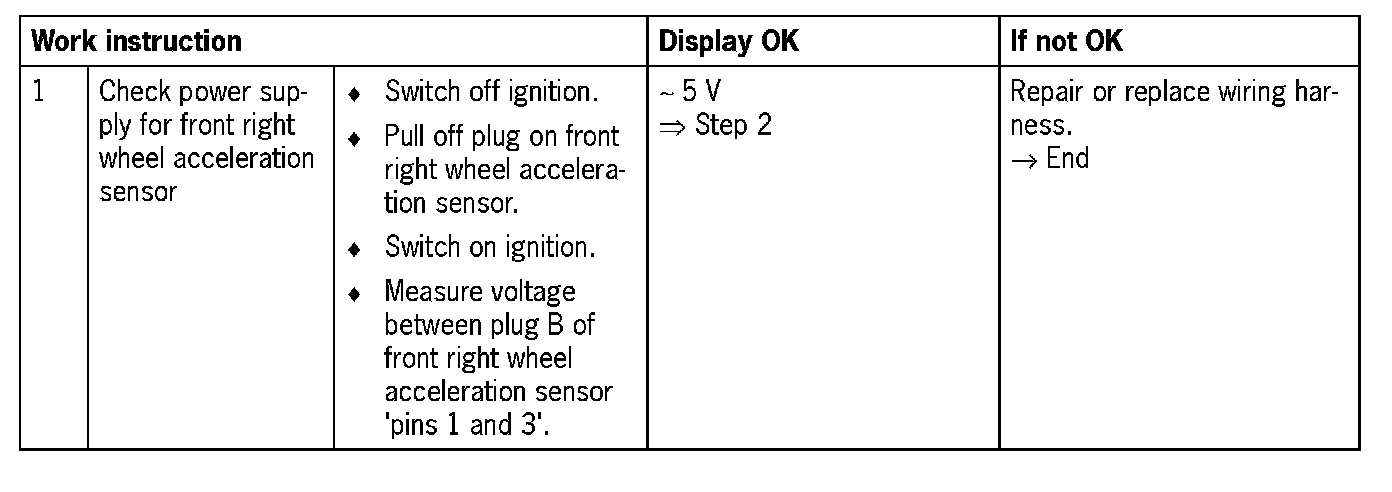

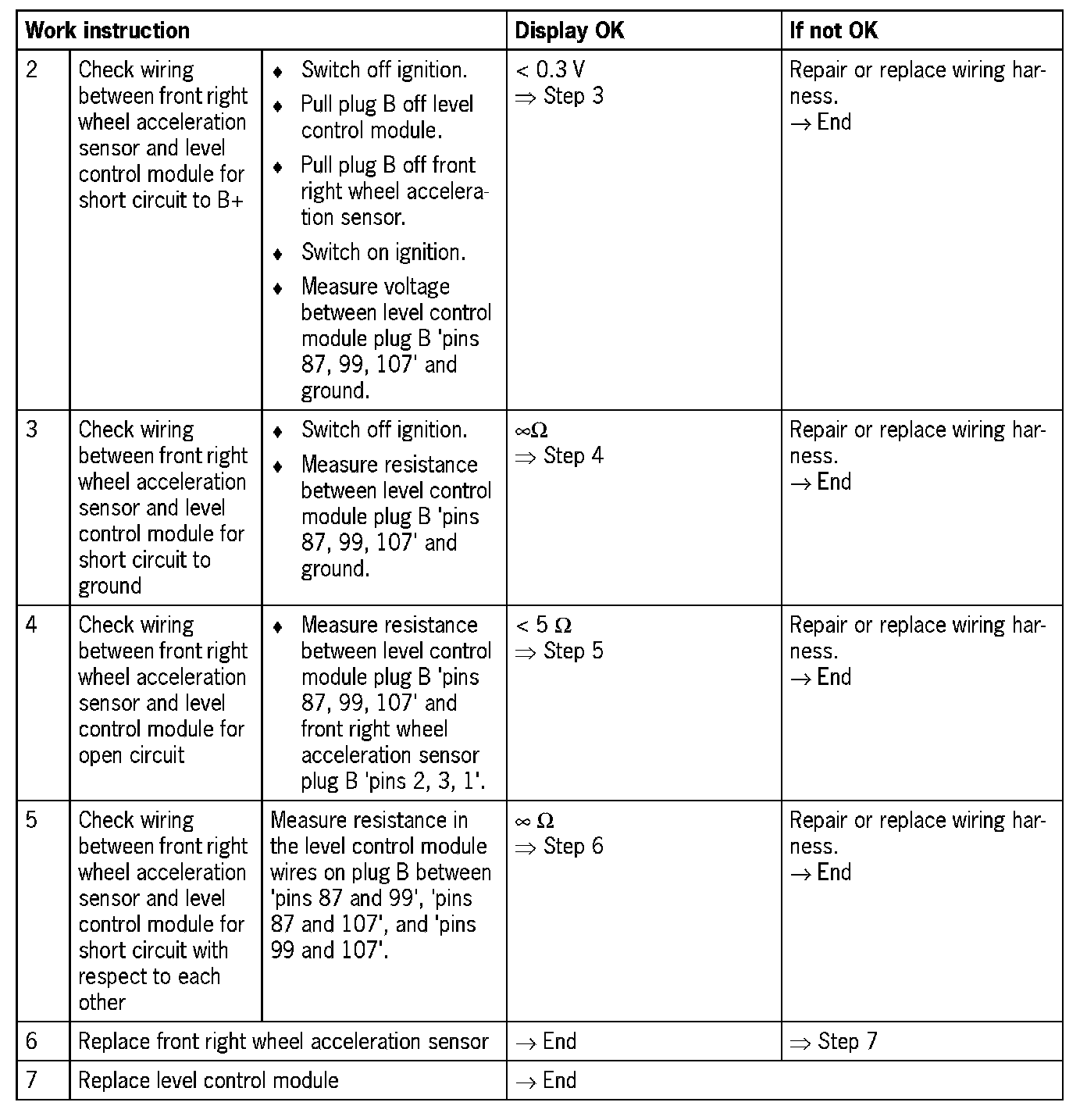

Diagnosis/troubleshooting
