Level Adjustment

Fault code 0141

Rear body acceleration sensor

Diagnostic conditions
- Ignition on
- Internal level control module function test

Possible cause of fault
- Open circuit in the wiring of pin 96 of the level control module
- Short circuit to ground in the wiring of pin 96 of the level control module
- Level control module receives implausible signal from body acceleration sensor
- Body acceleration sensor faulty
- Level control module faulty

Affected pins
Level control module, plug B:
- Pin 96

Rear body acceleration sensor:
- Pin 2

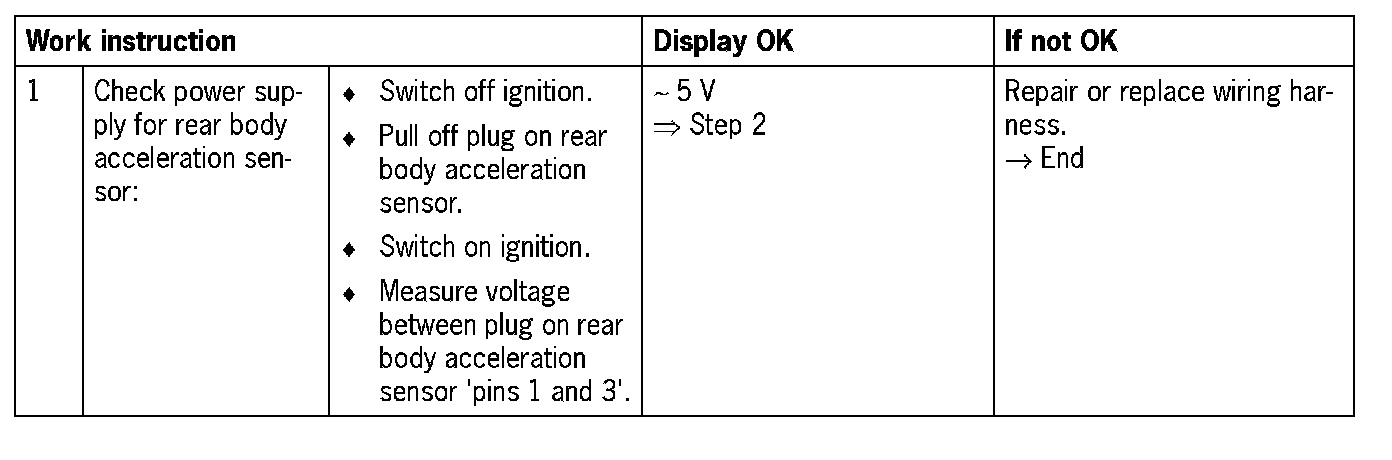

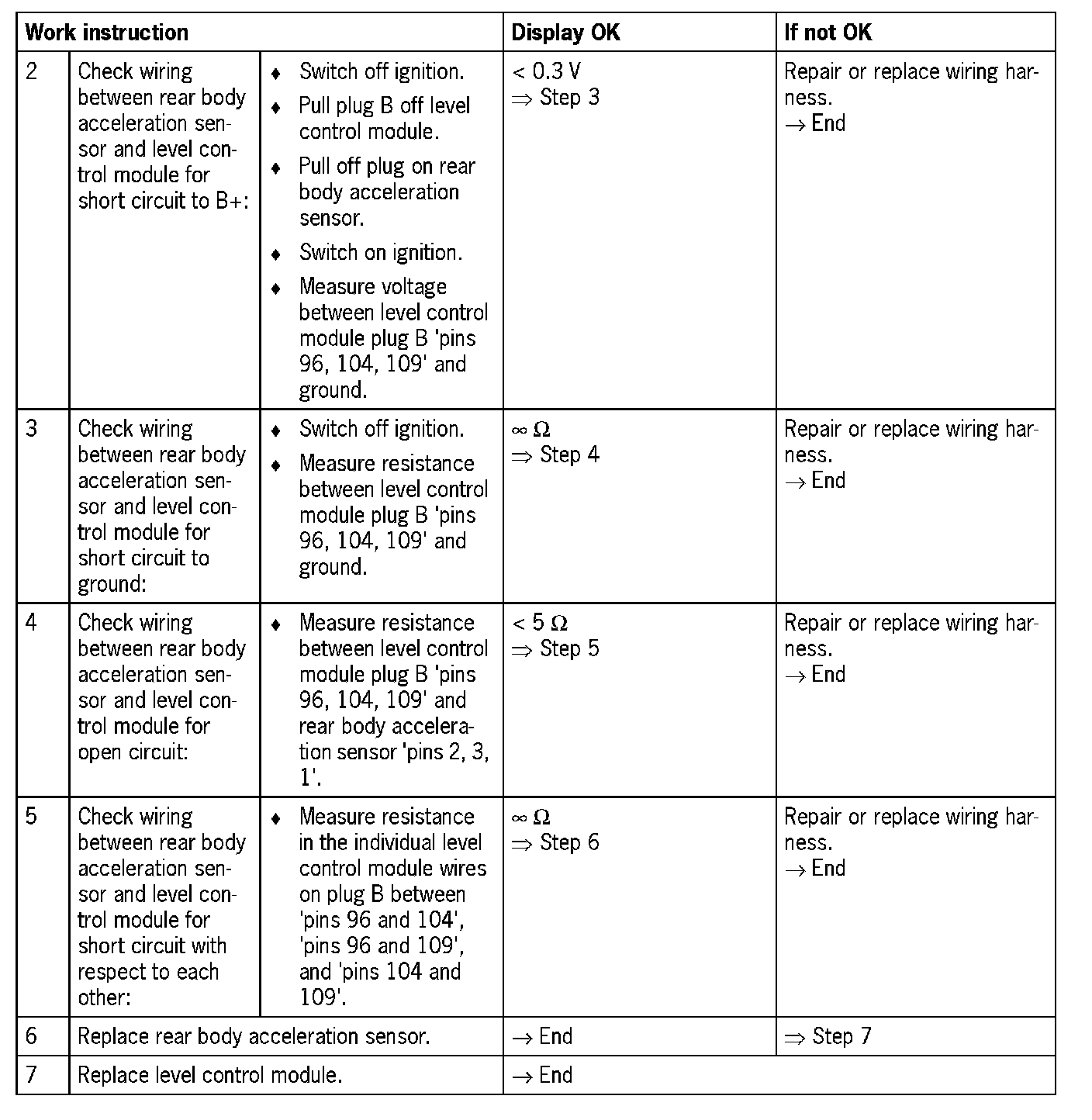

Diagnosis/troubleshooting
