Airbag

Fault code 0149

Control module not programmed

NOTE: This fault is entered if the airbag triggering unit has not been coded/locked.

Diagnostic conditions
- Ignition on
- Internal function test on airbag triggering unit

Possible cause of fault
- Airbag triggering unit not coded/locked

Affected pins
-

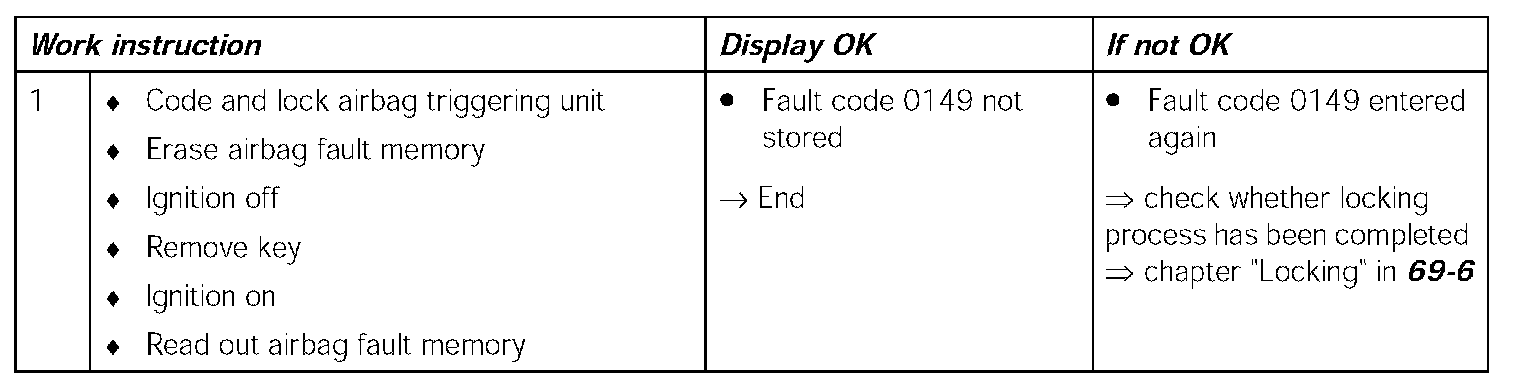

Diagnosis/troubleshooting
