Parkassist

Fault code 0149

No or incorrect basic setting/coding or programming

NOTE: Also refer to the chapter 'Control unit function'

Diagnostic conditions
- Ignition on
- ParkAssist control unit internal function test

Possible cause of fault
- ParkAssist control unit not coded/parameterised or incorrectly so

NOTE: After coding or entering new parameters, the ignition must be switched off and on again. Only then are the new functions active.

Affected pins
-

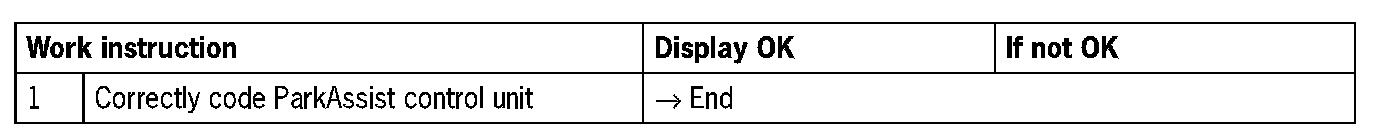

Diagnosis/troubleshooting
