Fault Code 01BE

01BE - Satellite Radio

Power supply - limit value not reached

Diagnostic conditions
- PCM2 switched on

Possible cause of fault
- Vehicle electrical system voltage less than 8.5 V for more than 30 seconds
- Check battery
- Check the generator

Affected pins
Power supply - satellite radio plug, pin 2

Ground - satellite radio plug, pin 1

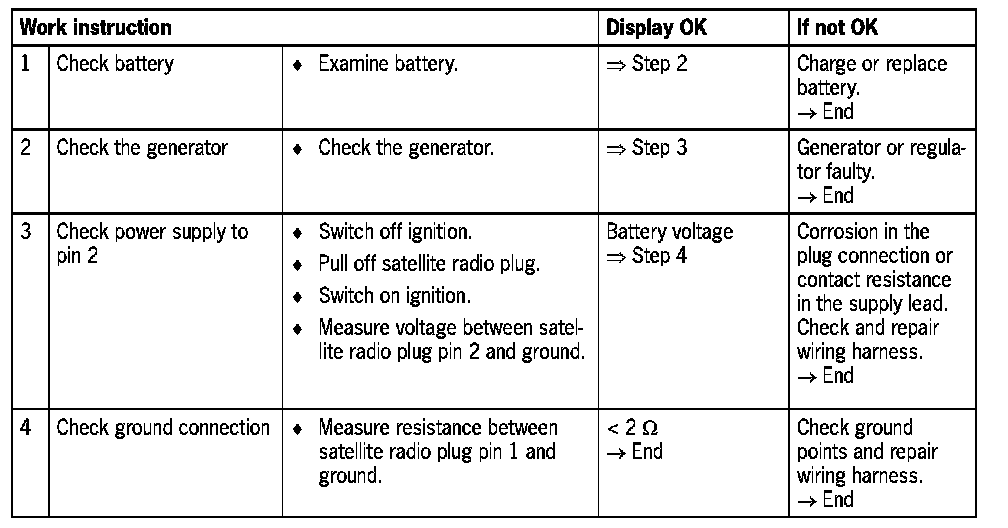

Diagnosis/troubleshooting
