Fault Code 0214

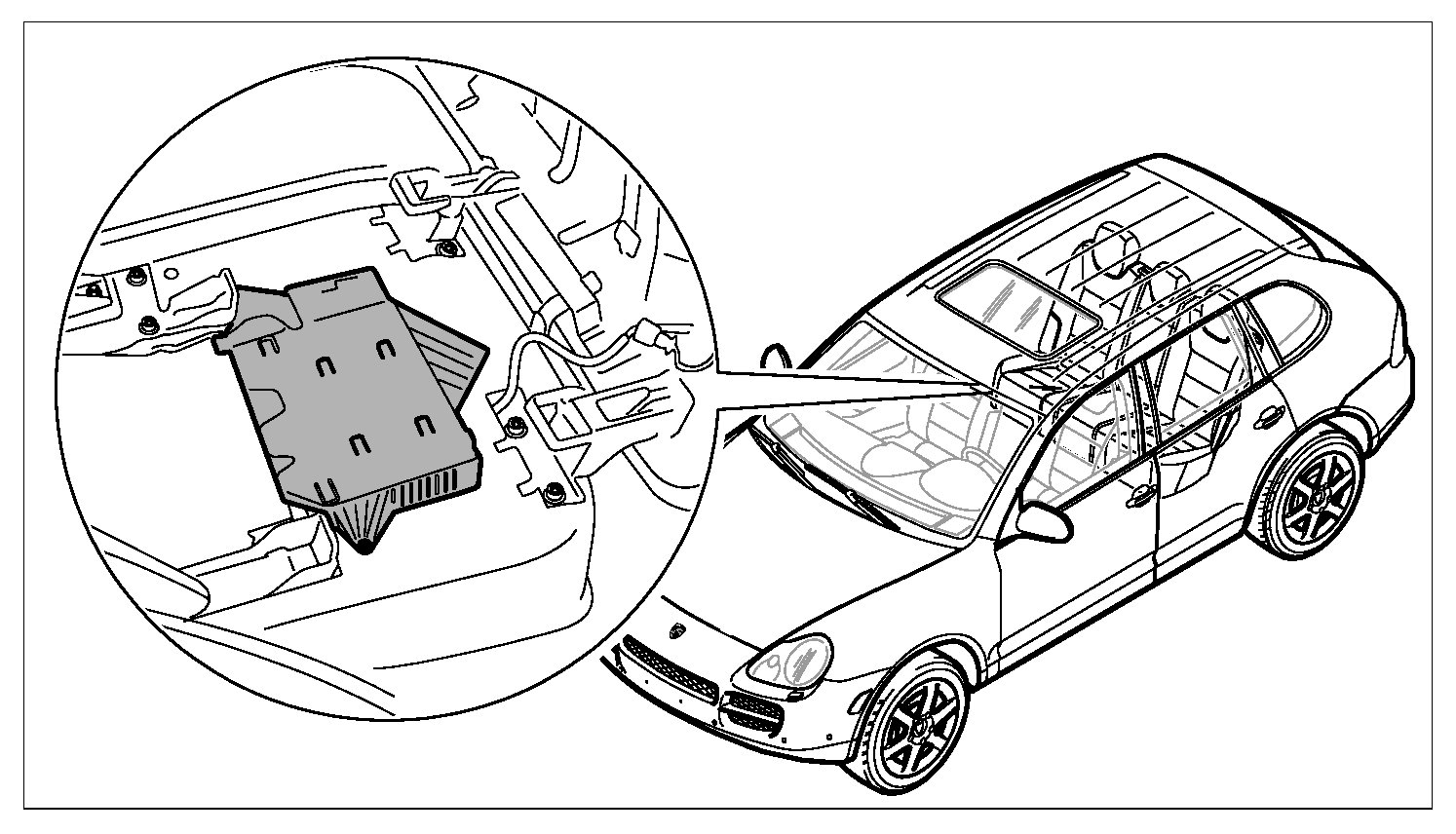

0214 - Satellite Radio

Voltage supply

Diagnostic conditions
- Ignition switched on
- Engine running
- PCM2 switched on

Possible cause of fault
- Battery
- Generator

Affected pins
Power supply - satellite radio plug, pin 2

Ground - satellite radio plug, pin 1

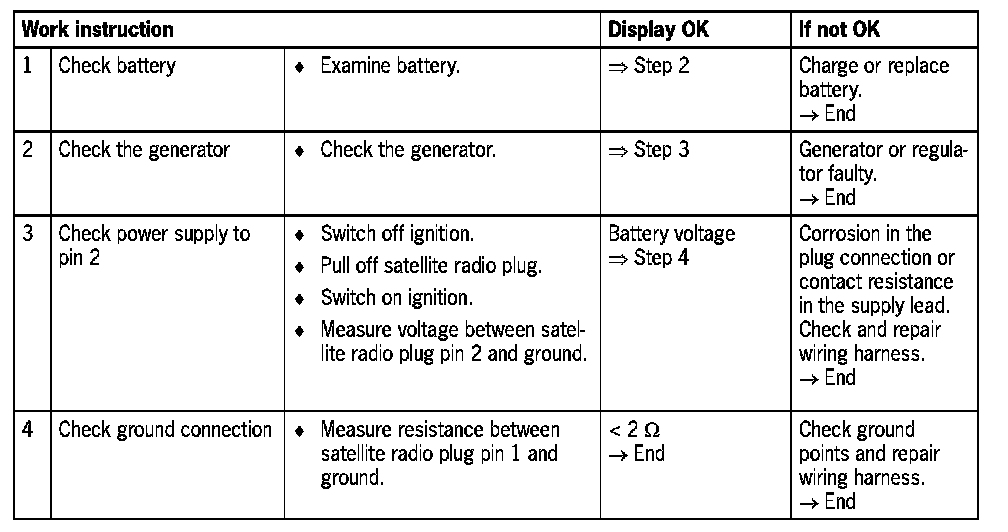

Diagnosis/troubleshooting
