Fault Code 0288

Fault code 0288

Electronic steering column lock (ELV)

Diagnostic conditions
- Internal KESSY control module function test

Possible cause of fault
- Short circuit to B+ or open circuit in wiring
- Short circuit to ground or open circuit in wiring
- Implausible signal
- No signal/communication
- Plug on steering column lock not connected correctly
- Steering column lock faulty
- Control module faulty

Affected pins
- Plug A on control module: pin 16
- Plug B on control module: pin 1, pin 2
- Steering column lock plug: pin 1, pin 2, pin 3

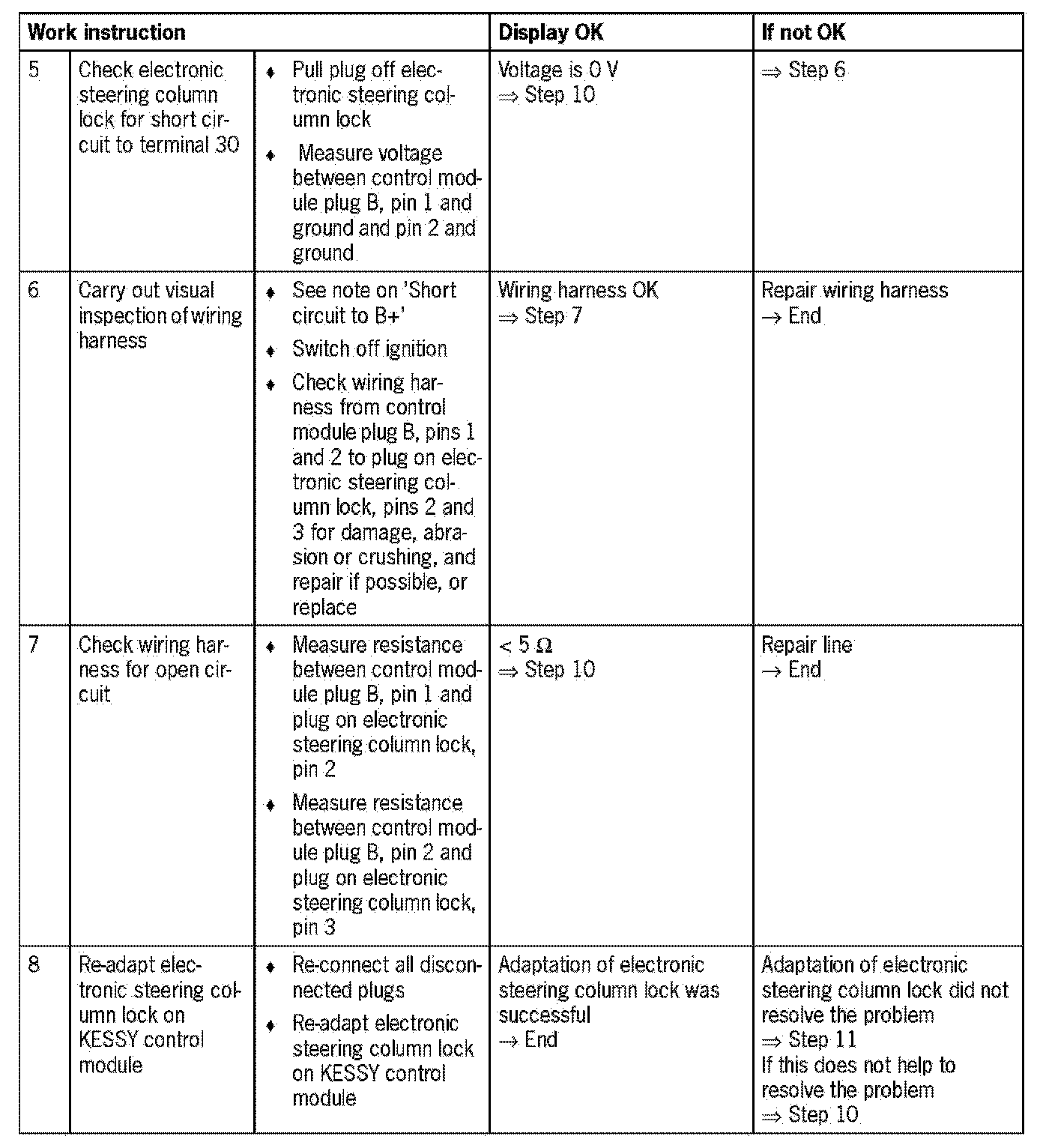

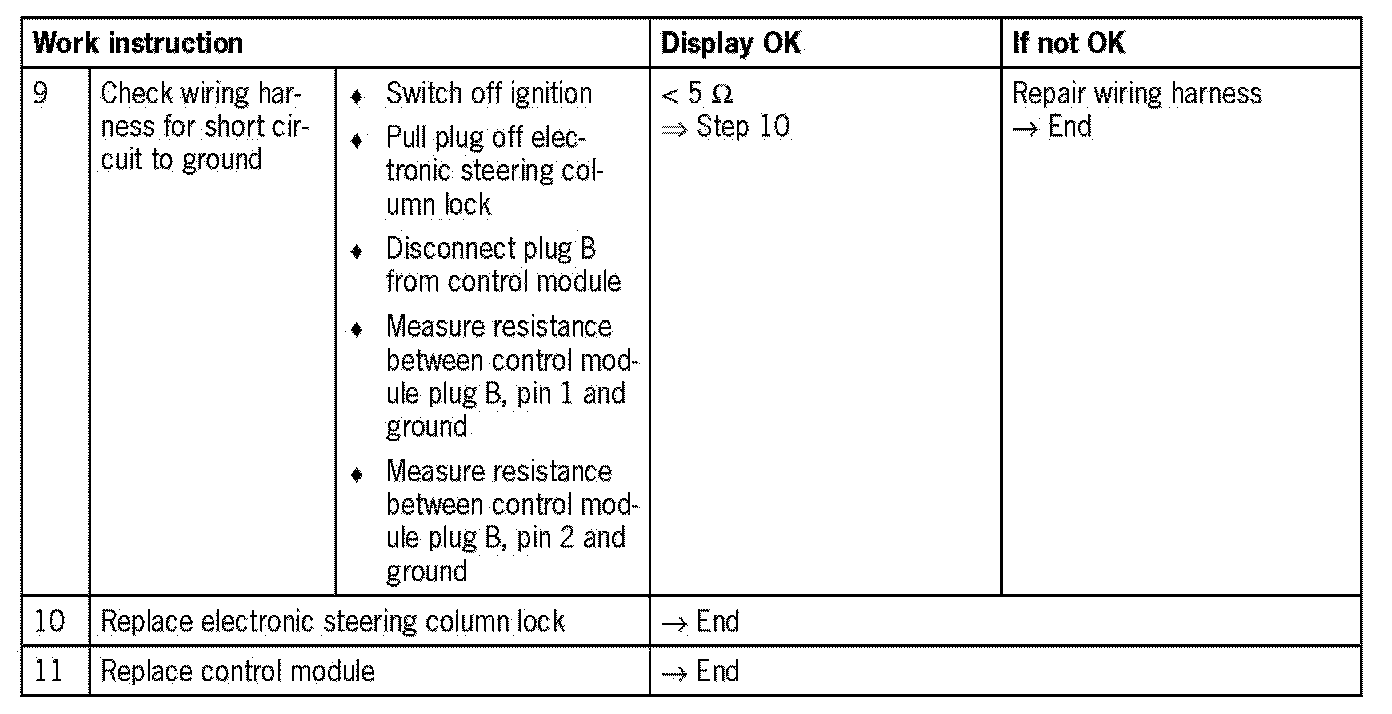

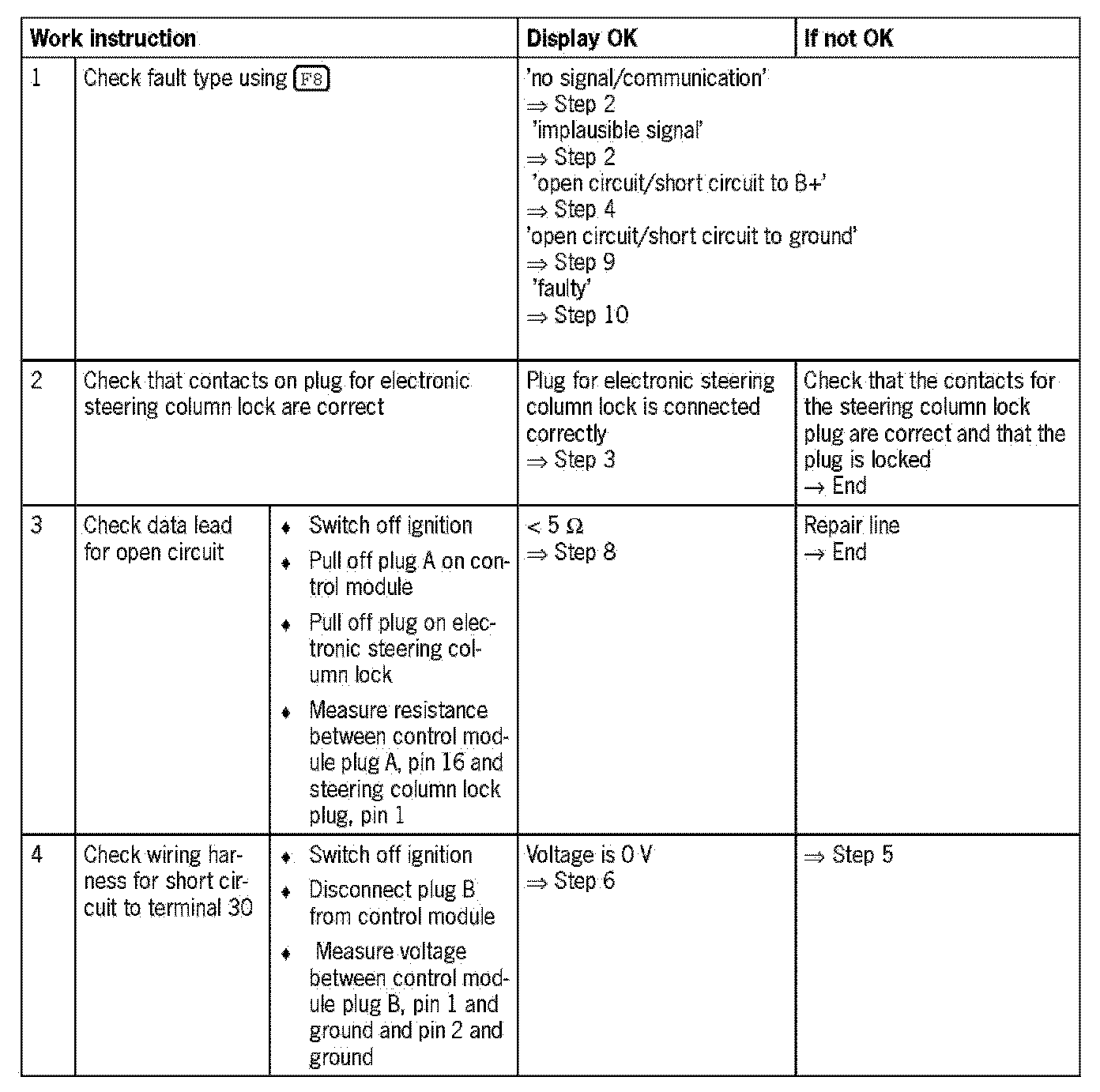

Diagnosis/troubleshooting

NOTE:
Visual inspection: In the next troubleshooting section, please check first that the affected pins on the KESSY control module plug connection are neither damaged nor corroded. The wiring and plugs of the affected components must also be checked for external damage and correct contacts. Repair damaged or corroded pins if possible, otherwise replace affected pins. Repair or replace damaged wires.

NOTE: Conventional diagnosis/troubleshooting cannot be performed for the fault type 'short circuit to B+', which is displayed using the 'F8' key in the 9588 Porsche System Tester II. The reason for this is that the ignition cannot be switched on when there is no control module connected. As a result, it is not possible to differentiate uniquely between a short circuit to terminal 30 and a short circuit to terminal 15. A thorough visual inspection of components and wiring must therefore be carried out before replacing a control module.

NOTE: A electro-mechanical steering lock (ELV) adapted once using the 9588 Porsche System Tester II can no longer be re-adapted or only installed in the same vehicle.
