Level Adjustment

Fault code 0311

Tyre filling connection

Diagnostic conditions
- Ignition on
- Internal level control module function test

Possible cause of fault
- Short circuit to ground in pin 54 and/or pin 55 of the level control module wiring (implausible signal)
- Open circuit in pin 54 and/or pin 55 and/or pin 100 of the level control module wiring
- Level control module faulty

Affected pins
Level control module, plug A:
- Pin 54
- Pin 55

Level control module, plug B:
- Pin 100

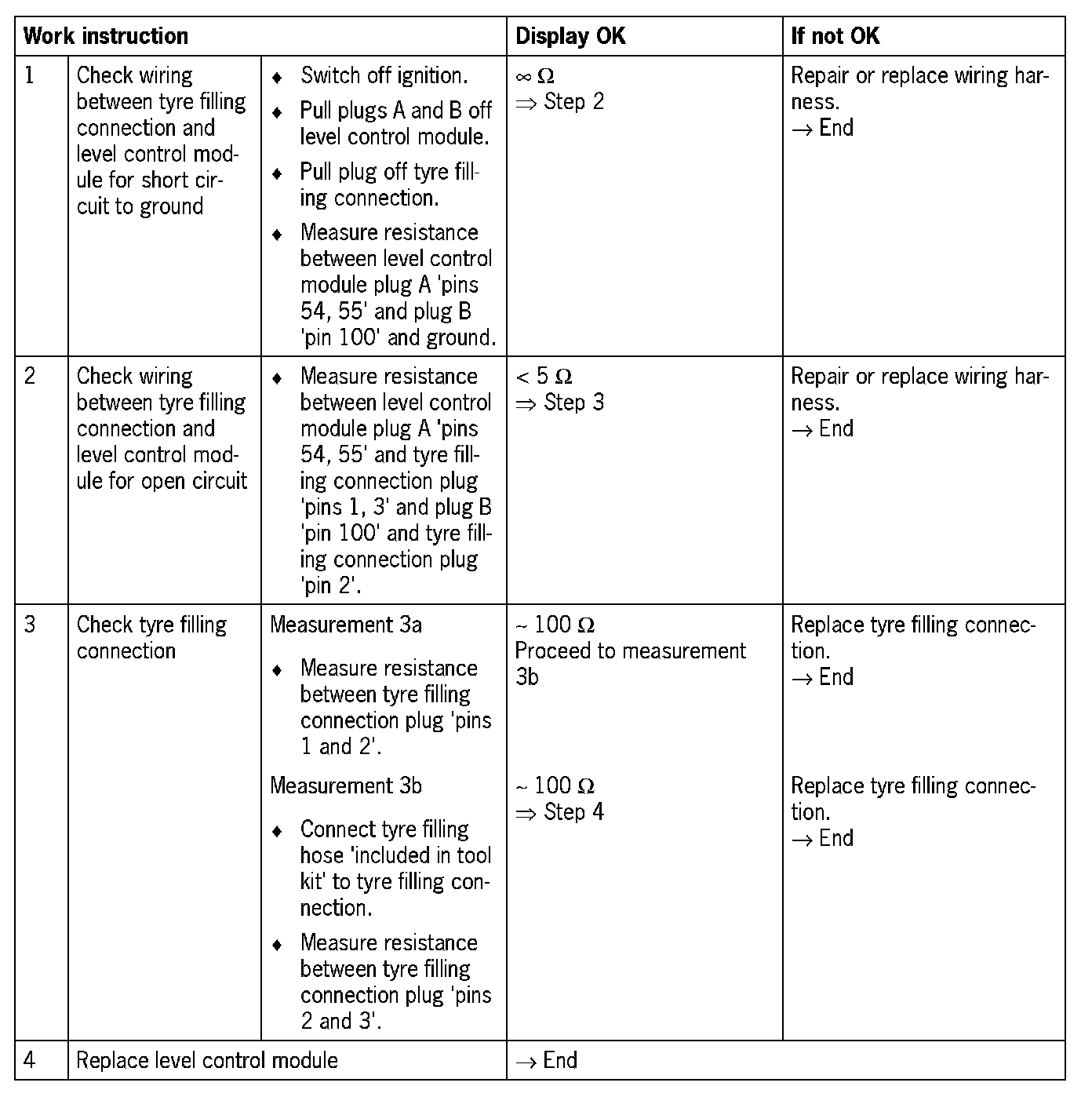

Diagnosis/troubleshooting
