Fault Code 0328

Fault code 0328

Rear window actuating element

NOTE: This fault was detected by the 'rear convenience system' control module.

Diagnostic conditions
- Open/close rear window

Possible causes of fault
- Short circuit to ground
- Internal control module fault

Affected pins
Rear convenience system control module: plug A, pin 20

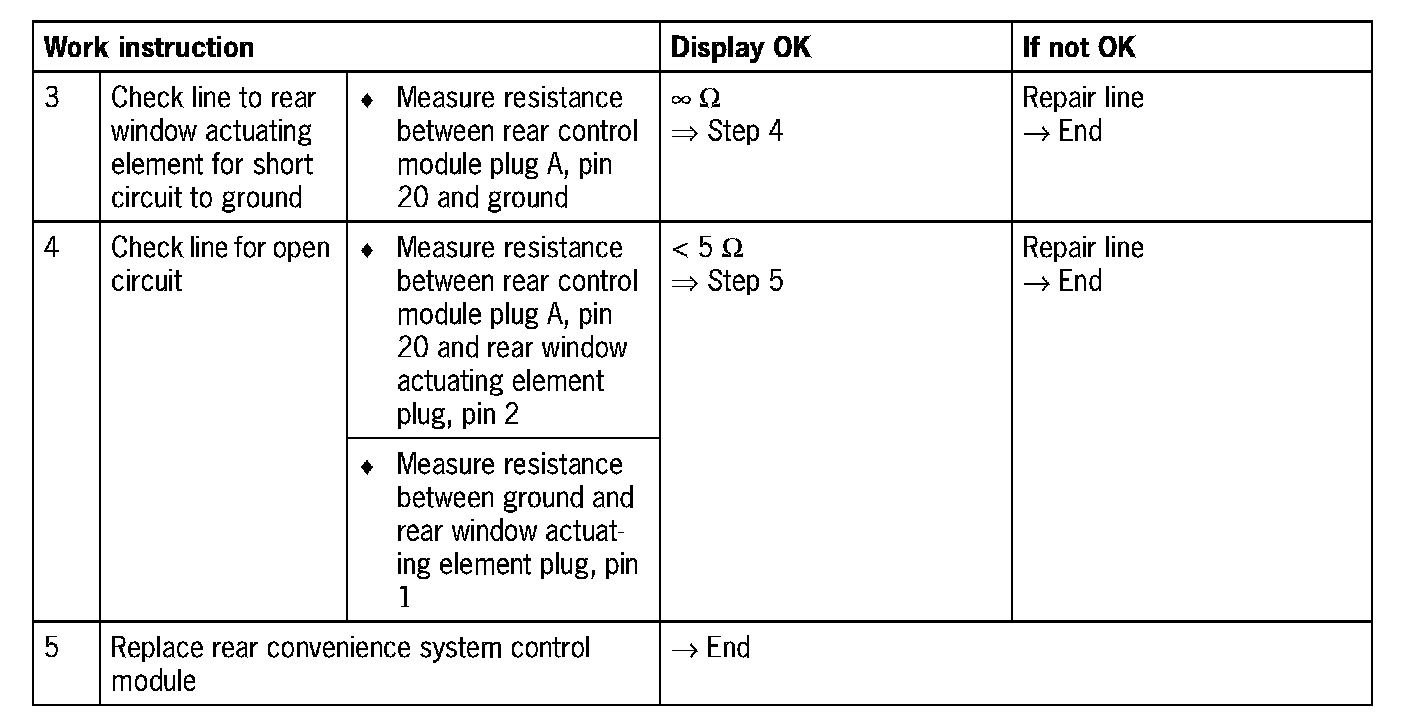

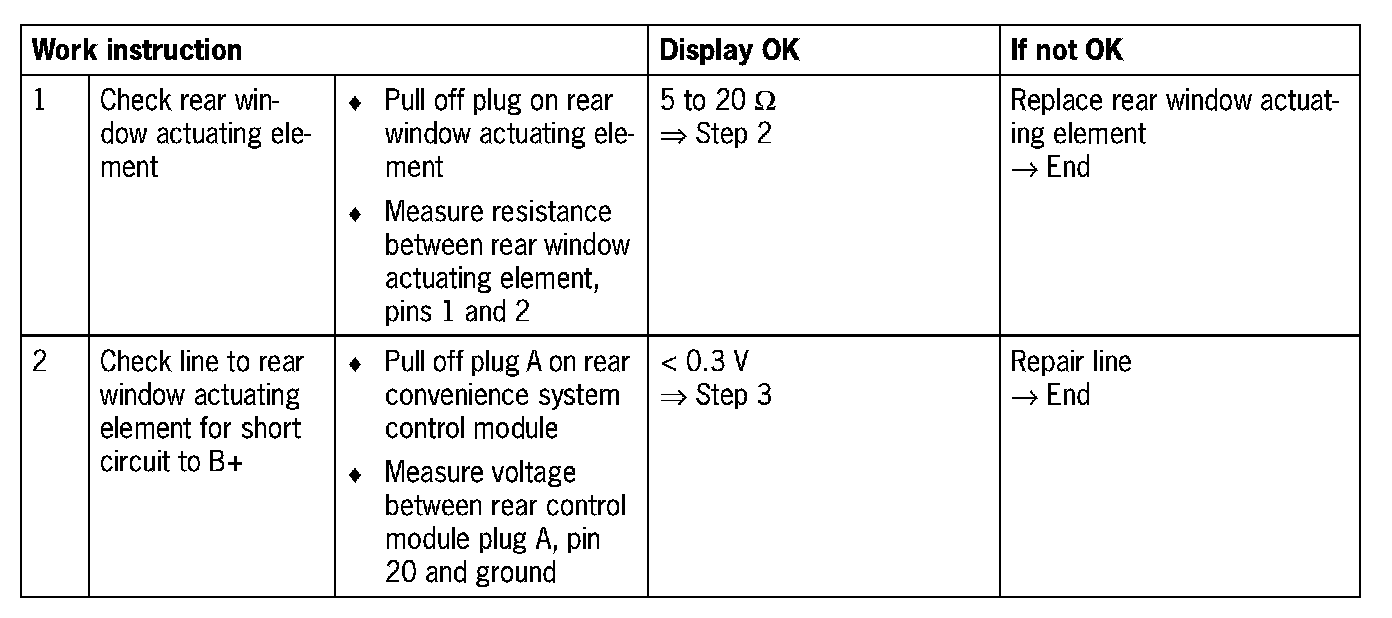

Diagnosis/troubleshooting

NOTE: The rear convenience system control module does not switch oft the output This is protected by fuse F31 (15A) in fuse carrier at right of dashboard.
