Fault Code 0353

Fault code 0353

Feedback signal from front blower regulator

Diagnostic conditions
- Ignition on
- Battery voltage OK (11.4 to 14.5 V)
- Internal function test completed on air-conditioning system regulator control module

Possible causes of fault
- Vehicle voltage (battery voltage) exceeded
- Vehicle voltage (battery voltage) not reached
- Front air-conditioning system regulator control module faulty

Affected pins
Air-conditioning system regulator control module, front: Plug C
- Pin 12 'Feedback voltage (feedback voltage front blower regulator)'

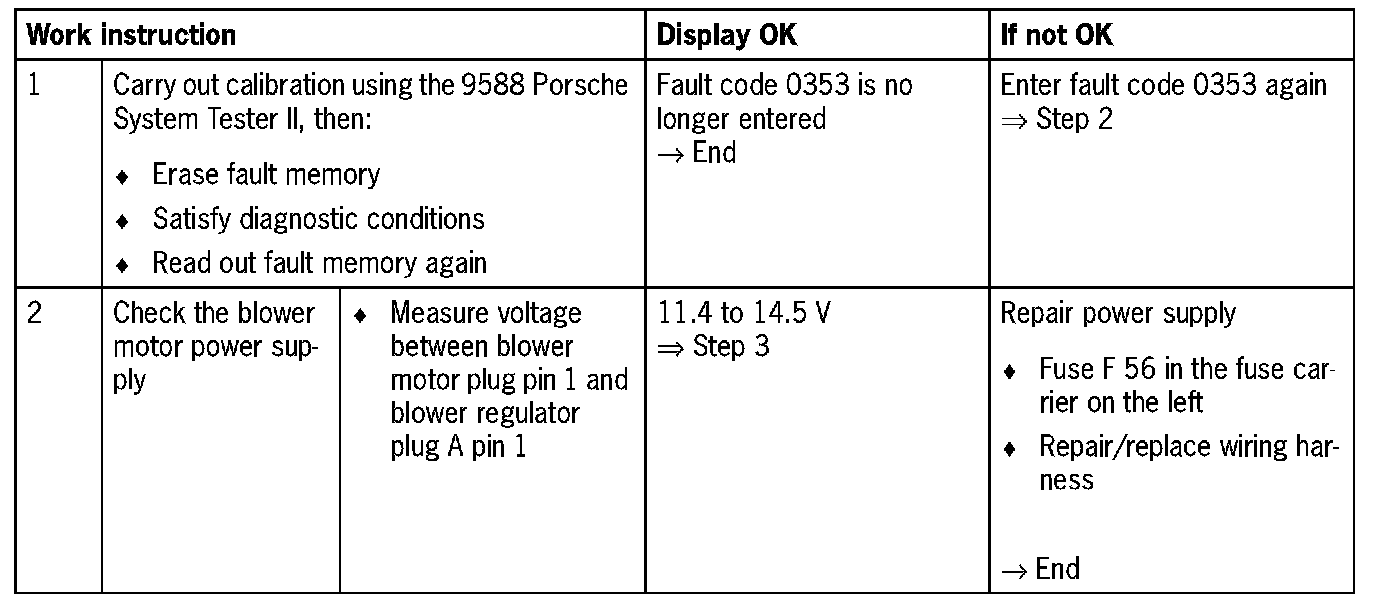

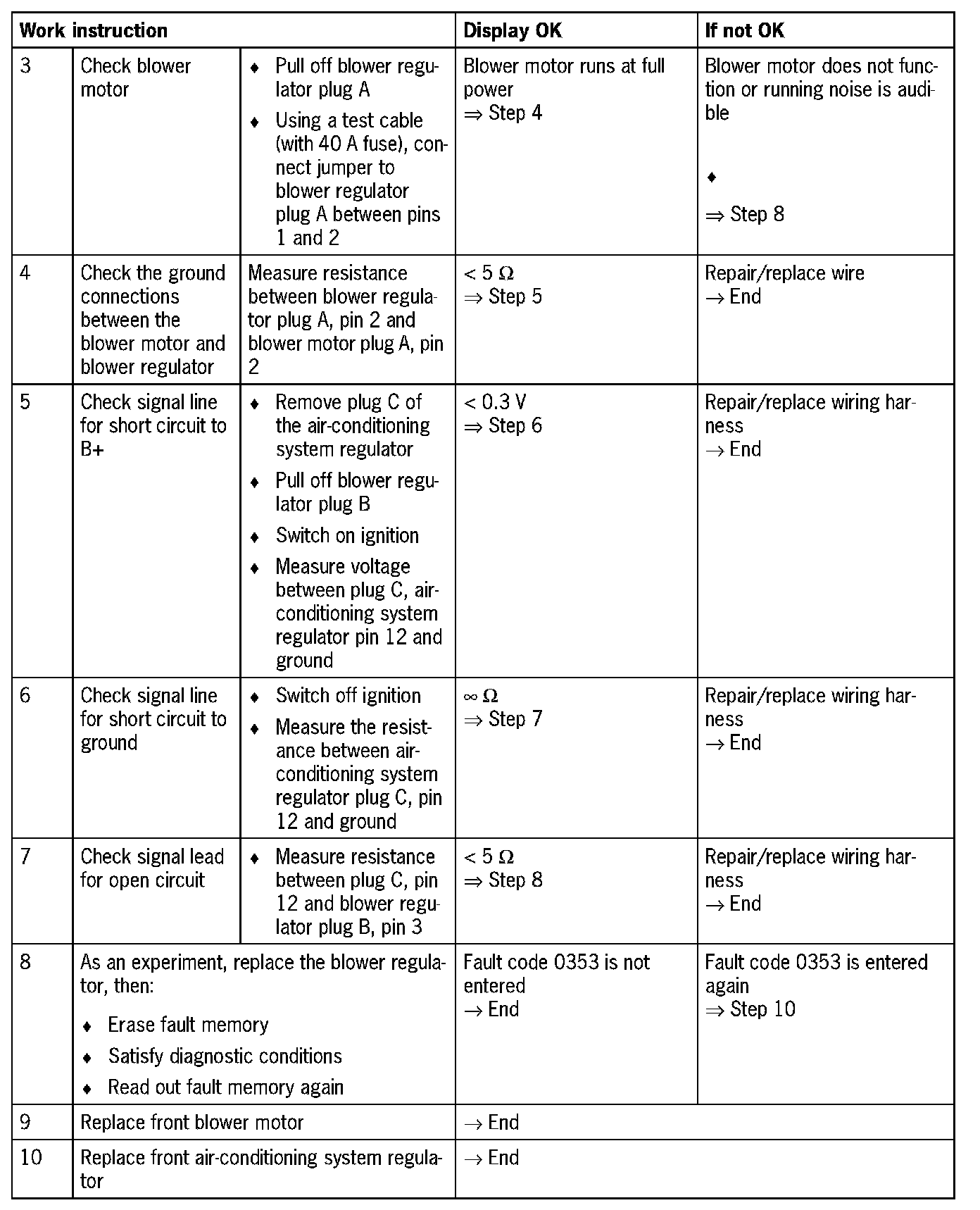

Diagnosis/troubleshooting
