Fault Code 0410

Fault code 0410

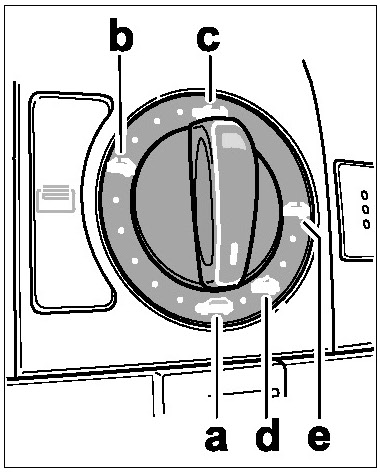

Knob signal

Diagnostic conditions
- Ignition on
- Panorama roof system (PDS) control unit, internal function test

Possible cause of fault
- Signal level outside of defined range
- Short circuit/open circuit in signal wire
- Switch sticks or is faulty

Affected pins
Panorama roof system (PDS) control unit plug D 'control switches and sun blind':
Pin 6 '5V reference voltage'
Pin 8 'Position SD1/SD2'
Pin 10 'GND'

Knob 6-pin plug:
Pin 1 '5V reference voltage'
Pin 2 'GND'
Pin 3 'signal'

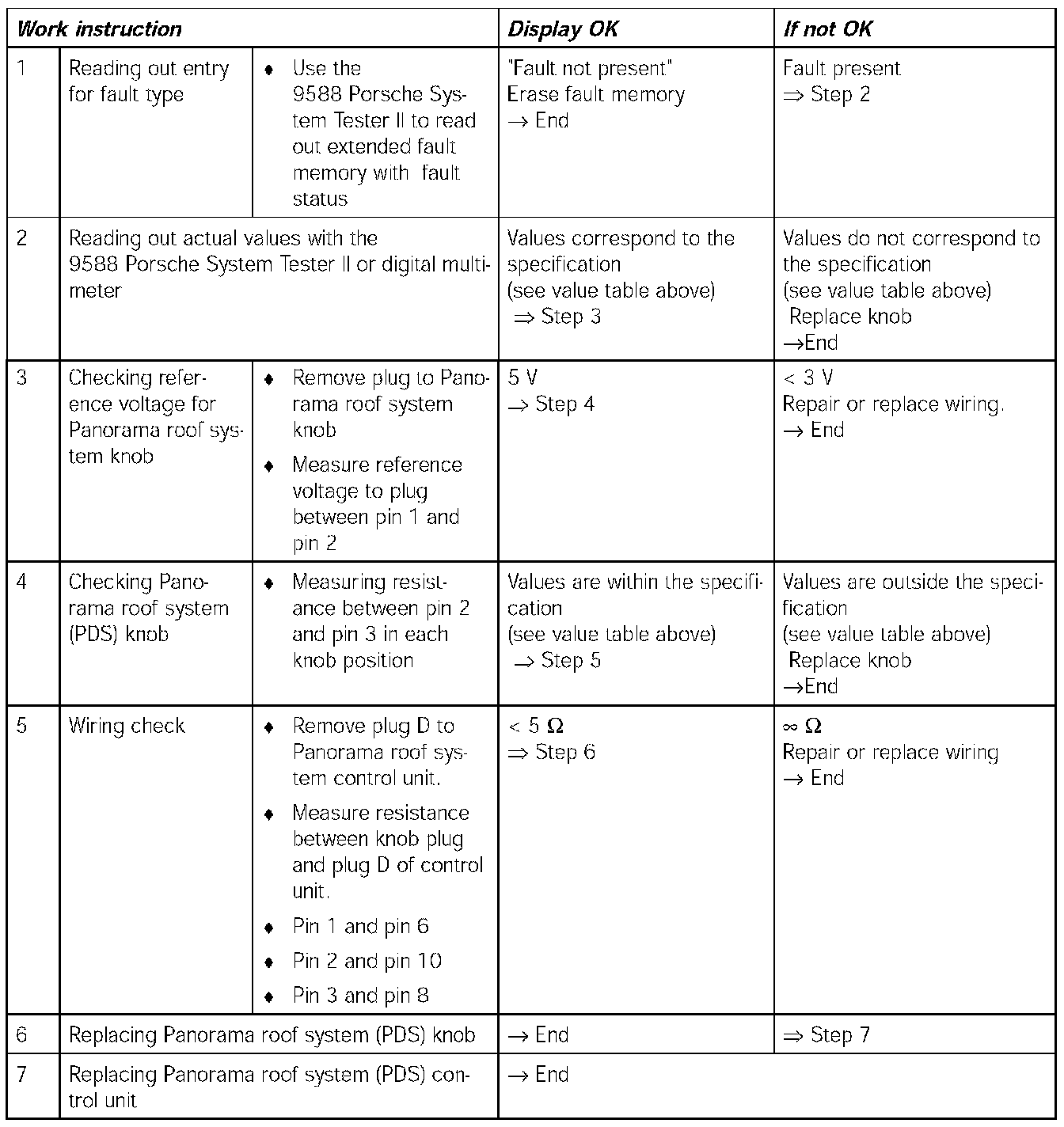

Diagnosis/troubleshooting






NOTE: After the battery voltage has been interrupted, or repair or replacement of components of the Panorama roof system, the limit positions must be relearned for the Panorama roof system control unit.

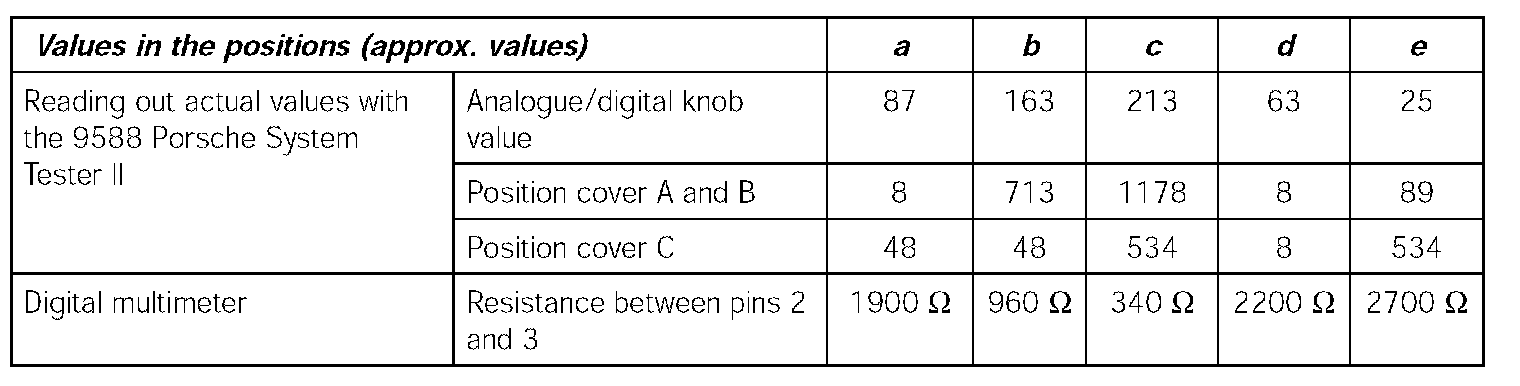

Value table
