Gateway

Fault code 0456

KESSY control module (CAN drive)

Diagnostic conditions
- Ignition on
- Internal gateway function test

Possible causes of fault
- No signal/communication (no signal from KESSY control module on CAN drive)

Affected pins
Instrument cluster, plug B:
- Pin 19 'CAN drive (high)'
- Pin 20 'CAN drive (low)'

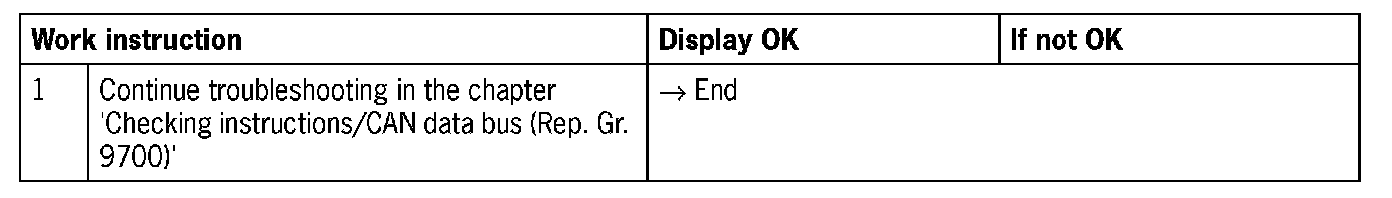

Diagnosis/troubleshooting
