Instrument Cluster

Fault code 0459

PCM 2 (Porsche Communication Management 2)

Diagnostic conditions
- Ignition on
- Internal function test on instrument cluster and gateway

Possible cause of fault
- No signal/communication (no signal from PCM 2 on CAN Infotainment)

Affected pins
Instrument cluster, plug B:
- Pin 31 'CAN Infotainment (high)'
- Pin 32 'CAN Infotainment (low)'

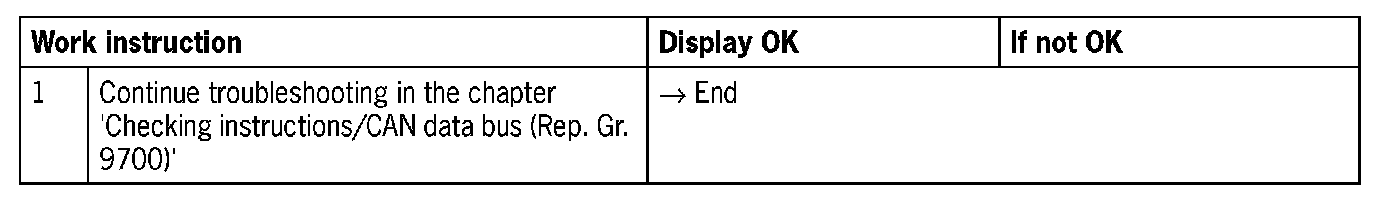

Diagnosis/troubleshooting
