Gateway
Fault code 0461Memory seat adjustment control module, passenger's
Diagnostic conditions
- Ignition on
- Internal gateway function test
Possible causes of fault
- No signal/communication (no signal from passenger's memory seat adjustment control module on CAN comfort)
Affected pins
Instrument cluster, plug B:
- Pin 27 'CAN comfort (high)'
- Pin 28 'CAN comfort (low)'

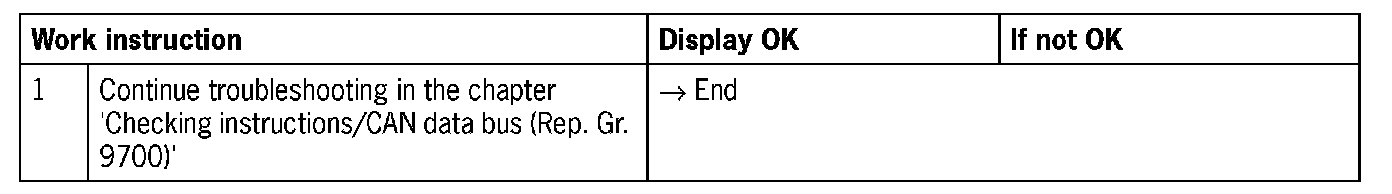

Diagnosis/troubleshooting
