Instrument Cluster

Fault code 0466

Steering column switch (with electronic unit)

Diagnostic conditions
- Ignition on
- Internal function test on instrument cluster and gateway

Possible cause of fault
- No signal/communication (no signal from steering column switch on CAN comfort)

Affected pins
Instrument cluster, plug B:
- Pin 27 'CAN comfort (high)'
- Pin 28 'CAN comfort (low)'

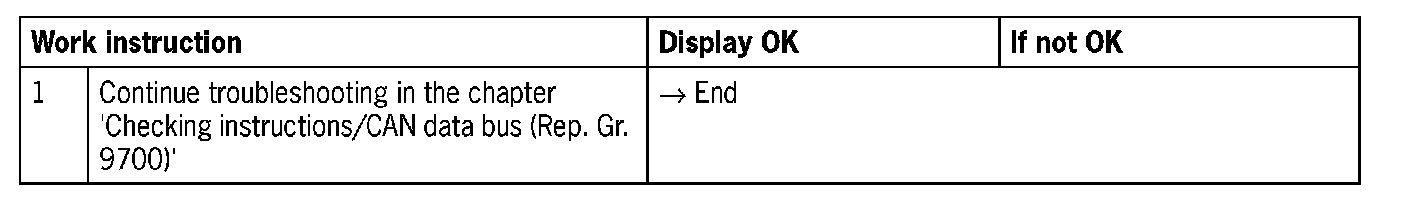

Diagnosis/troubleshooting
