AWS

Fault code 0470

CAN comfort - single-wire operation

Diagnostic conditions
- Switch on ignition (switch it off first if necessary)
- Internal function test on AWS control unit

Possible cause of fault
- CAN comfort (high or low) - short circuit or open circuit

Affected pins
-

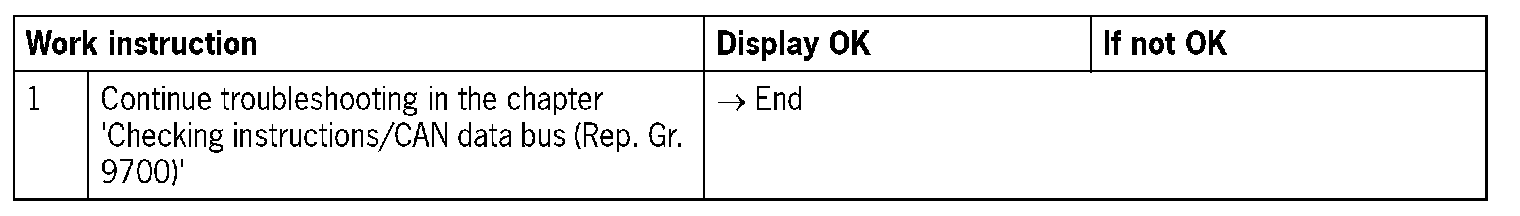

Diagnosis/troubleshooting
