Fault Code 0488

Fault code 0488

Rear right door handle (lock button)

NOTE: This fault was detected by the 'rear right door' control module.

Diagnostic conditions
- Ignition on
- Battery voltage OK (11.4 to 14.5 V)
- Internal function test on rear right door control module
- Lock vehicle using rear right door handle (lock button)

Possible causes of fault
- Short circuit to ground
- Rear right door handle (lock button) faulty

Affected pins
Rear right door control module, plug C:
- Pin 7 'central locking, terminal 31'
- Pin 10 'lock button'

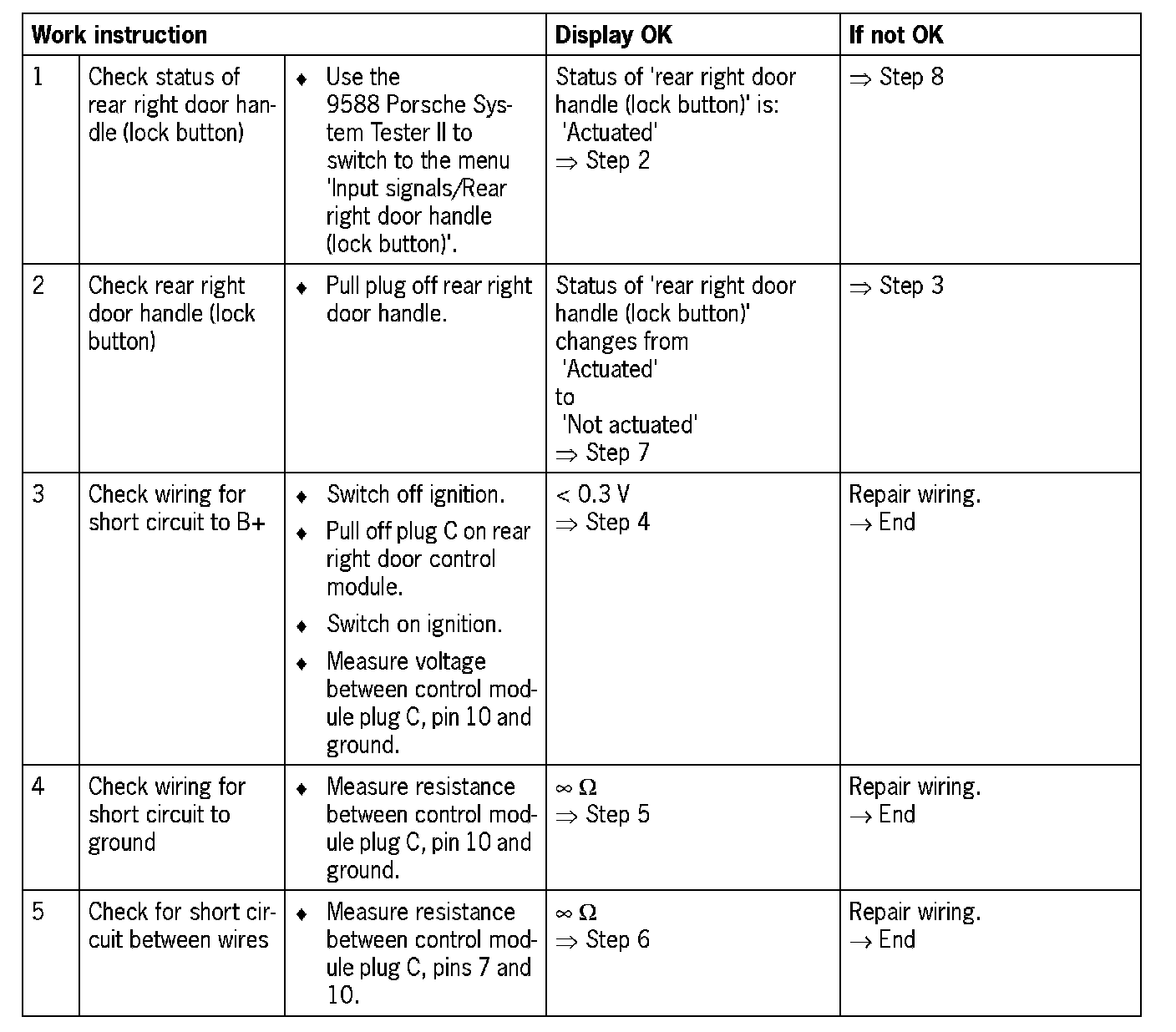

Diagnosis/troubleshooting

NOTE:
Visual inspection: In the next troubleshooting section, please check first that the affected pins on the rear right door control module plug connection are neither damaged nor corroded. The wiring and plugs of the affected components must also be checked for external damage and correct contacts. Repair damaged or corroded pins if possible, otherwise replace affected pins. Repair or replace damaged wires.

NOTE:
Sporadic faults: In the event of faults that occur sporadically, the wiring positions that are linked to moving parts on and in the vehicle must be checked for each system. Various statuses that can cause faults must be simulated with the help of the wiring diagram.

NOTE:
Battery voltage: A battery voltage of between 11.4 and 14.5 V is required for the following troubleshooting procedure. This must be checked and provided, if necessary. On the vehicle electrical system, the voltage to the fuse (input side) must be guaranteed.

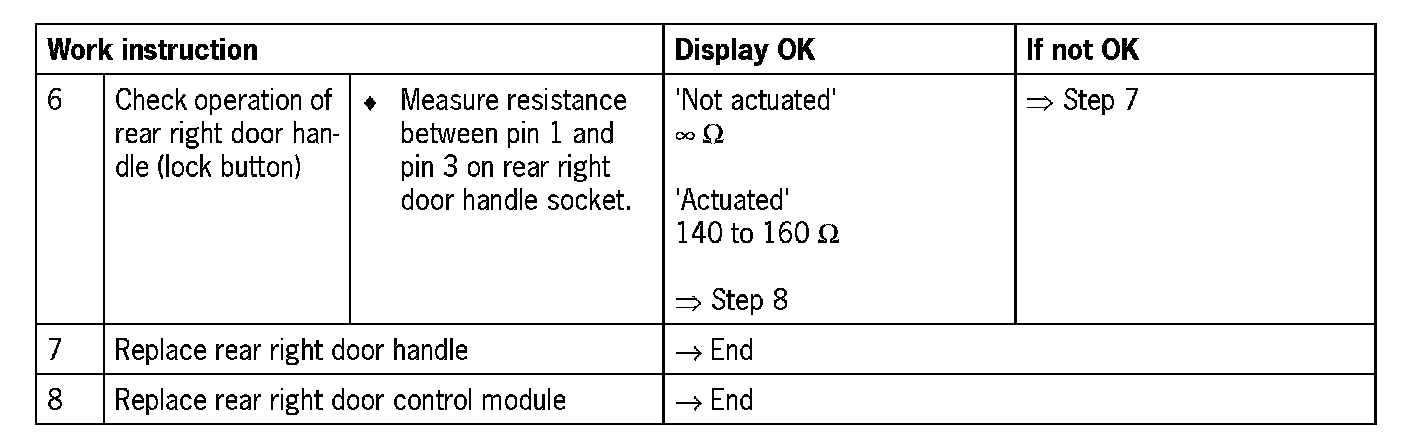

NOTE: 'Short circuit to ground' --> The fault is detected if there is ground potential for more than five minutes on plug C, pin 10.
