Fault Code 051C

Error code 051C

Panorama Roof System Control Unit

Diagnose Conditions
- Ignition one
- Gateway Internal Functional Availability Checking

Possible Cause of Errors
- No Power on Control Unit Panorama Roof System
- No Signal/ Communications

Affected Pin
Control Unit Panorama Roof System Plug A:
- Pin 1 >>Clamp 30]
- Pin 5 >>CAN-Comfort (high)]
- Pin 6 >>Clamp 31]
- Pin 10 >>CAN-Comfort (low)]

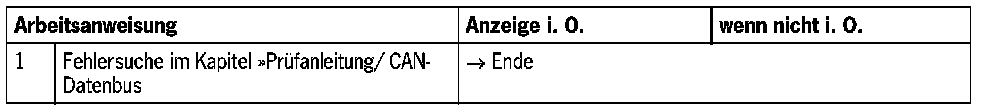

Diagnose/Search errors
