Fault Code 0565

Fault code 0565

Air-conditioning system regulator control module, rear

Diagnostic conditions
- Ignition on
- Battery voltage OK (11.4 to 14.5 V)
- Internal function test completed on air-conditioning system regulator control module

Possible causes of fault
- Rear air-conditioning system regulator control module faulty
- CAN comfort faulty

Affected pins
-

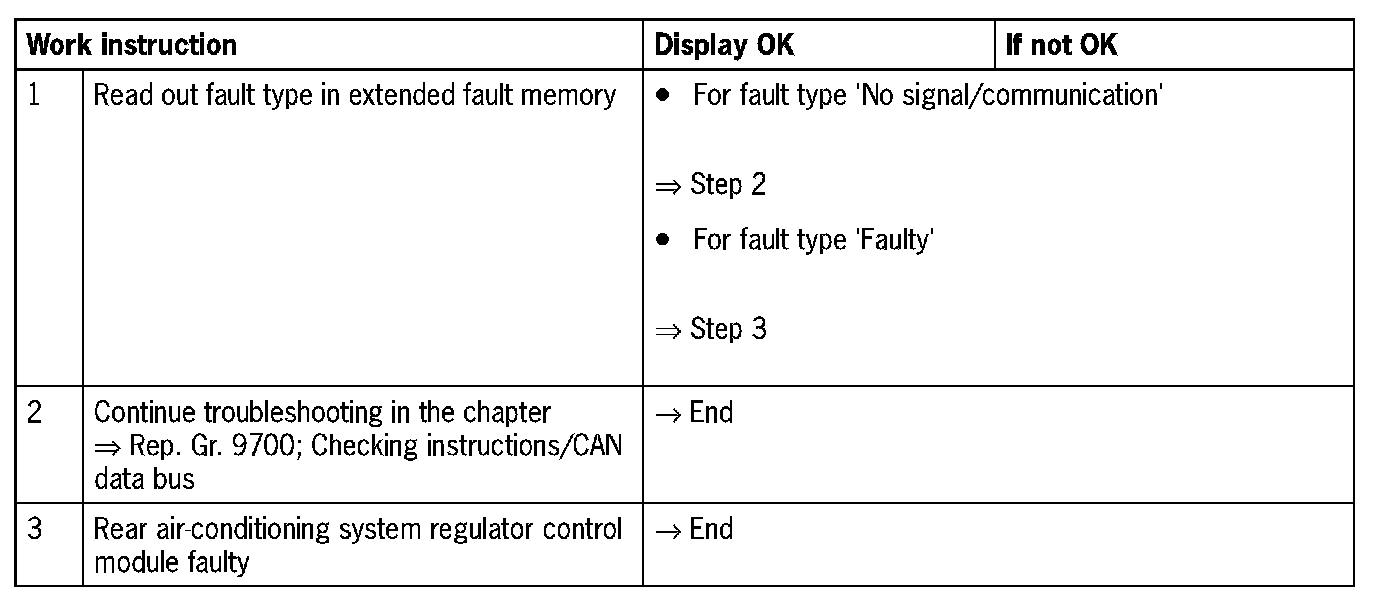

Diagnosis/troubleshooting
