Fault Code 0589

Fault code 0589

Passenger airbag ignition circuit, Step 1 (yellow-violet plug)

Conditions for diagnosis
- Ignition on
- Internal function test on airbag trigger unit

Possible cause of fault
- Upper limit exceeded (based on resistance of passenger airbag unit and wiring between airbag trigger unit and passenger airbag unit)
- Lower limit not reached (based on resistance of passenger airbag unit and wiring between airbag trigger unit and passenger airbag unit)
- Short circuit to positive
- Short circuit to ground
- Passenger airbag unit faulty
- Airbag trigger unit faulty

Affected pins
- Airbag trigger unit: Pin 37 and Pin 38

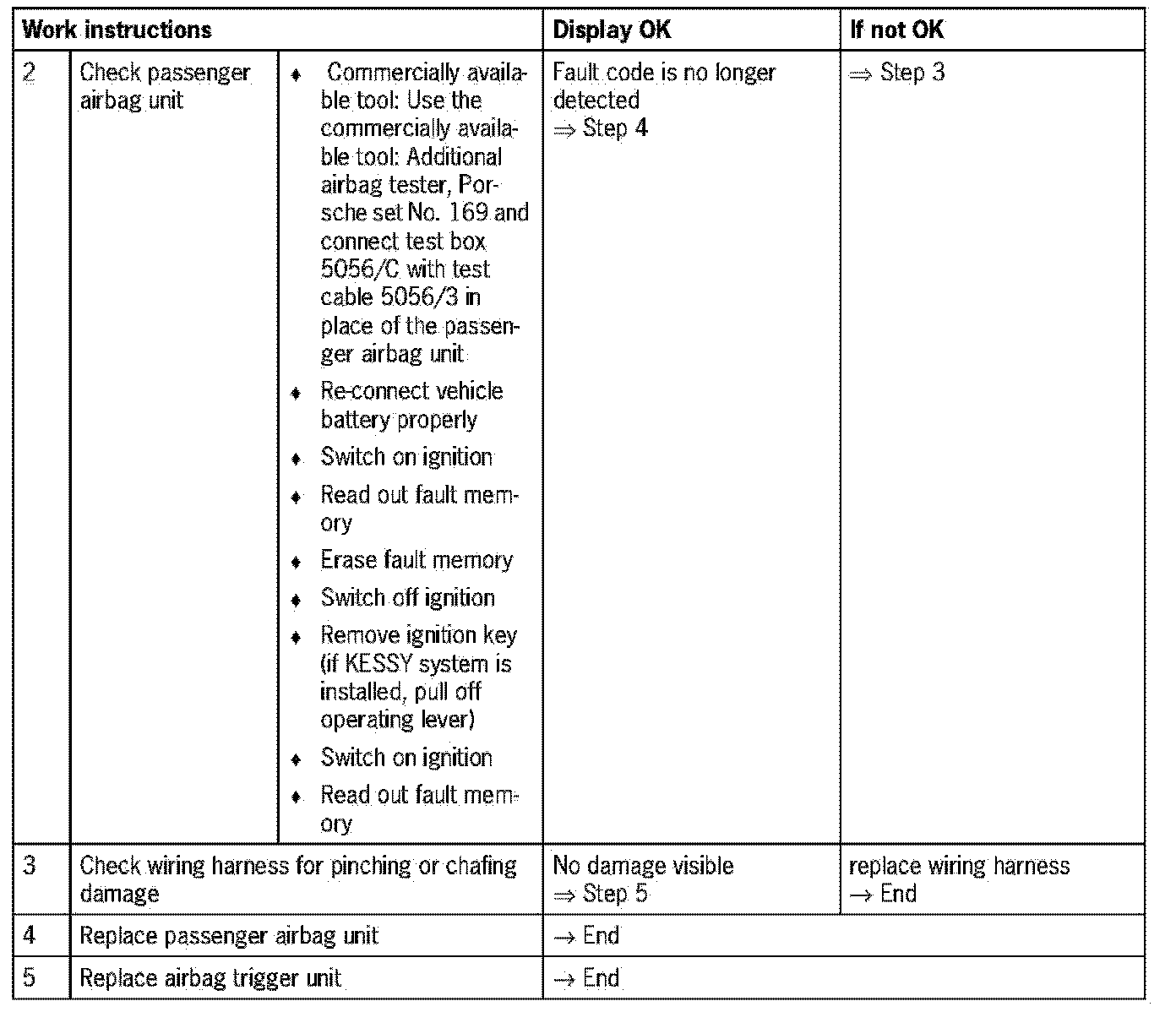

Diagnosis/troubleshooting

WARNING:
Risk of injury if vehicle is driven with special tools in place (commercially available tools included).
- Never drive with special tools or commercially available tools attached in place of the airbag units.

NOTE: Never disconnect plugs which are connected directly to airbag modules and belt tensioners because these have been connected with a defined contact pressure to prevent the plug from working loose in order to prevent malfunction during the life of the vehicle. The plug connections (mostly 3pm) which are intended for this purpose must be disconnected using an integrated short circuit bridge.

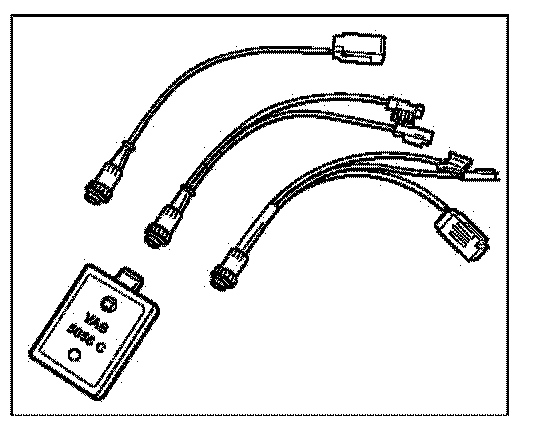

Additional airbag tester, Porsche set No 169
