Fault Code 0592

Fault code 0592

Passenger belt buckle switch

Conditions for diagnosis
- Ignition on
- Internal function test on airbag trigger unit

Possible cause of fault
- Short circuit to ground (with respect to wire from Pin 72 of airbag trigger unit and passenger belt buckle)
- Open circuit/short circuit to positive (with respect to wire from Pin 72 of airbag trigger unit and passenger belt buckle)
- Faulty (passenger belt buckle faulty)
- Airbag trigger unit faulty

Affected pins
- Airbag trigger unit: Pin 72
- Passenger belt buckle plug connection: Pin 1 and pin 2

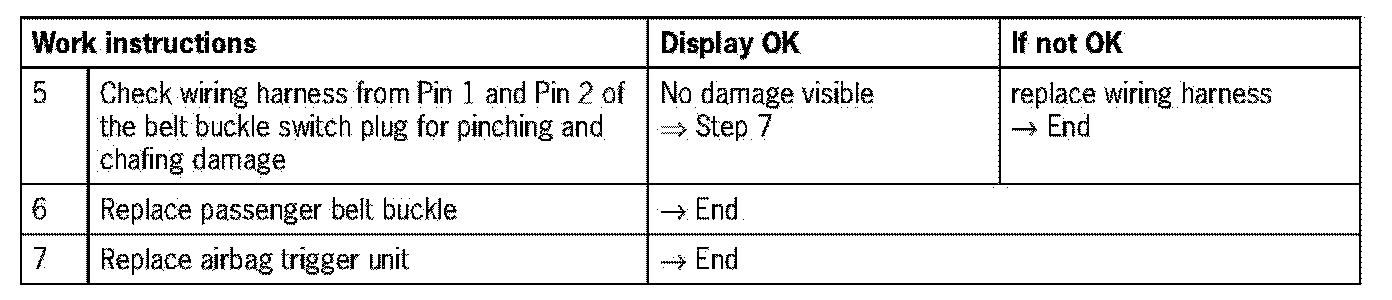

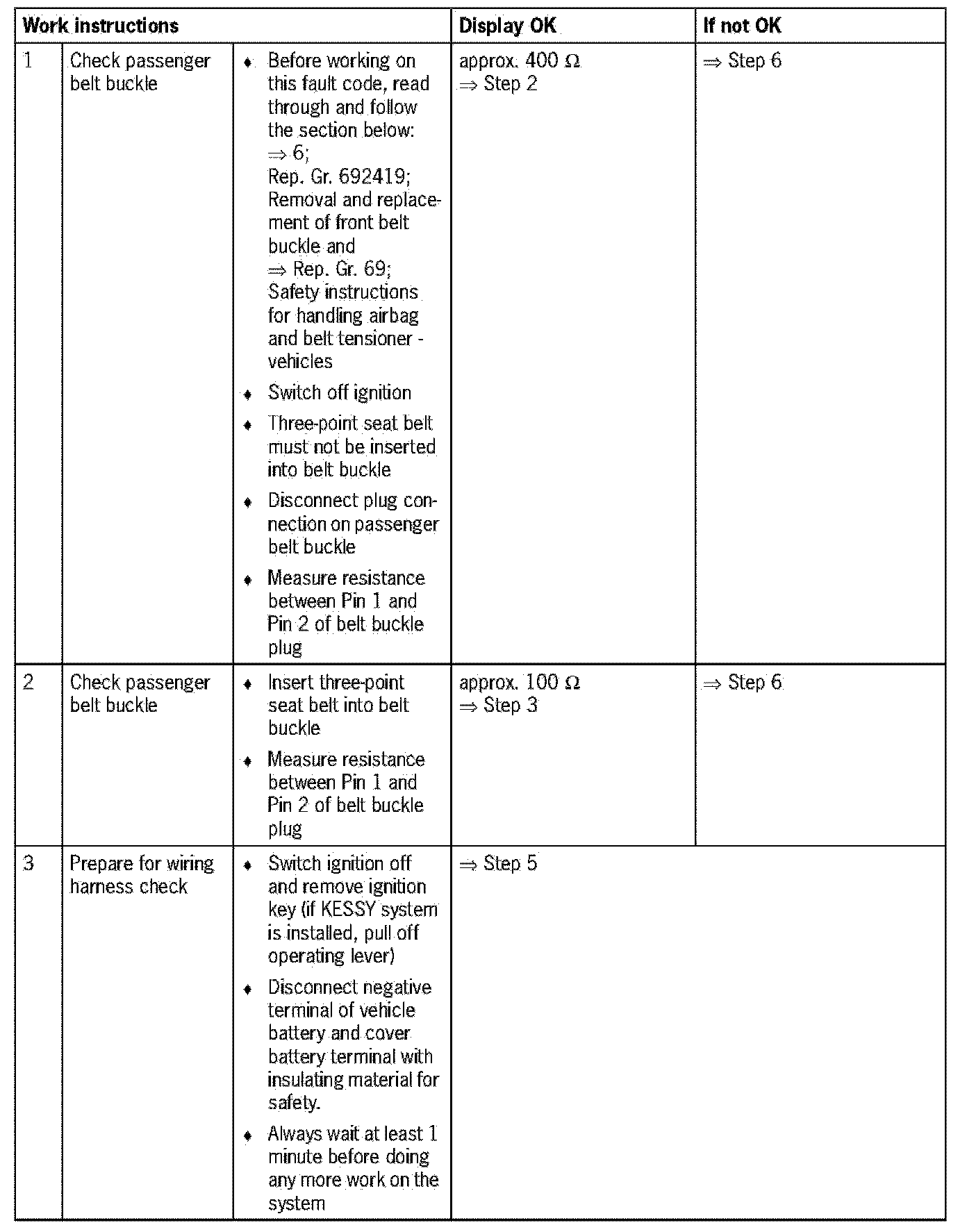

Diagnosis/troubleshooting

NOTE: The specified resistances relate to an ambient temperature of 20 °C
