Fault Code 0712

Fault code 0712

Right footwell flap servo motor

Diagnostic conditions
- Ignition on
- Battery voltage OK (11.4 to 14.5 V)
- Internal function test completed on air-conditioning system regulator control module

Possible causes of fault
- No or incorrect basic setting
- Short circuit to ground
- Open circuit/short circuit to B+
- Servo motor flap stiff
- Servo motor faulty
- Front air-conditioning system regulator faulty

Affected pins
Air-conditioning system regulator control module, front: Plugs B and E
- Plug B: Pin 14 'Footwell flap (feedback signal lead for right foot- well flap servo motor)'
- Plug B: Pin 19 'Footwell flap (servo motor for right footwell flap OPEN)'
- Plug B: Pin 20 'Footwell flap (servo motor for right footwell flap CLOSED)'
- Plug E: Pin 1 '5 V reference voltage'
- Plug E: Pin 8 'Ground signal'

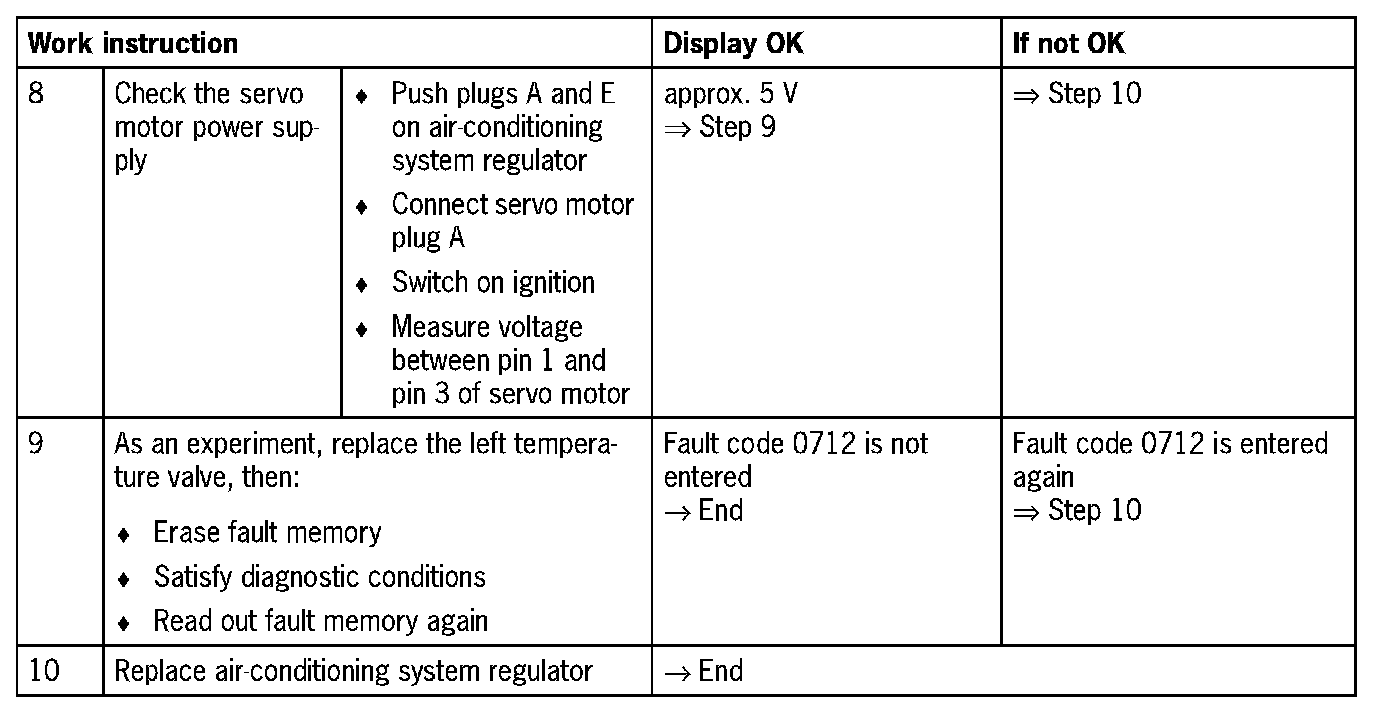

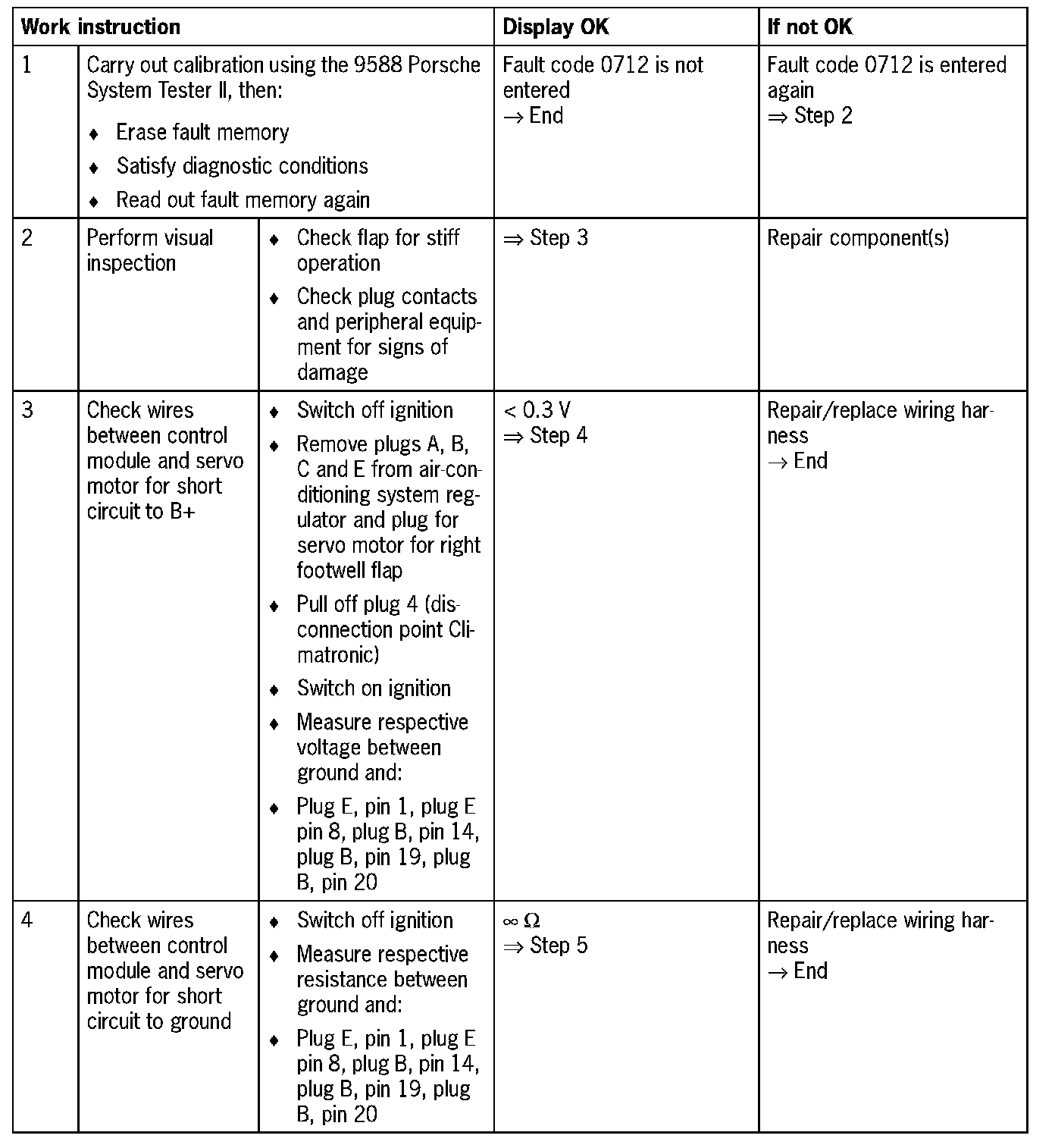

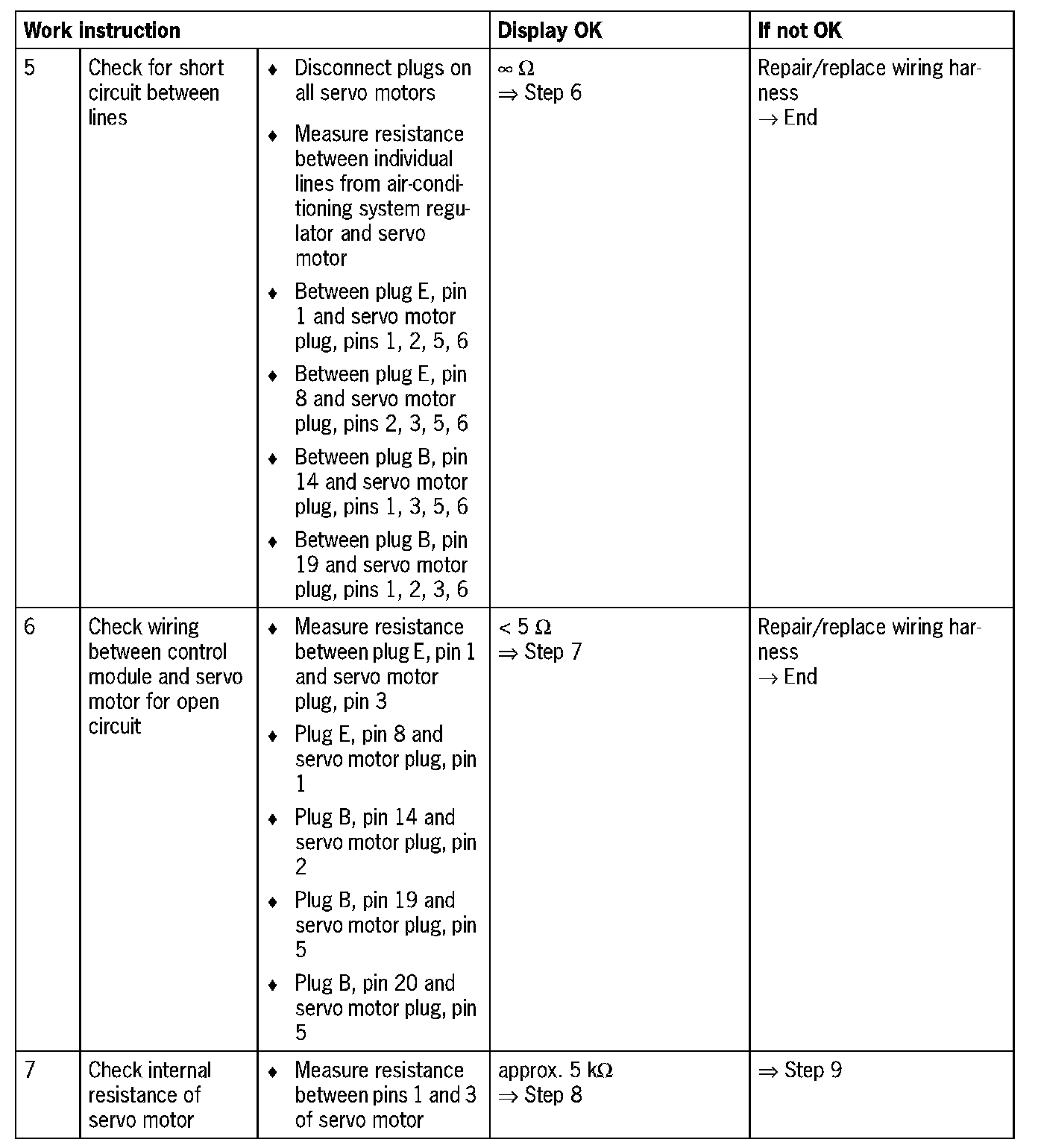

Diagnosis/troubleshooting
