Fault Code 0771

Fault code 0771

Fuel level sensor 1

Diagnostic conditions
- Ignition on
- Internal function test on instrument cluster

Possible cause of fault
- Short circuit to B+ or open circuit in wiring
- Short circuit to ground
- Cannot be checked now/Implausible signal

Affected pins
- Instrument cluster, connector A: 'Pin 5'

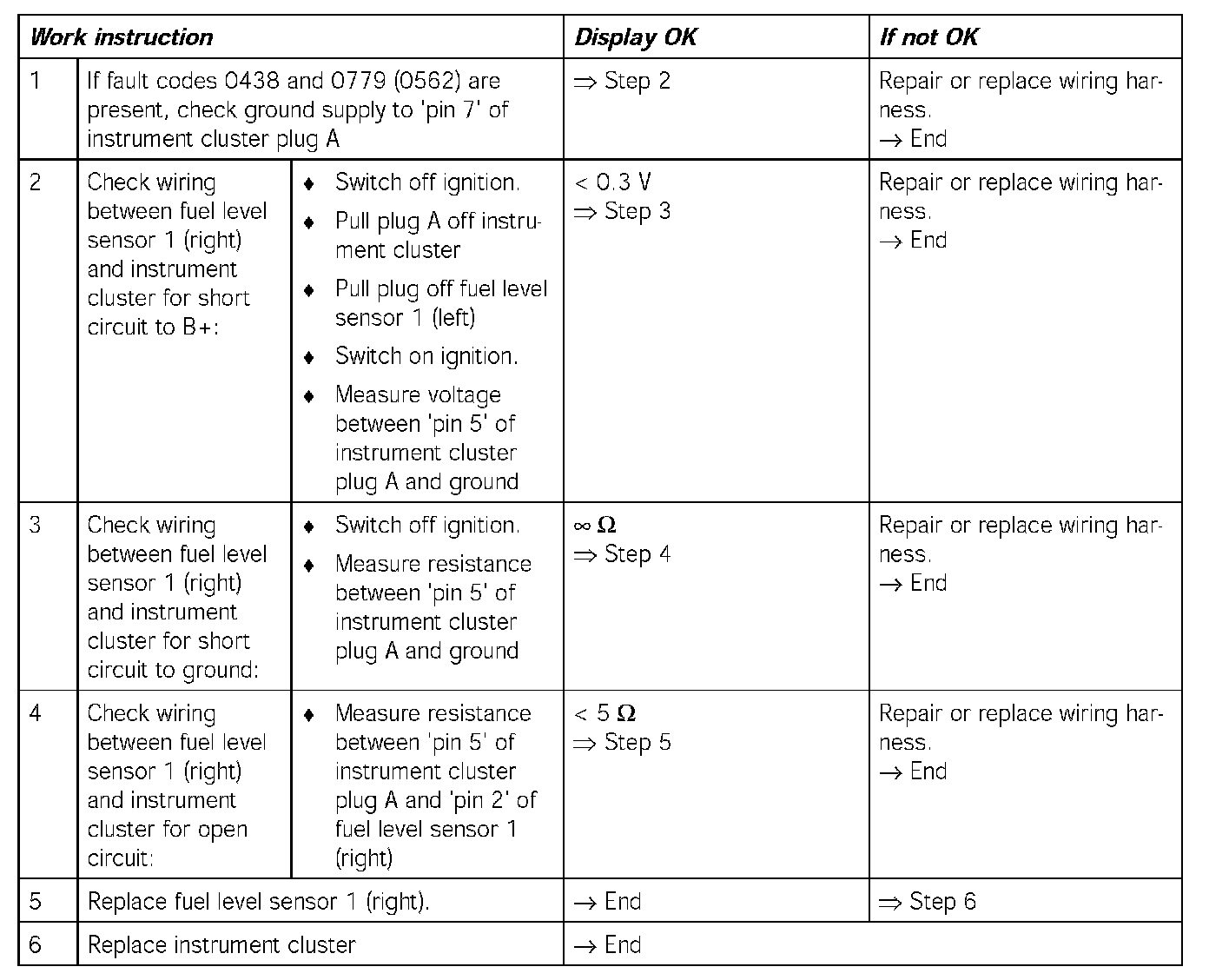

Diagnosis/troubleshooting
