Level Adjustment

Fault code 0778

Steering-angle sensor

CAUTION: The steering-angle sensor must always be initialised 'control lamp on' whenever the battery terminal is disconnected.

Diagnostic conditions
- Ignition on
- Internal level control module function test

Possible cause of fault
- Initialisation/calibration not performed (no display/no or incorrect basic setting/adaptation)
- Mechanical fault
- The signal received from the control module (level control) via the CAN drive does not correspond to the expected signal (implausible signal)
- CAN drive faulty (no signal/communication)
- Steering-angle sensor faulty

Affected pins
Level control module, plug A:
- Pin 61 'CAN drive (high)'
- Pin 81 'CAN drive (low)'

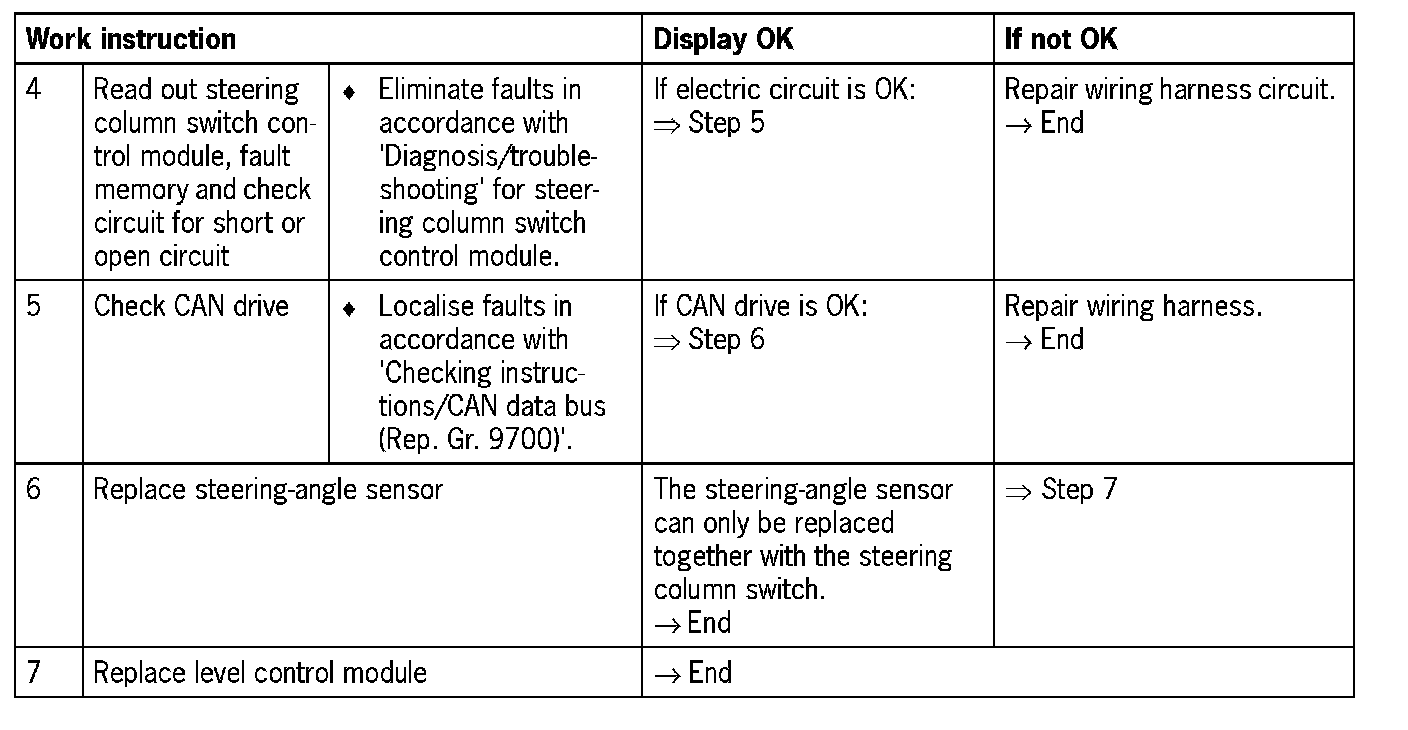

Diagnosis/troubleshooting

Initialising
The steering-angle sensor in Cayenne must be initialised after the following work is carried out:
- Whenever the power supply is interrupted (NRA control lamp on).
- The steering-angle sensor must be calibrated after all work on the running gear.

NOTE: Calibration of the steering-angle sensor must be performed on a measuring platform. First, the level control module must be coded successfully and the steering-angle sensor must be initialised. The steering-angle sensor must be calibrated after work has been carried out on the running gear in the area of the front axle.
