Transfer Box

Fault code 0778

Steering-angle sensor

Diagnostic conditions
- Ignition on
- Internal control module function test

Possible causes of fault
- No message from steering-angle sensor (no signal/communication)

Affected pins

Transfer box control module plug:
- Pin 11 'CAN drive (low)'
- Pin 42 'CAN drive (high)'

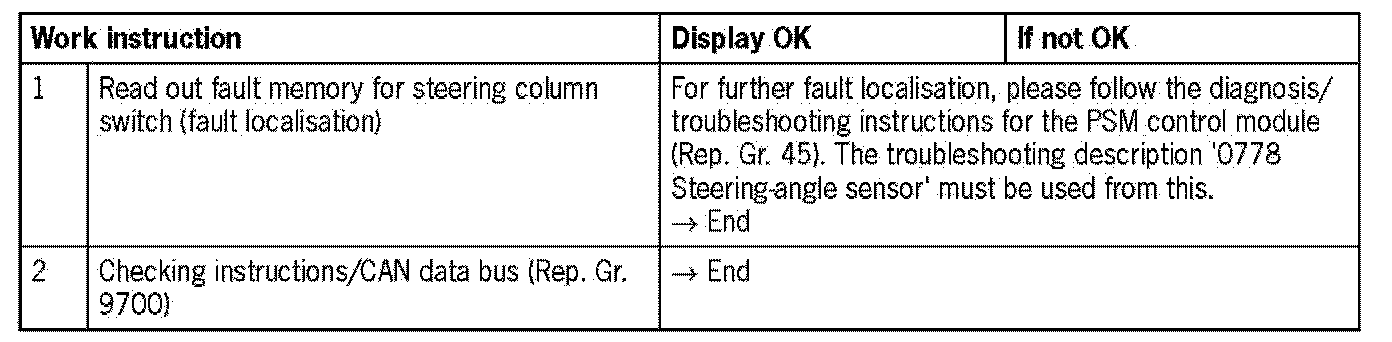

Diagnosis/troubleshooting VG 0101

NOTE: If there is no incoming signal/message via the CAN drive using several control modules, the CAN drive must be checked for open or short circuits. Refer to 'Checking instructions/CAN data bus'.
