Transverse Lock

Fault Code 0778

Steering-angle sensor

Diagnostic conditions
- Ignition on
- Transverse lock control unit internal function test

Possible causes of fault
- 'No Signal/communication': no message from steering-angle sensor

Affected pins
Transverse lock control unit plug:
- Pin 11 'CAN drive (low)'
- Pin 42 'CAN drive (high)'

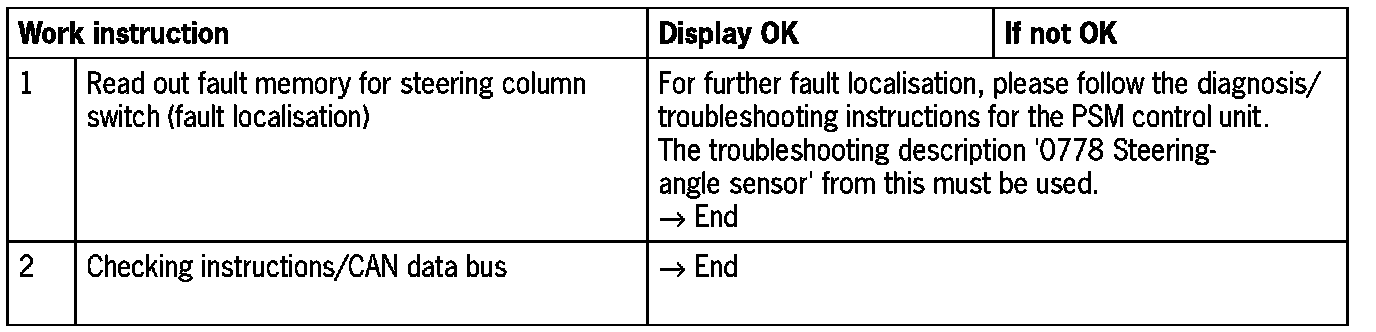

Diagnosis/troubleshooting

NOTE: If there is no incoming signal/message via the CAN drive when using several control units, the CAN drive must be checked for open or short circuits. Refer to 'Checking instructions/CAN data bus'.
