Level Adjustment

Fault code 0806

Spring strut valve, front right

Diagnostic conditions
- Ignition on
- Internal level control module function test

Possible cause of fault
- Short circuit to B+ in the wiring of pin 19 of the level control module
- Short circuit to ground in the wiring of pin 19 of the level control module
- Open circuit in the wiring of pin 19 of the level control module
- Spring strut valve faulty
- Level control module faulty

NOTE: If multiple valve faults (fault code 0805, 0807, 0808) or another relay fault (fault code 1399) are recorded, check the system's plug connections for correct contacts.

Affected pins
Level control module, plug A:
- Pin 19

Solenoid block, plug A:
- Pin 2

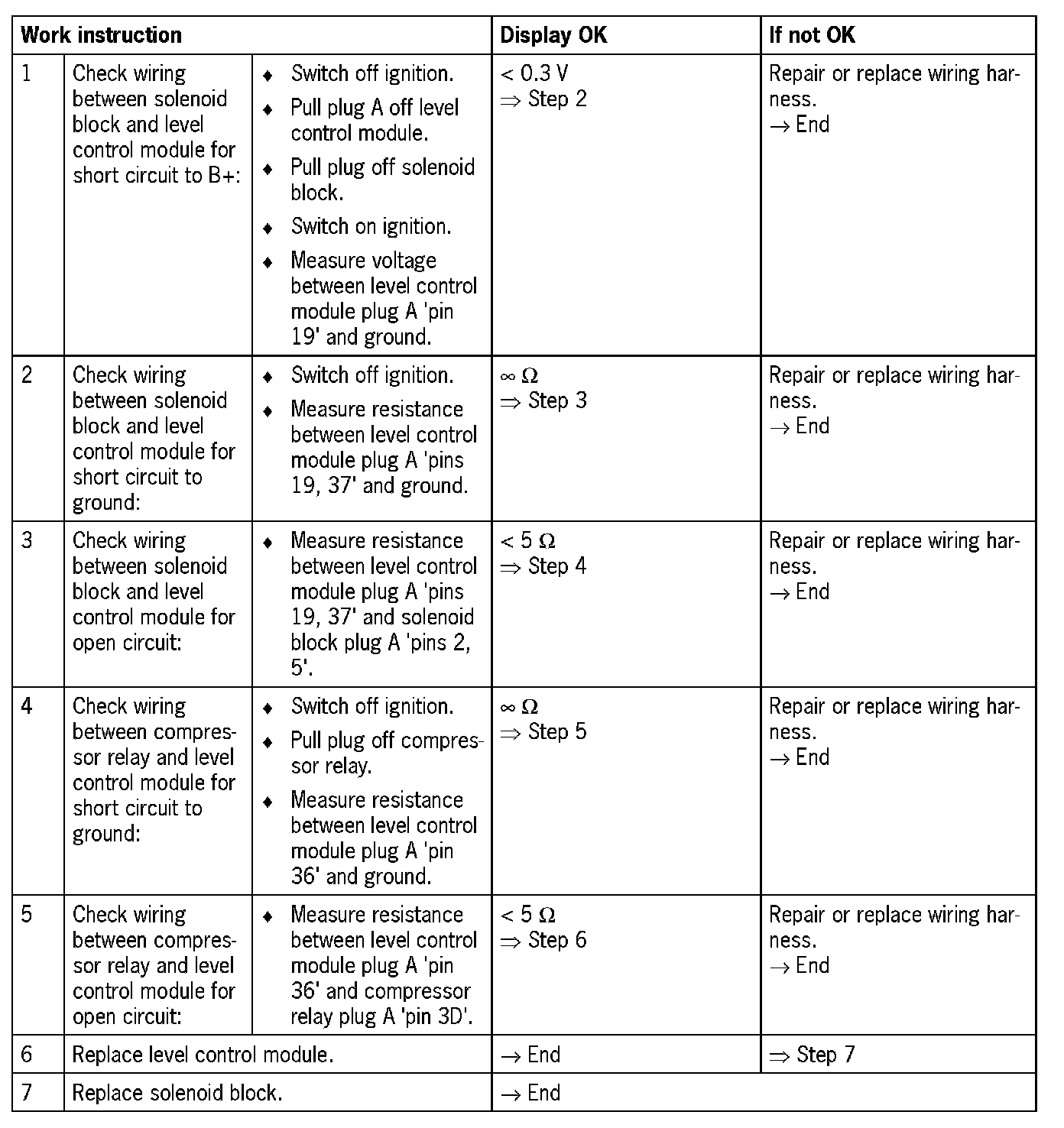

Diagnosis/troubleshooting
