Fault Code 0908

Fault code 0908

Wiper motor (with control module)

Diagnostic conditions
- Ignition on
- Internal gateway function test

Possible causes of fault
- No signal/communication (no signal from wiper motor on CAN Infotainment)

Affected pins
Instrument cluster, plug B:
- Pin 31 'CAN Infotainment (high)'
- Pin 32 'CAN Infotainment (low)'

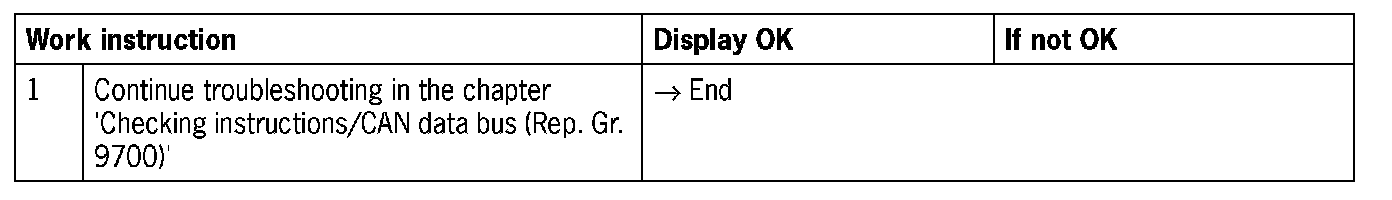

Diagnosis/troubleshooting
