Fault Code 0941
Fault code 0941Mirror tilting motor, driver's
NOTE: This fault was detected by the 'driver's door' control module.
Diagnostic conditions
- Ignition on
- Battery voltage OK (11.4 to 14.5 V)
- Internal function test on driver's door control module
- Fold driver's door mirror forward/back
Possible causes of fault
- Mirror-folding motor faulty
- Wiring faulty
Affected pins
Driver's door control module, plug B:
- Pin 1 'adjustment motor X/Y'
- Pin 9 'folding motor'

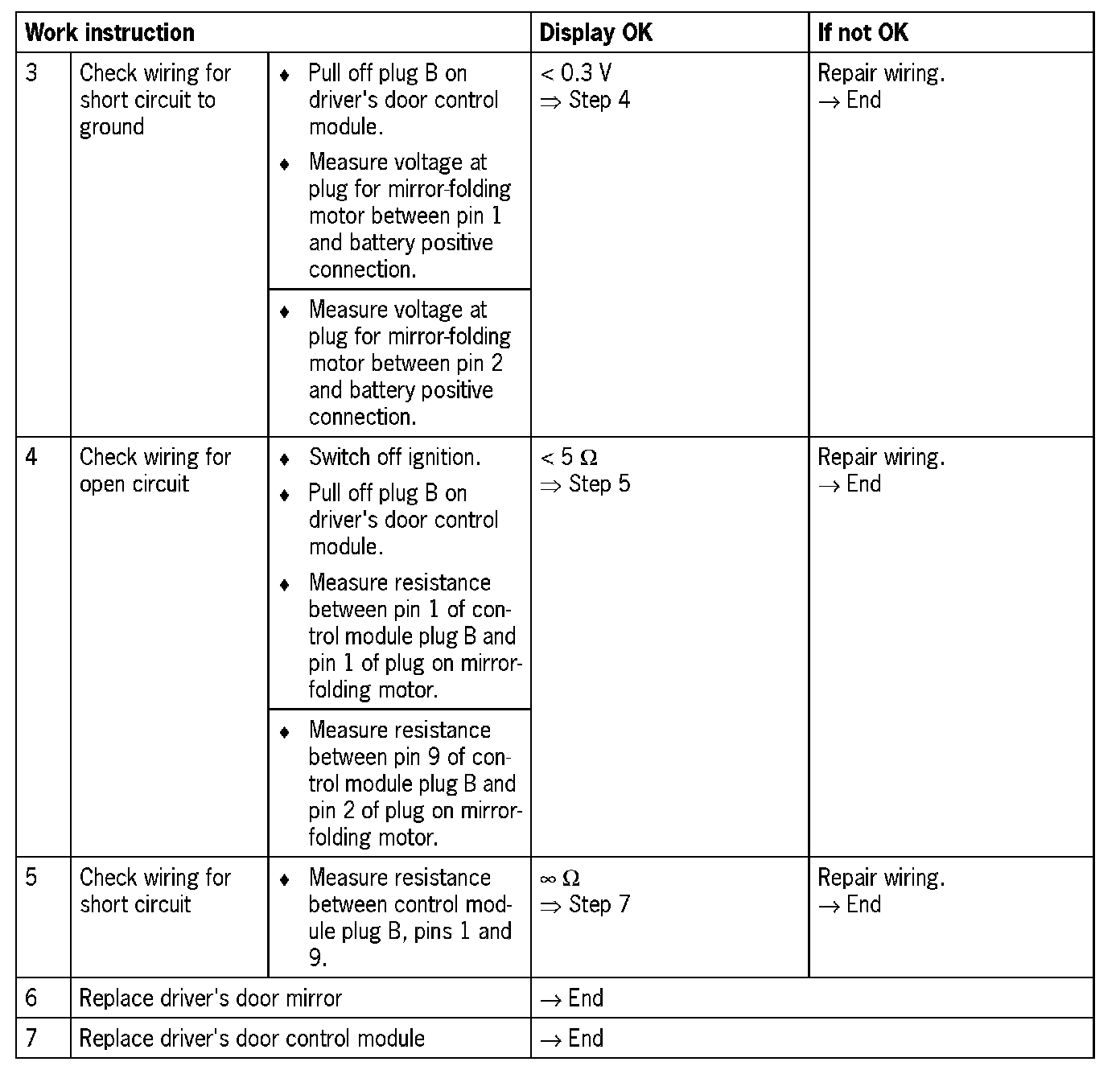

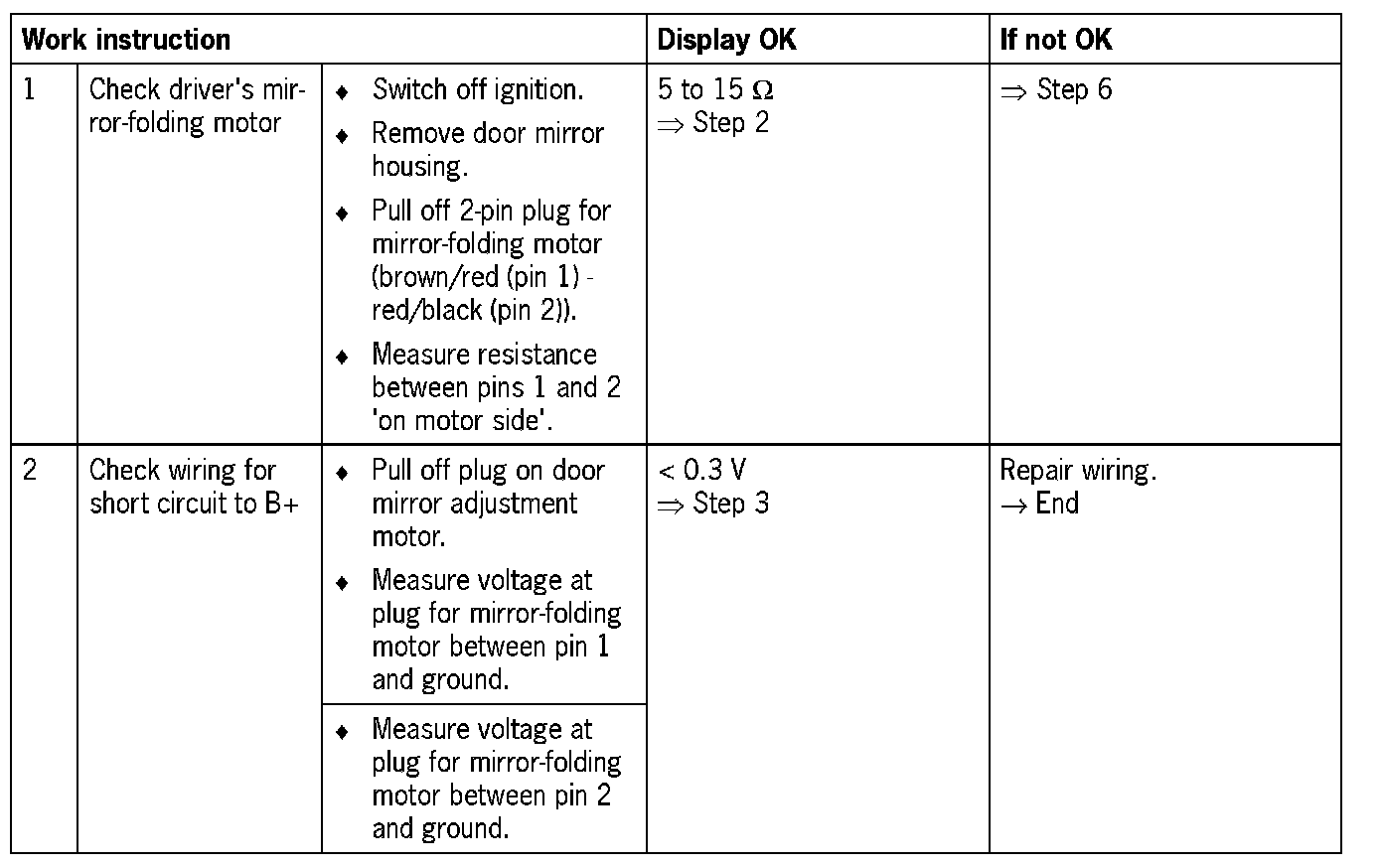

Diagnosis/troubleshooting
NOTE:
Visual inspection: In the next troubleshooting section, please check first that the affected pins on the driver's door control module plug connection are neither damaged nor corroded. The wiring and plugs of the affected components must also be checked for external damage and correct contacts. Repair damaged or corroded pins if possible, otherwise replace affected pins. Repair or replace damaged wires.
NOTE:
Sporadic faults: In the event of faults that occur sporadically, the wiring positions that are linked to moving parts on and in the vehicle must be checked for each system. Various statuses that can cause faults must be simulated with the help of the wiring diagram.
NOTE:
Battery voltage: A battery voltage of between 11.4 and 14.5 V is required for the following troubleshooting procedure. This must be checked and provided, if necessary. On the vehicle electrical system, the voltage to the fuse (input side) must be guaranteed.
NOTE: For the following test and diagnostic steps, the plug for the door mirror adjustment motor must also be removed as, by way of a cable connection, pin 1 of control module plug B is used both for mirror adjustment and mirror folding. If the adjustment motor plug is not removed, measurement errors may occur.
