Parkassist

Fault code 1044

Control unit (instrument cluster/gateway) coded incorrectly

Diagnostic conditions
- Ignition on
- ParkAssist control unit internal function test
- Internal function test on instrument cluster and gateway

Possible cause of fault
- Instrument cluster/gateway coded incorrectly

NOTE: This fault can occur if the instrument cluster/gateway does not detect the ParkAssist control unit

Affected pins
-

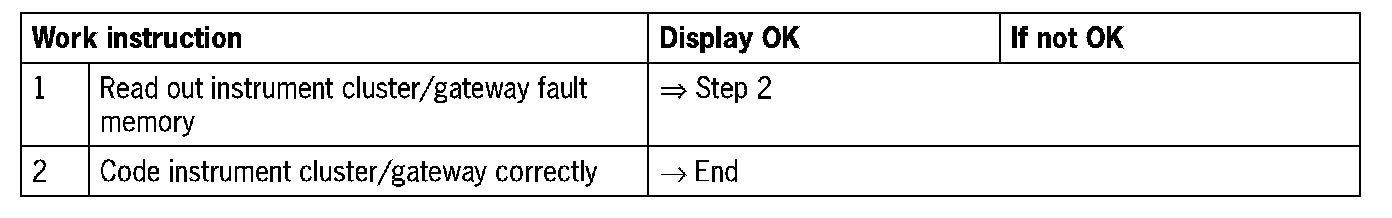

Diagnosis/troubleshooting
